Seat, front, backrest frame for BMW 7 Series G12 730Ld (2019)

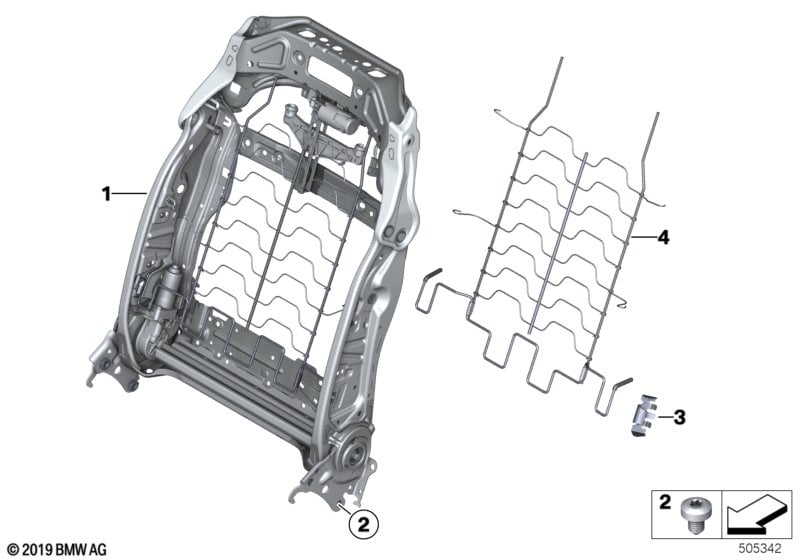

This Seat, front, backrest frame technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Executive Lounge Seating ONLY APPLIES TO DRIVER'S SIDE |
S4F4A=Yes |
|||||||||
| 01 | Backrest frame, comfort seat | 1 | 52107410472 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Executive Lounge Seating |
S456A=Yes S4F4A=No |
|||||||||
| 01 | Backrest frame, comfort seat | 2 | 52107410472 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Executive Lounge Seating |
S456A=No S4F4A=No |
|||||||||
| 01 | Backrest frame, electrical | 2 | 52107457276 | Shop at ECS Tuning | ||||||
| 02 | Countersunk screw | M10X16-8.8 SW | 8 | 07119908419 | Shop at ECS Tuning | |||||
| 03 | Set of fittings, backrest | 2 | 52107314219 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Massage function, driver / fr. passenger |
S456A=Yes S4T7A=No |
|||||||||
| 04 | Cushion pad for backrest | LORDOSE | 2 | 52107457279 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Executive Lounge Seating and Massage function, driver / fr. passenger |
S456A=Yes S4F4A=Yes S4T7A=No |
|||||||||
| 04 | Cushion pad for backrest | LORDOSE | 1 | 52107457279 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Executive Lounge Seating and Massage function, driver / fr. passenger |
S456A=Yes S4F4A=No S4T7A=No |
|||||||||
| 04 | Cushion pad for backrest | LORDOSE | 2 | 52107457279 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat with memory and Executive Lounge Seating and Massage function, driver / fr. passenger |
S456A=Yes S4F4A=Yes S4T7A=Yes |
|||||||||
| 04 | Cushion pad for backrest | MASSAGE | 1 | 52107410476 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Executive Lounge Seating and Massage function, driver / fr. passenger |
S456A=Yes S4F4A=No S4T7A=Yes |
|||||||||
| 04 | Cushion pad for backrest | MASSAGE | 2 | 52107410476 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
