Seat, rear, electrical and motors for BMW 7 Series G12 730LdX (2018)

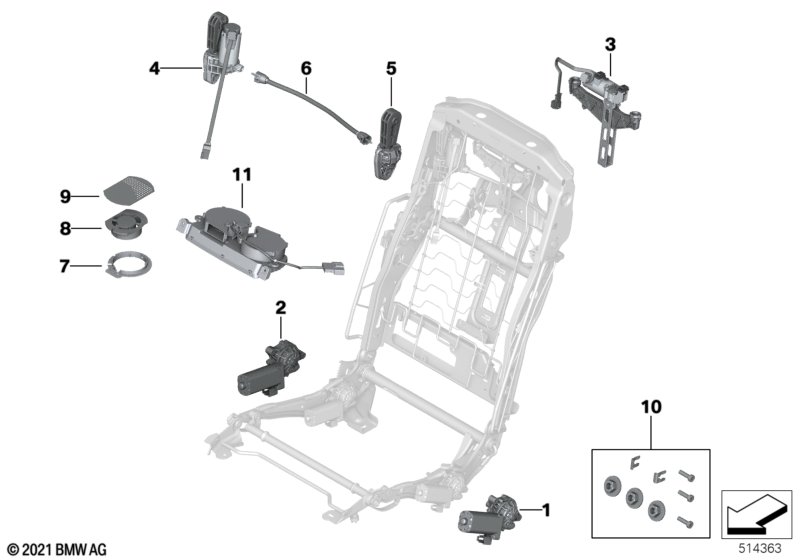

This Seat, rear, electrical and motors technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive, longitudinal seat adjustment left | 1 | 52107454063 | Shop at ECS Tuning | ||||||
| 01 | Drive, longitudinal seat adjustment rght | 1 | 52107454064 | Shop at ECS Tuning | ||||||
| 02 | Drive unit, backrest angle adjust., left | 1 | 52107454065 | Shop at ECS Tuning | ||||||
| 02 | Drive unit, backrest angle adjst., right | 1 | 52107454066 | Shop at ECS Tuning | ||||||
| 03 | Drive, vertical headrest adjustment | 2 | 52107454062 | Shop at ECS Tuning | ||||||
| 04 | Actuator f upper backrest adjustment | 2 | 52107454067 | Shop at ECS Tuning | ||||||
| 05 | Gear unit, backrest head adj. | 2 | 52107314213 | Shop at ECS Tuning | ||||||
| 06 | Set of flexible shafts | 2 | 52107454068 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear |
S454A=Yes |
|||||||||
| 07 | Insert for ventilator | 16 | 52107068075 | $1.14 | Shop at ECS Tuning | |||||
| 08 | Fan | ALU KABEL LANG | 16 | 52109490353 | Shop at ECS Tuning | |||||
| 09 | Grill insert | 8 | 52207062867 | $8.52 | Shop at ECS Tuning | |||||
| 10 | set of fittings for seat drive | 2 | 52107454072 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear |
S454A=Yes |
|||||||||
| 11 | Fan for A/C box | 2 | 52207368576 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
