Seat, rear, upholstery and cover for BMW MINI Cabrio F57 One (2021)

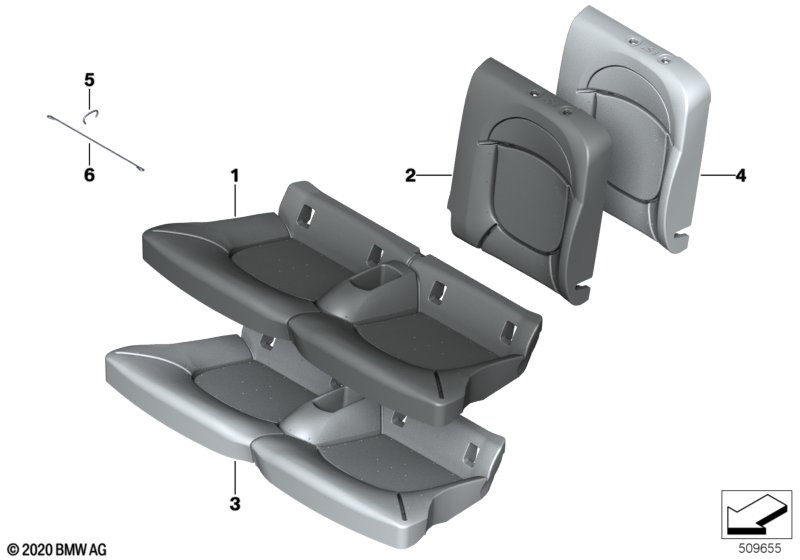

This Seat, rear, upholstery and cover technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric/leatherette Bl.Pearl/carbon-black |
KDE1=Yes |
|||||||||
| 01 | Seat cover cloth | KDE1 CARB.BLACK | 1 | 52207394284 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather cross punch/dark truffle |
NENX=Yes |
|||||||||
| 01 | Seat cover leather | NENX D. TRUFFLE | 1 | 52207939590 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather Diamond/Carbon Black |
FYE1=Yes |
|||||||||
| 01 | Cloth/leather seat cover | FYE1 CARB.BLACK | 1 | 52207939942 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours Leather Lounge/Sidewk Anthra. |
TYM8=Yes |
|||||||||
| 01 | Seat cover leather | SIDEWALK ANTHR. | 1 | 52209475785 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Imit. leather"Leatherette"/carbon-black |
K9E1=Yes |
|||||||||
| 01 | Seat cover vinyl | K9E1 CARB.BLACK | 1 | 52207394272 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Firework/Carbon Black |
BGE1=Yes |
|||||||||
| 01 | Seat cover cloth | BGE1 CARB.BLACK | 1 | 52207394267 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather Diamond/satellite-gray |
FYGK=Yes |
|||||||||
| 01 | Cloth/leather seat cover | FYGK SAT. GREY | 1 | 52207394311 | Shop at ECS Tuning | |||||
| For vehicles with Leather Chester/malt-brown |
NYMJ=Yes |
|||||||||
| 01 | Seat cover leather | NYMJ MALT BROWN | 1 | 52207939586 | Shop at ECS Tuning | |||||
| For vehicles with Leather 'Lounge/satellite-gray' |
T9GK=Yes |
|||||||||
| 01 | Seat cover leather | T9GK SAT. GREY | 1 | 52207939578 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours leather Lounge/carbon-black Special series 'Yours' |
TYE1=Yes |
|||||||||
| 01 | Seat cover leather | TYE1 CARB.BLACK | 1 | 52207398501 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Cross punch / carbon black |
NEE1=Yes |
|||||||||
| 01 | Seat cover leather | NEE1 CARB.BLACK | 1 | 52207939589 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth |
BZE1=Yes DAE1=Yes |
|||||||||
| 01 | Seat cover cloth | BZE1 DAE1 | 1 | 52207394279 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leatherette Bl.Pearl/carbon-black |
KDE1=Yes |
|||||||||
| 02 | Cover backrest cloth left | KDE1 CARB.BLACK | 1 | 52207394285 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest cloth right | KDE1 CARB.BLACK | 1 | 52207394286 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather cross punch/dark truffle |
NENX=Yes |
|||||||||
| 02 | Cover backrest leather left | NENX D. TRUFFLE | 1 | 52207939593 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | NENX D. TRUFFLE | 1 | 52207939594 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather Diamond/Carbon Black |
FYE1=Yes |
|||||||||
| 02 | Right cloth/leather backrest cover | FYE1 CARB.BLACK | 1 | 52207939582 | Shop at ECS Tuning | |||||
| 02 | Left cloth/leather backrest cover | FYE1 CARB.BLACK | 1 | 52207939581 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours Leather Lounge/Sidewk Anthra. |
TYM8=Yes |
|||||||||
| 02 | Cover backrest leather left | SIDEWALK ANTHR. | 1 | 52209475787 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | SIDEWALK ANTHR. | 1 | 52209475788 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Imit. leather"Leatherette"/carbon-black |
K9E1=Yes |
|||||||||
| 02 | Cover backrest vinyl left | K9E1 CARB.BLACK | 1 | 52207394273 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest vinyl right | K9E1 CARB.BLACK | 1 | 52207394274 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Firework/Carbon Black |
BGE1=Yes |
|||||||||
| 02 | Cover backrest cloth left | BGE1 CARB.BLACK | 1 | 52207394268 | Shop at ECS Tuning | |||||
| 02 | Cover backrest cloth right | BGE1 CARB.BLACK | 1 | 52207394269 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather Diamond/satellite-gray |
FYGK=Yes |
|||||||||
| 02 | Left cloth/leather backrest cover | FYGK SAT. GREY | 1 | 52207394312 | NoS | Shop at ECS Tuning | ||||
| 02 | Right cloth/leather backrest cover | FYGK SAT. GREY | 1 | 52207394313 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Chester/malt-brown |
NYMJ=Yes |
|||||||||
| 02 | Cover backrest leather left | NYMJ MALT BROWN | 1 | 52207939587 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | NYMJ MALT BROWN | 1 | 52207939588 | Shop at ECS Tuning | |||||
| For vehicles with Leather 'Lounge/satellite-gray' |
T9GK=Yes |
|||||||||
| 02 | Cover backrest leather left | T9GK SAT. GREY | 1 | 52207939579 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | T9GK SAT. GREY | 1 | 52207939580 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours leather Lounge/carbon-black Special series 'Yours' |
TYE1=Yes |
|||||||||
| 02 | Cover backrest leather left | TYE1 CARB.BLACK | 1 | 52207398505 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | TYE1 CARB.BLACK | 1 | 52207398506 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Cross punch / carbon black |
NEE1=Yes |
|||||||||
| 02 | Cover backrest leather left | NEE1 CARB.BLACK | 1 | 52207939591 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | NEE1 CARB.BLACK | 1 | 52207939592 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, chester/satellite gray |
NYGK=Yes |
|||||||||
| 02 | Cover backrest leather left | SAT. GREY | 1 | 52209459021 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | SAT. GREY | 1 | 52209459022 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Dinamica/leather in Carbon Black |
GSE1=Yes |
|||||||||
| 02 | Seat cover 'Dinamica' left | JCW CARB.BLACK | 1 | 52209471329 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest cover 'Dinamica' right | JCW CARB.BLACK | 1 | 52209471330 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth |
BZE1=Yes DAE1=Yes |
|||||||||
| 02 | Cover backrest cloth right | BZE1 DAE1 | 1 | 52207394280 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest cloth left | BZE1 DAE1 | 1 | 52207394281 | NoS | Shop at ECS Tuning | ||||
| 03 | Foam section, seat | 1 | 52207361531 | Shop at ECS Tuning | ||||||
| 04 | Foam padding, backrest, left | 1 | 52207361533 | NoS | Shop at ECS Tuning | |||||
| 04 | Foam padding, backrest, right | 1 | 52207361534 | NoS | Shop at ECS Tuning | |||||
| 05 | Clamp | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Wire-strap | L=1800MM | 1 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
