Rear seat head restraint for BMW MINI Cabrio F57 LCI JCW (2024)

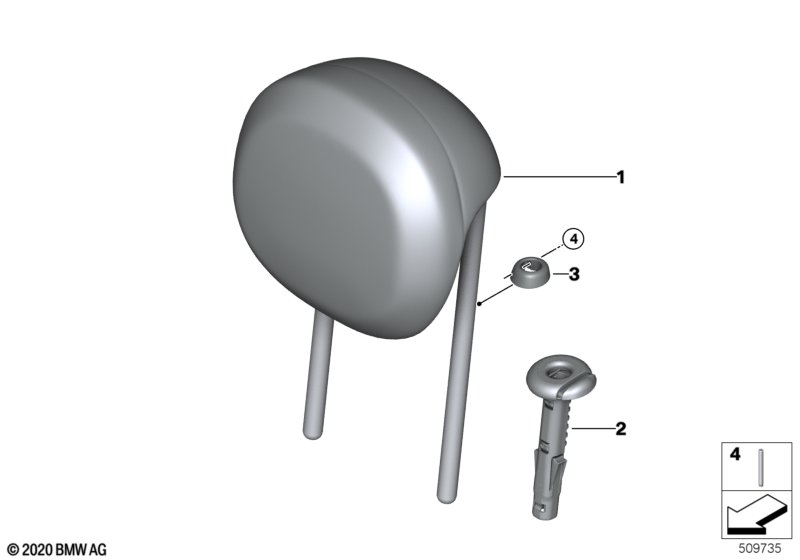

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Chester/malt-brown |
NYMJ=Yes |
|||||||||
| 01 | Headrest leather | NYMJ MALT BROWN | 2 | 52207939740 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours leather Lounge/carbon-black Special series 'Yours' |
TYE1=Yes |
|||||||||
| 01 | Headrest leather | TYE1 CARB.BLACK | 2 | 52207457260 | Shop at ECS Tuning | |||||
| For vehicles with Dinamica/leather in Carbon Black |
GSE1=Yes |
|||||||||
| 01 | Head restraint Dinamica | JCW, GSE1 | 2 | 52207457263 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leatherette Bl.Pearl/carbon-black |
KDE1=Yes |
|||||||||
| 01 | Head rest cloth | KDE1 CARB.BLACK | 2 | 52207457255 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Cross punch / carbon black |
NEE1=Yes |
|||||||||
| 01 | Headrest leather | NEE1 CARB.BLACK | 2 | 11/2016 | 52207483620 | NoS | Shop at ECS Tuning | |||
| For vehicles with Imit. leather"Leatherette"/carbon-black |
K9E1=Yes |
|||||||||
| 01 | Headrest imitation leather | K9E1 CARB.BLACK | 2 | 52207457253 | Shop at ECS Tuning | |||||
| For vehicles with Leather, chester/satellite gray or Leather 'Lounge/satellite-gray' |
NYGK=Yes T9GK=Yes |
|||||||||
| 01 | Headrest leather | T9GK SAT. GREY | 2 | 52207939737 | Shop at ECS Tuning | |||||
| For vehicles with Cloth/leather comb.Bl.P./light chequered or Cloth/Leatheretteko.Light Chequered(CB) |
KDG2=Yes KDJK=Yes |
|||||||||
| 01 | Head rest, cloth and imitation leather | LIGHT CHEQUERED | 2 | 52205A09150 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth |
BZE1=Yes DAE1=Yes |
|||||||||
| 01 | Head rest cloth | BZE1 CARB.BLACK | 2 | 52207457254 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Firework/Carbon Black or Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth or Dinamica/leather in Carbon Black or Imit. leather"Leatherette"/carbon-black or Fabric/leatherette Bl.Pearl/carbon-black or Cloth/leather comb.Bl.P./light chequered or Cloth/Leatheretteko.Light Chequered(CB) or Cloth, Blue Pearl/Light Gray or Leather, Cross punch / carbon black or Leather, chester/satellite gray or Leather Chester/indigo blue or Leather Chester / British Oak or Leather Chester/malt-brown or MINI Yours leather Lounge/carbon-black or MINI LOUNGE 60 Years dark maroon or MINI Yours Leather Lounge/Sage Green or MINI Yours Leather Lounge/Sidewk Anthra. |
BGE1=Yes BZE1=Yes DAE1=Yes GSE1=Yes K9E1=Yes KDE1=Yes KDG2=Yes KDJK=Yes KDT8=Yes NEE1=Yes NYGK=Yes NYIB=Yes NYM9=Yes NYMJ=Yes TYE1=Yes TYIH=Yes TYJE=Yes TYM8=Yes |
|||||||||
| 02 | Guide, headrest | 2 | 52207368448 | Shop at ECS Tuning | ||||||
| 02 | Guide, headrest, lockable | 2 | 52207368640 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
