Seat, front, seat frame for BMW 5 Series G30 LCI 530iX (2022)

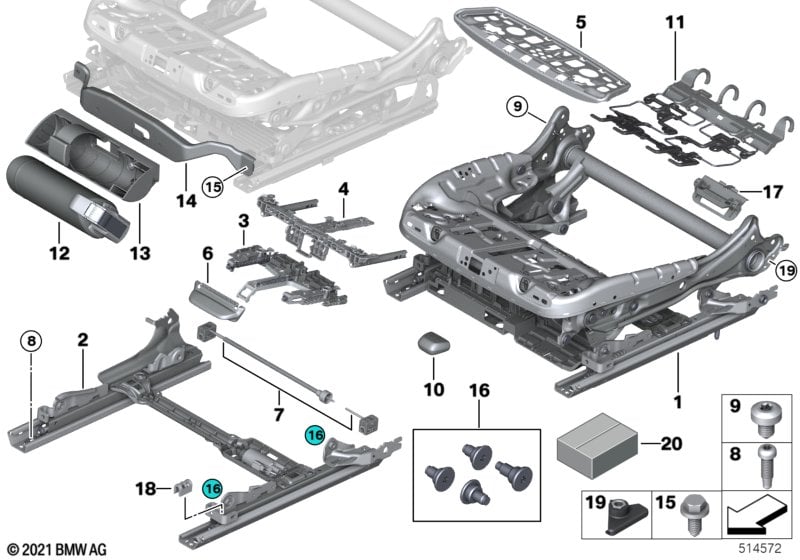

This Seat, front, seat frame technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Comfort seat with memory and M multifunction seat |
S456A=Yes S4MAA=Yes |
|||||||||
| 01 | Seat frame, comfort seat, left | 1 | 52107367545 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, comfort seat, right | 1 | 52107367546 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and M multifunction seat |
S456A=Yes S4MAA=No |
|||||||||
| 01 | Seat frame, comfort seat, left | 1 | 52107367545 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, comfort seat, right | 1 | 52107367546 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and M multifunction seat |
S456A=No S4MAA=Yes |
|||||||||
| 01 | Seat frame, comfort seat, left | 1 | 52107367545 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, comfort seat, right | 1 | 52107367546 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=No S459A=Yes S4MAA=No |
|||||||||
| 01 | Seat frame, electr. left | 1 | 52107363143 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, electr. right | 1 | 52107386554 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and Sports seat and M multifunction seat |
S456A=No S459A=No S481A=No S4MAA=No |
|||||||||
| 01 | Seat frame, semi-electric, left | 1 | 52107386547 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, semi-electric, right | 1 | 52107386548 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory |
S456A=No S459A=No |
|||||||||
| 02 | Seat rail left | 1 | 52107470411 | Shop at ECS Tuning | ||||||
| 02 | Seat rail right | 1 | 52107470412 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Sports seat and M multifunction seat |
S456A=No S481A=Yes S4MAA=No |
|||||||||
| 03 | Mechanism, thigh bolster, lower | 1 | 52107424507 | Shop at ECS Tuning | ||||||
| 04 | Mechanism, thigh bolster, upper | 1 | 52107424508 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Sports seat and M multifunction seat |
S456A=Yes S481A=Yes S4MAA=No |
|||||||||
| 05 | Carrier thigh support | 1 | 52107299673 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Sports seat and M multifunction seat |
S456A=Yes S481A=No S4MAA=No |
|||||||||
| 05 | Carrier thigh support | 1 | 52107299673 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Sports seat and M multifunction seat |
S456A=No S481A=Yes S4MAA=No |
|||||||||
| 05 | Carrier thigh support | 1 | 52107299673 | Shop at ECS Tuning | ||||||
| 06 | Handle for thigh bolster | 1 | 52107317461 | Shop at ECS Tuning | ||||||
| 07 | Set of flexible shafts | 2 | 52107314203 | Shop at ECS Tuning | ||||||
| 08 | Fillister-head screw | M10X28 | 8 | 07149321690 | Shop at ECS Tuning | |||||
| 09 | Countersunk screw | M10X16-8.8 SW | 8 | 07119908419 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=No S459A=No S4MAA=No |
|||||||||
| 10 | Handle, seat fore-aft adjustment | 2 | 52107378710 | Shop at ECS Tuning | ||||||
| For vehicles with Fire extinguisher and Comfort seat with memory and Seat adjuster, electric, with memory |
S421A=Yes S456A=Yes S459A=Yes |
|||||||||
| 12 | Fire extinguisher | 1 | 52109496288 | Shop at ECS Tuning | ||||||
| For vehicles with Fire extinguisher and Comfort seat with memory and Seat adjuster, electric, with memory |
S421A=Yes S456A=Yes S459A=No |
|||||||||
| 12 | Fire extinguisher | 1 | 52109496288 | Shop at ECS Tuning | ||||||
| For vehicles with Fire extinguisher and Comfort seat with memory and Seat adjuster, electric, with memory |
S421A=Yes S456A=No S459A=Yes |
|||||||||
| 12 | Fire extinguisher | 1 | 52109496288 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fire extinguisher and Comfort seat with memory and Seat adjuster, electric, with memory |
S421A=Yes S456A=Yes S459A=Yes |
|||||||||
| 14 | Mount for fire extinguisher | 1 | 52109496286 | Shop at ECS Tuning | ||||||
| For vehicles with Fire extinguisher and Comfort seat with memory and Seat adjuster, electric, with memory |
S421A=Yes S456A=Yes S459A=No |
|||||||||
| 14 | Mount for fire extinguisher | 1 | 52109496286 | Shop at ECS Tuning | ||||||
| For vehicles with Fire extinguisher and Comfort seat with memory and Seat adjuster, electric, with memory |
S421A=Yes S456A=No S459A=Yes |
|||||||||
| 14 | Mount for fire extinguisher | 1 | 52109496286 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fire extinguisher and Comfort seat with memory and Seat adjuster, electric, with memory |
S421A=Yes S456A=Yes S459A=Yes |
|||||||||
| 15 | Hex bolt with washer | M8X18 | 1 | 07147279964 | Shop at ECS Tuning | |||||
| For vehicles with Fire extinguisher and Comfort seat with memory and Seat adjuster, electric, with memory |
S421A=Yes S456A=Yes S459A=No |
|||||||||
| 15 | Hex bolt with washer | M8X18 | 1 | 07147279964 | Shop at ECS Tuning | |||||
| For vehicles with Fire extinguisher and Comfort seat with memory and Seat adjuster, electric, with memory |
S421A=Yes S456A=No S459A=Yes |
|||||||||
| 15 | Hex bolt with washer | M8X18 | 1 | 07147279964 | Shop at ECS Tuning | |||||
| 16 | Set of screws | 1 | 52107474985 | NoS | Shop at ECS Tuning | |||||
| 19 | Clip nut | 1 | 52106993532 | NoS | Shop at ECS Tuning | |||||
| 20 | Set spare parts rocking chair | 1 | 52105A13770 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 LCI 530iX Seat, front, seat frame?
- This technical diagram illustrates the Seat, front, seat frame within the Seats group for the 5 Series G30 LCI 530iX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Seat frame, comfort seat, left (Part #52107367545).
- Which models use the hardware listed in this Seat, front, seat frame?
- The hardware and components featured in the Seat, front, seat frame are specific to the 5 Series G30 LCI 530iX produced during 2022. These technical specifications ensure that parts like the Seat frame, comfort seat, left (52107367545) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, front, seat frame assembly?
- Each item in the Seat, front, seat frame corresponds to the numbered list below the illustration. For the 5 Series G30 LCI 530iX, you can identify the Seat frame, comfort seat, left by locating its position on the schematic, which then links to the official BMW part number 52107367545 for the Seats section.
