Seat, front, electrical and motors for BMW 5 Series G30 520d (2019)

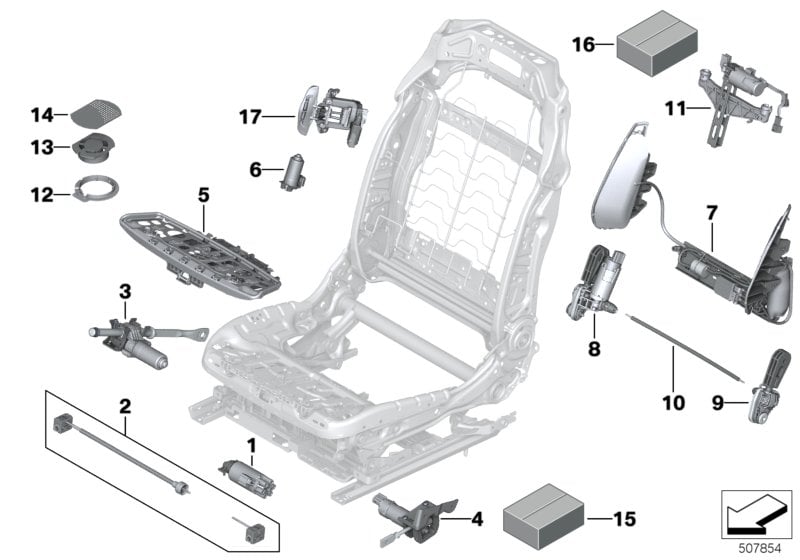

This Seat, front, electrical and motors technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.

Seat, front, electrical and motors
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Drive, longitudinal seat adjustment 2 52107314200 Shop at ECS Tuning
02 Set of flexible shafts 2 52107314203 Shop at ECS Tuning
03 Drive, seat height adjustment left 1 52107454053 Shop at ECS Tuning
03 Drive, seat height adjustment right 1 52107454054 Shop at ECS Tuning
04 Drive, seat angle adjustment left 1 52107314225 Shop at ECS Tuning
04 Drive, seat angle adjustment right 1 52107314226 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
S456A=Yes
05 Mechanism, thigh bolster, left 1 52107314211 Shop at ECS Tuning
05 Mechanism, thigh bolster, right 1 52107364388 Shop at ECS Tuning
06 Drive, backrest adjustment 2 52107314218 Shop at ECS Tuning
For vehicles with
Lumbar support, driver and passenger
and
M multifunction seat
S488A=Yes

S4MAA=No
07 Lumbar with backrest width adjustment 2 52107387535 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
Lumbar support, driver and passenger
and
M multifunction seat
S456A=No

S488A=Yes

S4MAA=No
07 Lumbar with backrest width adjustment 2 52107387535 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
Lumbar support, driver and passenger
and
M multifunction seat
S456A=No

S488A=No

S4MAA=No
07 Backrest width adjustment 2 52107491673 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
Sports seat
and
Lumbar support, driver and passenger
and
M multifunction seat
S456A=No

S481A=Yes

S488A=No

S4MAA=No
07 Backrest width adjustment 2 52107491673 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
Sports seat
and
Lumbar support, driver and passenger
and
M multifunction seat
S456A=No

S481A=Yes

S488A=Yes

S4MAA=No
07 Lumbar with backrest width adjustment 2 52107387535 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
M multifunction seat
S456A=Yes

S4MAA=Yes
08 Actuator f upper backrest adjustment 2 52107314212 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
M multifunction seat
S456A=Yes

S4MAA=No
08 Actuator f upper backrest adjustment 2 52107314212 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
M multifunction seat
S456A=No

S4MAA=Yes
08 Actuator f upper backrest adjustment 2 52107314212 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
M multifunction seat
S456A=Yes

S4MAA=Yes
09 Gear unit, backrest head adj. 2 52107314213 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
M multifunction seat
S456A=Yes

S4MAA=No
09 Gear unit, backrest head adj. 2 52107314213 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
M multifunction seat
S456A=No

S4MAA=Yes
09 Gear unit, backrest head adj. 2 52107314213 Shop at ECS Tuning
10 Set of flexible shafts 2 52107454056 NoS Shop at ECS Tuning
For vehicles with
Comfort seat with memory
or
Seat adjuster, electric, with memory
MODEL WITH MEMORY ONLY APPLIES TO
DRIVER'S SIDE
S456A=Yes

S459A=Yes
11 Drive, vertical headrest adjustment 2 52107314217 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
Seat adjuster, electric, with memory
and
M multifunction seat
MODEL WITHOUT MEMORY
ONLY APPLIES TO CO-DRIVERS SIDE
S456A=No

S459A=Yes

S4MAA=No
11 Drive, vertical headrest adjustment 1 52107299681 Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
S453A=Yes
12 Insert for ventilator 4 52107068075 $1.14 Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
Backrest fan
S453A=Yes
13 Fan, backrest KUNSTSTOFF 8 52109490351 Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
Seat fan outer
S453A=Yes
13 Fan ALU KABEL LANG 4 52109490353 Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
Seat fan center
S453A=Yes
13 Fan, seat ALU KABEL KURZ 4 52109490352 Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
S453A=Yes
14 Grid, backrest 2 52107942014 Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
and
Comfort seat with memory
S453A=Yes

S456A=Yes
14 Backrest climate-control mat 2 52107457458 Shop at ECS Tuning
15 Mounting hardware kit for seat frame 2 52107314220 Shop at ECS Tuning
16 Set of fittings, backrest 2 52107314219 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
M multifunction seat
S456A=Yes

S4MAA=Yes
17 Drive, backrest width adjustment, left 2 PINS 1 52107454050 Shop at ECS Tuning
17 Drive, backrest width adjustment, right 4 PINS 1 52107454055 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
M multifunction seat
S456A=Yes

S4MAA=No
17 Drive, backrest width adjustment, left 2 PINS 1 52107454050 Shop at ECS Tuning
17 Drive, backrest width adjustment, right 4 PINS 1 52107454055 Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
M multifunction seat
S456A=No

S4MAA=Yes
17 Drive, backrest width adjustment, left 2 PINS 1 52107454050 Shop at ECS Tuning
17 Drive, backrest width adjustment, right 4 PINS 1 52107454055 Shop at ECS Tuning
