Seat, rear, seat frame, base seat for BMW 5 Series G30 520i (2020)

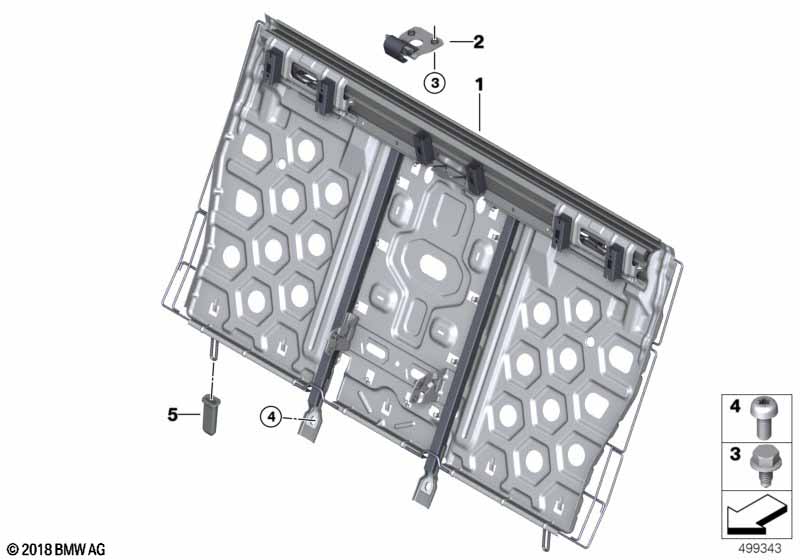

This Seat, rear, seat frame, base seat technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Comfort seat, rear, electr. adjustable or Through-loading system |
S460A=No S465A=No |
||||||||
| 01 | Backrest frame, base seat | 1 | 52207385890 | NoS | Shop at ECS Tuning | |||||
| 02 | Bracket for frame, backrest, right | 1 | 52207346698 | Shop at ECS Tuning | ||||||
| 02 | Bracket for frame, backrest, left | 1 | 52207346699 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M8X12 | 4 | 07119907416 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
| 05 | Cap | 12X24 | 2 | 51717450257 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
