Seat, rear, seat frame, load-through for BMW 5 Series G30 540dX (2015)
This Seat, rear, seat frame, load-through technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 01 | Backrest frame, load-through, right | 1 | 52207385898 | Shop at ECS Tuning | ||||||
| 01 | Backrest frame, load-through, left | 1 | 52207385899 | Shop at ECS Tuning | ||||||
| 02 | Backr.frame f.thro.load.facility center | 1 | 52207385900 | Shop at ECS Tuning | ||||||
| 03 | Center Mount | LINKS | 1 | 52207385903 | Shop at ECS Tuning | |||||
| 04 | Bearing exterior left | 1 | 52207385901 | Shop at ECS Tuning | ||||||
| 04 | Bearing exterior right | 1 | 52207385902 | Shop at ECS Tuning | ||||||
| 05 | Lock left | 1 | 52207112863 | $35.49 | +core | Shop at ECS Tuning | ||||
| 05 | Lock right | 1 | 52207112864 | $35.49 | +core | Shop at ECS Tuning | ||||
| 06 | Bowden cable release | 1 | 52207392145 | Shop at ECS Tuning | ||||||
| 07 | Fillister-head screw | M10X22 | 2 | 07147116970 | $1.80 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X12-8.8-ZNS3 | 4 | 07119906018 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Torx screw with collar | M8X20 T30 | 2 | 07147124309 | $0.80 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 540dX Seat, rear, seat frame, load-through?

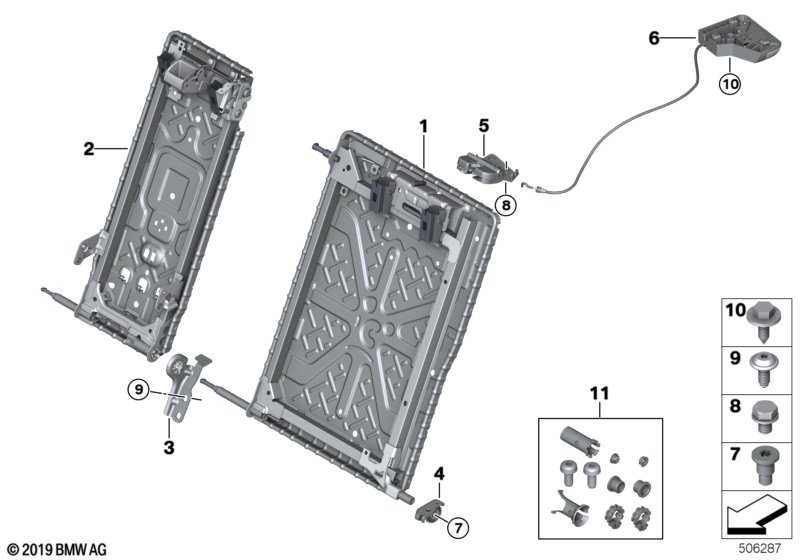

- This technical diagram illustrates the Seat, rear, seat frame, load-through within the Seats group for the 5 Series G30 540dX produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Backrest frame, load-through, right (Part #52207385898).
- Which models use the hardware listed in this Seat, rear, seat frame, load-through?
- The hardware and components featured in the Seat, rear, seat frame, load-through are specific to the 5 Series G30 540dX produced during 2015. These technical specifications ensure that parts like the Backrest frame, load-through, right (52207385898) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, rear, seat frame, load-through assembly?
- Each item in the Seat, rear, seat frame, load-through corresponds to the numbered list below the illustration. For the 5 Series G30 540dX, you can identify the Backrest frame, load-through, right by locating its position on the schematic, which then links to the official BMW part number 52207385898 for the Seats section.
