Rear seat upholstery and cover Lines for BMW 5 Series G30 540iX (2019)

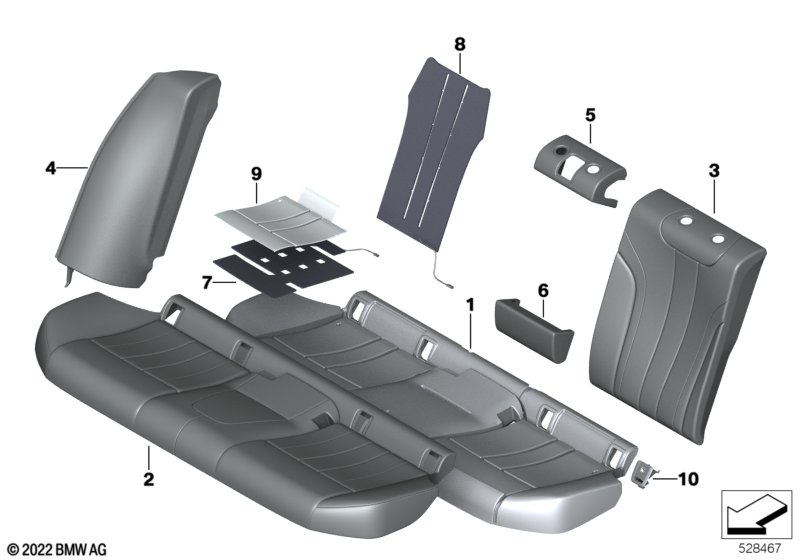

This Rear seat upholstery and cover Lines technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 540iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Foam section, seat | PHEV | 1 | 52207386033 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/night blue/exclusive seam |
LCTJ=Yes |
|||||||||
| 02 | Seat cover leather | LCTJ NACHTBLAU | 1 | 52207457779 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/excl. seam |
LCFK=Yes |
|||||||||
| 02 | Seat cover leather | LCFK SCHWARZ | 1 | 52207457777 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/Cognac/exclusive seam |
LCRO=Yes |
|||||||||
| 02 | Seat cover leather | LCRO COGNAC | 1 | 52207457778 | Shop at ECS Tuning | |||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 02 | Seat cover leather | LZFK SCHWARZ | 1 | 52207453672 | Shop at ECS Tuning | |||||
| For vehicles with Cloth Rhombicle Alcantara anthracite |
HRAT=Yes |
|||||||||
| 02 | Seat cover Dinamica | HRAT ANTHRAZIT | 1 | 52208070960 | Shop at ECS Tuning | |||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 02 | Seat cover leather | LZNI MOKKA | 1 | 52207453673 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LZFF=Yes LZFI=Yes |
|||||||||
| 02 | Seat cover leather | LZFF ELF.WEISS | 1 | 52207453671 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam |
LCFF=Yes LCFI=Yes |
|||||||||
| 02 | Seat cover leather | LCFF ELF.WEISS | 1 | 52207457776 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/Canberra beige/excl.seam or Leather Dakota Canberra beige |
LCDO=Yes LCEA=Yes |
|||||||||
| 02 | Seat cover leather | LCDO CAN.BEIGE | 1 | 52207457775 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Excl. leather Nappa/mocca/exclusive seam |
S465A=Yes LZNI=Yes |
|||||||||
| 03 | Cover backrest leather left | LZNI MOKKA | 1 | 52207453683 | Shop at ECS Tuning | |||||
| 03 | Cover backrest leather right | LZNI MOKKA | 1 | 52207453684 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Leather Dakota/black/excl. seam |
S465A=No LCFK=Yes |
|||||||||
| 03 | Cover backrest, leather | LCFK SCHWARZ | 1 | 52207457762 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Excl.leather Nappa/black/exclusive seam |
S465A=Yes LZFK=Yes |
|||||||||
| 03 | Cover backrest leather left | LZFK SCHWARZ | 1 | 52207453681 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover backrest leather right | LZFK SCHWARZ | 1 | 52207453682 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Leather Dakota/night blue/exclusive seam |
S465A=No LCTJ=Yes |
|||||||||
| 03 | Cover backrest, leather | LCTJ NACHTBLAU | 1 | 52207457764 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Leather Dakota/black/excl. seam |
S465A=Yes LCFK=Yes |
|||||||||
| 03 | Cover backrest leather left | LCFK SCHWARZ | 1 | 52207457769 | Shop at ECS Tuning | |||||
| 03 | Cover backrest leather right | LCFK SCHWARZ | 1 | 52207457770 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Leather Dakota/night blue/exclusive seam |
S465A=Yes LCTJ=Yes |
|||||||||
| 03 | Cover backrest leather left | LCTJ NACHTBLAU | 1 | 52207457773 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover backrest leather right | LCTJ NACHTBLAU | 1 | 52207457774 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather Dakota/Cognac/exclusive seam |
S465A=Yes LCRO=Yes |
|||||||||
| 03 | Cover backrest leather left | LCRO COGNAC | 1 | 52207457771 | Shop at ECS Tuning | |||||
| 03 | Cover backrest leather right | LCRO COGNAC | 1 | 52207457772 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Excl.leather Nappa/black/exclusive seam |
S465A=No LZFK=Yes |
|||||||||
| 03 | Cover backrest, leather | LZFK SCHWARZ | 1 | 52207453676 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather Dakota/Cognac/exclusive seam |
S465A=No LCRO=Yes |
|||||||||
| 03 | Cover backrest, leather | LCRO COGNAC | 1 | 52207457763 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Excl. leather Nappa/mocca/exclusive seam |
S465A=No LZNI=Yes |
|||||||||
| 03 | Cover backrest, leather | LZNI MOKKA | 1 | 52207453677 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather Dakota/Canberra beige/excl.seam or Leather Dakota Canberra beige |
S465A=No LCDO=Yes LCEA=Yes |
|||||||||
| 03 | Cover backrest, leather | LCDO CAN.BEIGE | 1 | 52207457760 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam |
S465A=Yes LCFF=Yes LCFI=Yes |
|||||||||
| 03 | Cover backrest leather left | LCFF ELF.WEISS | 1 | 52207457767 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover backrest leather right | LCFF ELF.WEISS | 1 | 52207457768 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Leather Dakota/Canberra beige/excl.seam or Leather Dakota Canberra beige |
S465A=Yes LCDO=Yes LCEA=Yes |
|||||||||
| 03 | Cover backrest leather left | LCDO CAN.BEIGE | 1 | 52207457765 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover backrest leather right | LCDO CAN.BEIGE | 1 | 52207457766 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam |
S465A=No LCFF=Yes LCFI=Yes |
|||||||||
| 03 | Cover backrest, leather | LCFF ELF.WEISS | 1 | 52207457761 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
S465A=No LZFF=Yes LZFI=Yes |
|||||||||
| 03 | Cover backrest, leather | LZFF ELF.WEISS | 1 | 52207453675 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
S465A=Yes LZFF=Yes LZFI=Yes |
|||||||||
| 03 | Cover backrest leather left | LZFF ELF.WEISS | 1 | 52207453679 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover backrest leather right | LZFF ELF.WEISS | 1 | 52207453680 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/night blue/exclusive seam |
LCTJ=Yes |
|||||||||
| 04 | Side finisher, leather, left | LCTJ NACHTBLAU | 1 | 52207456257 | Shop at ECS Tuning | |||||
| 04 | Side finisher, leather, right | LCTJ NACHTBLAU | 1 | 52207456258 | Shop at ECS Tuning | |||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 04 | Side finisher, leather, left | LZFK SCHWARZ | 1 | 52207456293 | Shop at ECS Tuning | |||||
| 04 | Side finisher, leather, right | LZFK SCHWARZ | 1 | 52207456294 | Shop at ECS Tuning | |||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 04 | Side finisher, leather, left | LZNI MOKKA | 1 | 52207456295 | Shop at ECS Tuning | |||||
| 04 | Side finisher, leather, right | LZNI MOKKA | 1 | 52207456296 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LZFF=Yes LZFI=Yes |
|||||||||
| 04 | Side finisher, leather, left | LZFF ELF.WEISS | 1 | 52207456291 | Shop at ECS Tuning | |||||
| 04 | Side finisher, leather, right | LZFF ELF.WEISS | 1 | 52207456292 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam |
LCRI=Yes LCRO=Yes |
|||||||||
| 04 | Side finisher, leather, left | LCRI COGNAC | 1 | 52207456251 | Shop at ECS Tuning | |||||
| 04 | Side finisher, leather, right | LCRI COGNAC | 1 | 52207456252 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam |
LCEW=Yes LCFF=Yes LCFI=Yes |
|||||||||
| 04 | Side finisher, leather, left | LCEW ELF.WEISS | 1 | 52207456289 | Shop at ECS Tuning | |||||
| 04 | Side finisher, leather, right | LCEW ELF.WEISS | 1 | 52207456290 | Shop at ECS Tuning | |||||
| For vehicles with Cloth/leather plectoid / anthracite or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
CNAT=Yes LCFK=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 04 | Side finisher, leather, left | LCSW SCHWARZ | 1 | 52207456249 | Shop at ECS Tuning | |||||
| 04 | Side finisher, leather, right | LCSW SCHWARZ | 1 | 52207456250 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam or Leather Dakota Canberra beige or Leather 'Dakota' canberrabeige / black |
LCCY=Yes LCDO=Yes LCEA=Yes LCFY=Yes |
|||||||||
| 04 | Side finisher, leather, left | LCCY CAN.BEIGE | 1 | 52207456241 | Shop at ECS Tuning | |||||
| 04 | Side finisher, leather, right | LCCY CAN.BEIGE | 1 | 52207456242 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Excl. leather Nappa/mocca/exclusive seam |
S465A=Yes LZNI=Yes |
|||||||||
| 05 | Cover, backrest, center, leather, upper | LZNI MOKKA | 1 | 52207453690 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Excl.leather Nappa/black/exclusive seam |
S465A=Yes LZFK=Yes |
|||||||||
| 05 | Cover, backrest, center, leather, upper | LZFK SCHWARZ | 1 | 52207453689 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather Dakota/night blue/exclusive seam |
S465A=Yes LCTJ=Yes |
|||||||||
| 05 | Cover, backrest, center, leather, upper | LCTJ NACHTBLAU | 1 | 52207453665 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather Dakota/Cognac/exclusive seam |
S465A=Yes LCRO=Yes |
|||||||||
| 05 | Cover, backrest, center, leather, upper | LCRI COGNAC | 1 | 52207453664 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
S465A=Yes LCFK=Yes LCSW=Yes |
|||||||||
| 05 | Cover, backrest, center, leather, upper | LCSW SCHWARZ | 1 | 52207453663 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
S465A=Yes LZFF=Yes LZFI=Yes |
|||||||||
| 05 | Cover, backrest, center, leather, upper | LZFF ELF.WEISS | 1 | 52207453688 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam or Leather Dakota Canberra beige |
S465A=Yes LCCY=Yes LCDO=Yes LCEA=Yes |
|||||||||
| 05 | Cover, backrest, center, leather, upper | LCCY CAN.BEIGE | 1 | 52207453661 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam |
S465A=Yes LCEW=Yes LCFF=Yes LCFI=Yes |
|||||||||
| 05 | Cover, backrest, center, leather, upper | LCEW ELF.WEISS | 1 | 52207453662 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Excl. leather Nappa/mocca/exclusive seam |
S465A=Yes LZNI=Yes |
|||||||||
| 06 | Cover, backrest, center, leather, lower | LZNI MOKKA | 1 | 52207453687 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Excl.leather Nappa/black/exclusive seam |
S465A=Yes LZFK=Yes |
|||||||||
| 06 | Cover, backrest, center, leather, lower | LZFK SCHWARZ | 1 | 52207453686 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather Dakota/night blue/exclusive seam |
S465A=Yes LCTJ=Yes |
|||||||||
| 06 | Cover, backrest, center, leather, lower | LCTJ NACHTBLAU | 1 | 52207453660 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam |
S465A=Yes LCRI=Yes LCRO=Yes |
|||||||||
| 06 | Cover, backrest, center, leather, lower | LCRI COGNAC | 1 | 52207453659 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
S465A=Yes LZFF=Yes LZFI=Yes |
|||||||||
| 06 | Cover, backrest, center, leather, lower | LZFF ELF.WEISS | 1 | 52207453685 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam or Leather Dakota Canberra beige |
S465A=Yes LCCY=Yes LCDO=Yes LCEA=Yes |
|||||||||
| 06 | Cover, backrest, center, leather, lower | LCCY CAN.BEIGE | 1 | 52207453646 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam |
S465A=Yes LCEW=Yes LCFF=Yes LCFI=Yes |
|||||||||
| 06 | Cover, backrest, center, leather, lower | LCEW ELF.WEISS | 1 | 52207453657 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Cloth/leather plectoid / anthracite or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
S465A=Yes CNAT=Yes LCFK=Yes LCSW=Yes |
|||||||||
| 06 | Cover, backrest, center, leather, lower | LCSW SCHWARZ | 1 | 52207453658 | Shop at ECS Tuning | |||||
| For vehicles with Seat heating, front and rear |
S4HAA=Yes |
|||||||||
| 07 | Heater element seat, left | 1 | 52207390559 | Shop at ECS Tuning | ||||||
| 07 | Heater element seat, right | 1 | 52207390560 | Shop at ECS Tuning | ||||||
| 08 | Heater element backrest | 2 | 52207390561 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/night blue/exclusive seam |
LCTJ=Yes |
|||||||||
| 10 | Cover isofix | NACHTBLAU | 4 | 52207458925 | Shop at ECS Tuning | |||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 10 | Cover isofix | MOKKA | 4 | 52207458923 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam |
LCRI=Yes LCRO=Yes |
|||||||||
| 10 | Cover isofix | COGNAC | 4 | 52207458924 | Shop at ECS Tuning | |||||
| For vehicles with Leatherette canberra-beige or Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
K8CY=Yes LCCY=Yes LCDO=Yes |
|||||||||
| 10 | Cover isofix | CANBERRABEIGE | 4 | 52207451004 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LCEW=Yes LCFF=Yes LCFI=Yes LZFF=Yes LZFI=Yes |
|||||||||
| 10 | Cover isofix | ELF.WEISS | 4 | 52207451007 | Shop at ECS Tuning | |||||
| For vehicles with Cloth junction / anthracite or Cloth/leather plectoid / anthracite or Cloth Rhombicle Alcantara anthracite or Imitation leather "Leatherette/black" or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz or Excl.leather Nappa/black/exclusive seam |
BYAT=Yes CNAT=Yes HRAT=Yes K8SW=Yes LCFK=Yes LCNL=Yes LCSW=Yes LZFK=Yes |
|||||||||
| 10 | Cover isofix | SCHWARZ | 4 | 52207451008 | Shop at ECS Tuning | |||||
