Seat, rear, upholstery and cover for BMW MINI Countryman F60 Cooper (2020)

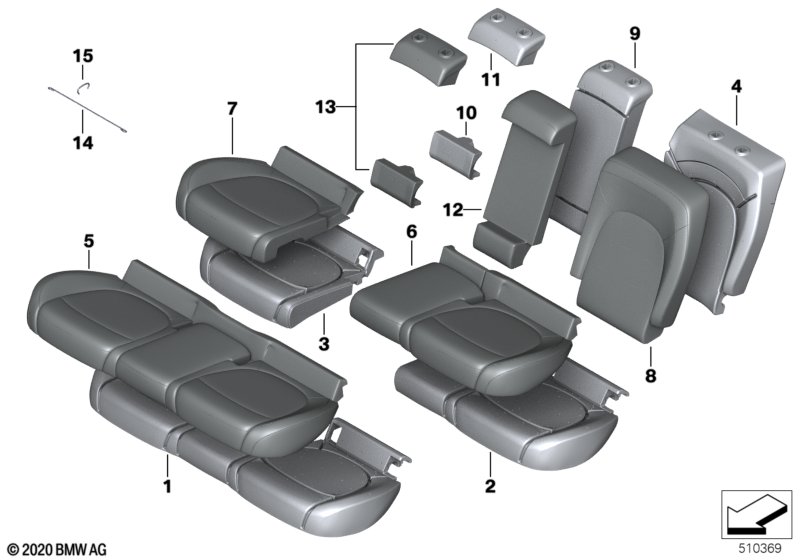

This Seat, rear, upholstery and cover technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster for rear seats |
S4FDA=No |
|||||||||
| 01 | Foam pad, Base seat | 100% | 1 | 52207387791 | Shop at ECS Tuning | |||||
| Seat bench full width | ||||||||||
| For vehicles with Seat adjuster for rear seats |
S4FDA=Yes |
|||||||||
| 02 | Left seat foam plastic part | 60% | 1 | 52207389749 | Shop at ECS Tuning | |||||
| 03 | Right seat foam plastic part | 40% | 1 | 52207389750 | Shop at ECS Tuning | |||||
| 04 | Foam padding, backrest, left | 40% | 1 | 52207387789 | Shop at ECS Tuning | |||||
| 04 | Foam padding, backrest, right | 40% | 1 | 52207387790 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours leather Lounge/carbon-black |
TYE1=Yes |
|||||||||
| 05 | Leather cover for basic seat | CARBON BLACK | 1 | 52207433665 | Shop at ECS Tuning | |||||
| Only fits hybrid | ||||||||||
| For vehicles with Seat adjuster for rear seats and Leather, Cross punch / carbon black |
S4FDA=No NEE1=Yes |
|||||||||
| 05 | Leather cover for basic seat | CARBON BLACK | 1 | 52207939346 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and Dinamica/leather in Carbon Black |
S4FDA=No GSE1=Yes |
|||||||||
| 05 | Cover basic seat Dinamica | CARBON BLACK | 1 | 52209471318 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and Imit. leather"Leatherette"/carbon-black |
S4FDA=No K9E1=Yes |
|||||||||
| 05 | Imitat. leather cover f basic seat | CARBON BLACK | 1 | 52207433595 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and Fabric Firework/Carbon Black |
S4FDA=No BGE1=Yes |
|||||||||
| 05 | Cloth cover for basic seat | CARBON BLACK | 1 | 52207433559 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Fabric/leatherette Bl.Pearl/carbon-black |
S4FDA=No KDE1=Yes |
|||||||||
| 05 | Imitat. leather cover f basic seat | CARBON BLACK | 1 | 52207433583 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and Leather 'Lounge/satellite-gray' |
S4FDA=No T9GK=Yes |
|||||||||
| 05 | Leather cover for basic seat | SATELLITE GREY | 1 | 52207939387 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth |
S4FDA=No BZE1=Yes DAE1=Yes |
|||||||||
| 05 | Cloth cover for basic seat | CARBON BLACK | 1 | 52207433571 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and Leather, Cross punch / carbon black |
S4FDA=Yes NEE1=Yes |
|||||||||
| 06 | Seat cover leather left | NEE1 CARB.BLACK | 1 | 52207939343 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Fabric Firework/Carbon Black |
S4FDA=Yes BGE1=Yes |
|||||||||
| 06 | Seat cover cloth left | BGE1 CARB.BLACK | 1 | 52207433553 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Dinamica/leather in Carbon Black |
S4FDA=Yes GSE1=Yes |
|||||||||
| 06 | Seat cover Dinamica left | CARBON BLACK | 1 | 07/2019 | 52209471309 | NoS | Shop at ECS Tuning | |||
| John Cooper Works | ||||||||||
| For vehicles with Seat adjuster for rear seats and Leather, chester/satellite gray |
S4FDA=Yes NYGK=Yes |
|||||||||
| 06 | Seat cover leather left | GREY | 1 | 52209458939 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and MINI Yours leather Lounge/carbon-black |
S4FDA=Yes TYE1=Yes |
|||||||||
| 06 | Seat cover leather left | CARBON BLACK | 1 | 52207433655 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and Leather 'Lounge/satellite-gray' |
S4FDA=Yes T9GK=Yes |
|||||||||
| 06 | Seat cover leather left | SATELLITE GREY | 1 | 52207939357 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Leather Chester / British Oak |
S4FDA=No NYM9=Yes |
|||||||||
| 06 | Leather cover for basic seat | BRITISH OAK | 1 | 52207939410 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and Leather Chester / British Oak |
S4FDA=Yes NYM9=Yes |
|||||||||
| 06 | Seat cover leather left | BRITISH OAK | 1 | 52207939401 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Leather, chester/satellite gray |
S4FDA=No NYGK=Yes |
|||||||||
| 06 | Seat cover leather | GREY | 1 | 52209458999 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and MINI Yours leather Lounge/carbon-black |
S4FDA=No TYE1=Yes |
|||||||||
| 06 | Leather cover for basic seat | CARBON BLACK | 1 | 52207433663 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Imit. leather"Leatherette"/carbon-black |
S4FDA=Yes K9E1=Yes |
|||||||||
| 06 | Seat cover vinyl left | K9E1 CARB.BLACK | 1 | 52207433587 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Fabric/leatherette Bl.Pearl/carbon-black |
S4FDA=Yes KDE1=Yes |
|||||||||
| 06 | Seat cover vinyl left | KDE1 CARB.BLACK | 1 | 52207433575 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and Cloth/leather Cord/carbon black |
S4FDA=Yes CXE1=Yes |
|||||||||
| 06 | Cover, seat, cloth/leather left | CXE1 CARB.BLACK | 1 | 52207939330 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and Cloth/leather Cord/carbon black |
S4FDA=No CXE1=Yes |
|||||||||
| 06 | Cover, base seat, fabric/leather | CARBON BLACK | 1 | 52207939340 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth |
S4FDA=Yes BZE1=Yes DAE1=Yes |
|||||||||
| 06 | Seat cover cloth left | CARBON BLACK | 1 | 52207433563 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Leather, Cross punch / carbon black |
S4FDA=Yes NEE1=Yes |
|||||||||
| 07 | Seat cover leather right | NEE1 CARB.BLACK | 1 | 52207939344 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Fabric Firework/Carbon Black |
S4FDA=Yes BGE1=Yes |
|||||||||
| 07 | Seat cover cloth right | BGE1 CARB.BLACK | 1 | 52207433554 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and MINI Yours leather Lounge/carbon-black |
S4FDA=Yes TYE1=Yes |
|||||||||
| 07 | Seat cover leather right | TYE1 CARB.BLACK | 1 | 52207433656 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and Leather 'Lounge/satellite-gray' |
S4FDA=Yes T9GK=Yes |
|||||||||
| 07 | Seat cover leather right | T9GK SAT. GREY | 1 | 52207939358 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Leather Chester / British Oak |
S4FDA=Yes NYM9=Yes |
|||||||||
| 07 | Seat cover leather right | NYM9 BRIT. OAK | 1 | 52207939402 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Imit. leather"Leatherette"/carbon-black |
S4FDA=Yes K9E1=Yes |
|||||||||
| 07 | Seat cover vinyl right | K9E1 CARB.BLACK | 1 | 52207433588 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Fabric/leatherette Bl.Pearl/carbon-black |
S4FDA=Yes KDE1=Yes |
|||||||||
| 07 | Seat cover vinyl right | KDE1 CARB.BLACK | 1 | 52207433576 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster for rear seats and Cloth/leather Cord/carbon black |
S4FDA=Yes CXE1=Yes |
|||||||||
| 07 | Cover, seat, cloth/leather right | CXE1 CARB.BLACK | 1 | 52207939336 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats and Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth |
S4FDA=Yes BZE1=Yes DAE1=Yes |
|||||||||
| 07 | Seat cover cloth right | BZE1 CARB.BLACK | 1 | 52207433564 | Shop at ECS Tuning | |||||
| For vehicles with Leather 'Lounge/satellite-gray' |
T9GK=Yes |
|||||||||
| 08 | Cover backrest leather right | T9GK SAT.GREY | 1 | 52207939374 | NoS | Shop at ECS Tuning | ||||
| 08 | Cover backrest leather left | T9GK SAT.GREY | 1 | 52207939373 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather Cord/carbon black |
CXE1=Yes |
|||||||||
| 08 | Left cloth/leather backrest cover | CXE1 CARB.BLACK | 1 | 52207939337 | Shop at ECS Tuning | |||||
| 08 | Right cloth/leather backrest cover | CXE1 CARB.BLACK | 1 | 52207939338 | Shop at ECS Tuning | |||||
| For vehicles with Leather, chester/satellite gray |
NYGK=Yes |
|||||||||
| 08 | Cover backrest leather left | GREY | 1 | 52209458997 | NoS | Shop at ECS Tuning | ||||
| 08 | Cover backrest leather right | GREY | 1 | 52209458998 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours leather Lounge/carbon-black |
TYE1=Yes |
|||||||||
| 08 | Cover backrest leather left | TYE1 CARB.BLACK | 1 | 52207433661 | Shop at ECS Tuning | |||||
| 08 | Cover backrest leather right | TYE1 CARB.BLACK | 1 | 52207433662 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Cross punch / carbon black |
NEE1=Yes |
|||||||||
| 08 | Cover backrest leather left | NEE1 CARB.BLACK | 1 | 52207939347 | Shop at ECS Tuning | |||||
| 08 | Cover backrest leather right | NEE1 CARB.BLACK | 1 | 52207433606 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cover backrest leather right | NEE1 CARB.BLACK | 1 | 52207939348 | Shop at ECS Tuning | |||||
| For vehicles with Imit. leather"Leatherette"/carbon-black |
K9E1=Yes |
|||||||||
| 08 | Cover backrest vinyl left | K9E1 CARB.BLACK | 1 | 52207433593 | Shop at ECS Tuning | |||||
| 08 | Cover backrest vinyl right | K9E1 CARB.BLACK | 1 | 52207433594 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Firework/Carbon Black |
BGE1=Yes |
|||||||||
| 08 | Cover backrest cloth left | BGE1 CARB.BLACK | 1 | 52207433557 | Shop at ECS Tuning | |||||
| 08 | Cover backrest cloth right | BGE1 CARB.BLACK | 1 | 52207433558 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leatherette Bl.Pearl/carbon-black |
KDE1=Yes |
|||||||||
| 08 | Cover backrest vinyl left | KDE1 CARB.BLACK | 1 | 52207433581 | NoS | Shop at ECS Tuning | ||||
| 08 | Cover backrest vinyl right | KDE1 CARB.BLACK | 1 | 52207433582 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Chester / British Oak |
NYM9=Yes |
|||||||||
| 08 | Cover backrest leather left | NYM9 BRIT. OAK | 1 | 52207939411 | Shop at ECS Tuning | |||||
| 08 | Cover backrest leather right | NYM9 BRIT. OAK | 1 | 52207939412 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth |
BZE1=Yes DAE1=Yes |
|||||||||
| 08 | Cover backrest cloth left | BZE1 CARB.BLACK | 1 | 52207433569 | NoS | Shop at ECS Tuning | ||||
| 08 | Cover backrest cloth right | BZE1 CARB.BLACK | 1 | 52207433570 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear |
S497A=No |
|||||||||
| 09 | Foam rubber pad, backrest, center | 20% | 1 | 52207387788 | Shop at ECS Tuning | |||||
| Seat bench full width | ||||||||||
| For vehicles with Centre armrest, rear |
S497A=Yes |
|||||||||
| 10 | Foam insert, armrest, center lower | 20% | 1 | 52207406549 | NoS | Shop at ECS Tuning | ||||
| Seat bench full width | ||||||||||
| 11 | Foam part for backrest center top | 20% | 1 | 52207406835 | NoS | Shop at ECS Tuning | ||||
| Seat bench full width | ||||||||||
| For vehicles with Centre armrest, rear and MINI Yours leather Lounge/carbon-black |
S497A=No TYE1=Yes |
|||||||||
| 12 | Upholstery cover backrest, lthr, cent | TYE1 CARB.BLACK | 1 | 52207433657 | Shop at ECS Tuning | |||||
| For vehicles with Centre armrest, rear and Fabric Firework/Carbon Black |
S497A=No BGE1=Yes |
|||||||||
| 12 | Upholstery cover, backrest, fabric, cent | BGE1 CARB.BLACK | 1 | 52207433552 | Shop at ECS Tuning | |||||
| For vehicles with Centre armrest, rear and Leather Chester / British Oak |
S497A=No NYM9=Yes |
|||||||||
| 12 | Upholstery cover backrest, lthr, cent | NYM9 BRIT. OAK | 1 | 52207939408 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Cloth/leather Cord/carbon black |
S497A=No CXE1=Yes |
|||||||||
| 12 | Cover backrest cloth/leather center | CXE1 CARB.BLACK | 1 | 52207939335 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Fabric/leatherette Bl.Pearl/carbon-black |
S497A=No KDE1=Yes |
|||||||||
| 12 | Upholstery cover, backrest, vinyl, cent | KDE1 CARB.BLACK | 1 | 52207433577 | Shop at ECS Tuning | |||||
| For vehicles with Centre armrest, rear and Leather, Cross punch / carbon black |
S497A=No NEE1=Yes |
|||||||||
| 12 | Upholstery cover backrest, lthr, cent | NEE1 CARB.BLACK | 1 | 52207939342 | Shop at ECS Tuning | |||||
| For vehicles with Centre armrest, rear and Imit. leather"Leatherette"/carbon-black |
S497A=No K9E1=Yes |
|||||||||
| 12 | Upholstery cover, backrest, vinyl, cent | K9E1 CARB.BLACK | 1 | 52207433589 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Leather 'Lounge/satellite-gray' |
S497A=No T9GK=Yes |
|||||||||
| 12 | Upholstery cover backrest, lthr, cent | T9GK SAT.GREY | 1 | 52207939359 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Leather, chester/satellite gray |
S497A=No NYGK=Yes |
|||||||||
| 12 | Set cover backrest leather center | GREY | 1 | 52209471403 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth |
S497A=No BZE1=Yes DAE1=Yes |
|||||||||
| 12 | Upholstery cover, backrest, fabric, cent | BZE1 CARB.BLACK | 1 | 52207433565 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and MINI Yours leather Lounge/carbon-black |
S497A=Yes TYE1=Yes |
|||||||||
| 13 | Set cover backrest leather center | TYE1 CARB.BLACK | 1 | 52207433659 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Imit. leather"Leatherette"/carbon-black |
S497A=Yes K9E1=Yes |
|||||||||
| 13 | Set cover backrest vinyl center | K9E1 CARB.BLACK | 1 | 52207433591 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Leather, Cross punch / carbon black |
S497A=Yes NEE1=Yes |
|||||||||
| 13 | Set cover backrest leather center | NEE1 CARB.BLACK | 1 | 52207433603 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Leather 'Lounge/satellite-gray' |
S497A=Yes T9GK=Yes |
|||||||||
| 13 | Set cover backrest leather center | T9GK SAT.GREY | 1 | 52207939362 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Cloth/leather Cord/carbon black |
S497A=Yes CXE1=Yes |
|||||||||
| 13 | Set cover backrest cloth/leather center | CXE1 CARB.BLACK | 1 | 52207939339 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Leather, chester/satellite gray |
S497A=Yes NYGK=Yes |
|||||||||
| 13 | Set cover backrest leather center | GREY | 1 | 52209471404 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Fabric/leatherette Bl.Pearl/carbon-black |
S497A=Yes KDE1=Yes |
|||||||||
| 13 | Set cover backrest vinyl center | KDE1 CARB.BLACK | 1 | 52207433579 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Fabric Firework/Carbon Black |
S497A=Yes BGE1=Yes |
|||||||||
| 13 | Set cover backrest cloth center | BGE1 CARB.BLACK | 1 | 52207433555 | Shop at ECS Tuning | |||||
| For vehicles with Centre armrest, rear and Leather Chester / British Oak |
S497A=Yes NYM9=Yes |
|||||||||
| 13 | Set cover backrest leather center | NYM9 BRIT. OAK | 1 | 52207939409 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Centre armrest, rear and Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth |
S497A=Yes BZE1=Yes DAE1=Yes |
|||||||||
| 13 | Set cover backrest cloth center | BZE1 CARB.BLACK | 1 | 52207433567 | NoS | Shop at ECS Tuning | ||||
| 14 | Wire-strap | L=1800MM | 1 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 15 | Clamp | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 Cooper Seat, rear, upholstery and cover?
- This technical diagram illustrates the Seat, rear, upholstery and cover within the Seats group for the MINI Countryman F60 Cooper produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Foam pad, Base seat (Part #52207387791).
- Which models use the hardware listed in this Seat, rear, upholstery and cover?
- The hardware and components featured in the Seat, rear, upholstery and cover are specific to the MINI Countryman F60 Cooper produced during 2020. These technical specifications ensure that parts like the Foam pad, Base seat (52207387791) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, rear, upholstery and cover assembly?
- Each item in the Seat, rear, upholstery and cover corresponds to the numbered list below the illustration. For the MINI Countryman F60 Cooper, you can identify the Foam pad, Base seat by locating its position on the schematic, which then links to the official BMW part number 52207387791 for the Seats section.
