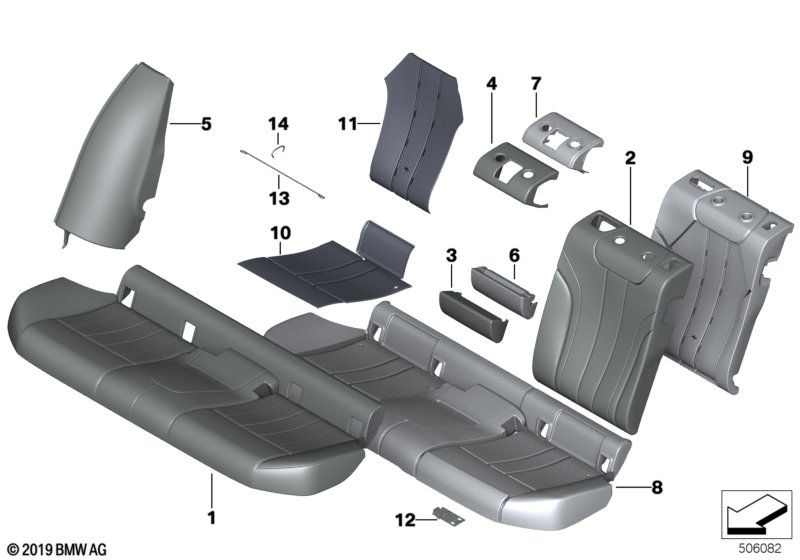

Seat, rear, upholstery and cover for BMW 5 Series G31 Touring 520dX (2018)
This Seat, rear, upholstery and cover technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 01 | Seat cover leather | LCNL SCHW.BLAU | 1 | 52208089506 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/night blue/exclusive seam |
LCTJ=Yes |
|||||||||
| 01 | Seat cover leather | LCTJ NACHTBLAU | 1 | 52207465895 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 01 | Seat cover leather | MOKKA | 1 | 52207455915 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec perforated/black |
KHSW=Yes |
|||||||||
| 01 | Seat cover vinyl | SCHWARZ | 1 | 52209879836 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac |
KHRI=Yes |
|||||||||
| 01 | Seat cover vinyl | COGNAC | 1 | 52209879838 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/elfenbein-weiss" |
LCEW=Yes |
|||||||||
| 01 | Seat cover leather | LCEW ELF.WEISS | 1 | 52207455898 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige |
KHFY=Yes |
|||||||||
| 01 | Seat cover vinyl | CANBERRABEIGE | 1 | 52209879837 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather plectoid / anthracite |
CNAT=Yes |
|||||||||
| 01 | Cloth/leather seat cover | ANTHRAZIT | 1 | 52207467494 | Shop at ECS Tuning | |||||
| For vehicles with Cloth Rhombicle Alcantara anthracite |
HRAT=Yes |
|||||||||
| 01 | Seat cover Dinamica | ANTHRAZIT | 1 | 52208070964 | Shop at ECS Tuning | |||||
| For vehicles with Cloth junction / anthracite |
BYAT=Yes |
|||||||||
| 01 | Seat cover cloth | ANTHRAZIT | 1 | 52207454531 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/excl. seam |
LCFK=Yes |
|||||||||
| 01 | Seat cover leather | LCFK SCHWARZ | 1 | 52207474191 | Shop at ECS Tuning | |||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 01 | Seat cover leather | SCHWARZ | 1 | 52207455914 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Dakota/cognac |
LCRI=Yes |
|||||||||
| 01 | Seat cover leather | LCRI COGNAC | 1 | 52207455900 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Seat cover leather | LCSW SCHWARZ | 1 | 52207474190 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/Cognac/exclusive seam |
LCRO=Yes |
|||||||||
| 01 | Seat cover leather | LCRO COGNAC | 1 | 52207457791 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam |
LCFF=Yes LCFI=Yes |
|||||||||
| 01 | Seat cover leather | LCFF ELF.WEISS | 1 | 52207457789 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LZFF=Yes LZFI=Yes |
|||||||||
| 01 | Seat cover leather | ELFENBEINWEISS | 1 | 52207455913 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige or Leather 'Dakota' canberrabeige / black |
LCCY=Yes LCFY=Yes |
|||||||||
| 01 | Seat cover leather | LCCY CAN.BEIGE | 1 | 52207455897 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/Canberra beige/excl.seam or Leather Dakota Canberra beige |
LCDO=Yes LCEA=Yes |
|||||||||
| 01 | Seat cover leather | LCDO CAN.BEIGE | 1 | 52207457780 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 02 | Cover backrest leather left | LCNL SCHW.BLAU | 1 | 52208068273 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | LCNL SCHW.BLAU | 1 | 52208068274 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/night blue/exclusive seam |
LCTJ=Yes |
|||||||||
| 02 | Cover backrest leather right | LCTJ NACHTBLAU | 1 | 52207467199 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather left | LCTJ NACHTBLAU | 1 | 52207467201 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 02 | Cover backrest leather left | MOKKA | 1 | 52207455921 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | MOKKA | 1 | 52207455922 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/black |
KHSW=Yes |
|||||||||
| 02 | Cover backrest vinyl left | SCHWARZ | 1 | 52209879839 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest vinyl right | SCHWARZ | 1 | 52209879840 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac |
KHRI=Yes |
|||||||||
| 02 | Cover backrest vinyl left | COGNAC | 1 | 52209879843 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest vinyl right | COGNAC | 1 | 52209879844 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/elfenbein-weiss" |
LCEW=Yes |
|||||||||
| 02 | Cover backrest leather left | LCEW ELF.WEISS | 1 | 52207455903 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | LCEW ELF.WEISS | 1 | 52207455904 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige |
KHFY=Yes |
|||||||||
| 02 | Cover backrest vinyl left | CANBERRABEIGE | 1 | 52209879841 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest vinyl right | CANBERRABEIGE | 1 | 52209879842 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather plectoid / anthracite |
CNAT=Yes |
|||||||||
| 02 | Cover backrest cloth left | ANTHRAZIT | 1 | 52207465897 | Shop at ECS Tuning | |||||
| 02 | Cover backrest cloth right | ANTHRAZIT | 1 | 52207465898 | Shop at ECS Tuning | |||||
| For vehicles with Cloth Rhombicle Alcantara anthracite |
HRAT=Yes |
|||||||||
| 02 | Backrest cover Alcantara, left | ANTHRAZIT | 1 | 52208070969 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest cover Alcantara, right | ANTHRAZIT | 1 | 52208070970 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth junction / anthracite |
BYAT=Yes |
|||||||||
| 02 | Cover backrest cloth left | ANTHRAZIT | 1 | 52207454533 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest cloth right | ANTHRAZIT | 1 | 52207454534 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/excl. seam |
LCFK=Yes |
|||||||||
| 02 | Cover backrest leather left | LCFK SCHWARZ | 1 | 52207457785 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | LCFK SCHWARZ | 1 | 52207457786 | Shop at ECS Tuning | |||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 02 | Cover backrest leather left | SCHWARZ | 1 | 52207455919 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | SCHWARZ | 1 | 52207455920 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Dakota/cognac |
LCRI=Yes |
|||||||||
| 02 | Cover backrest leather left | LCRI COGNAC | 1 | 52207455907 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | LCRI COGNAC | 1 | 52207455908 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 02 | Cover backrest leather left | LCSW SCHWARZ | 1 | 52207455905 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | LCSW SCHWARZ | 1 | 52207455906 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/Cognac/exclusive seam |
LCRO=Yes |
|||||||||
| 02 | Cover backrest leather left | LCRO COGNAC | 1 | 52207457787 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | LCRO COGNAC | 1 | 52207457788 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam |
LCFF=Yes LCFI=Yes |
|||||||||
| 02 | Cover backrest leather left | LCFF ELF.WEISS | 1 | 52207457783 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | LCFF ELF.WEISS | 1 | 52207457784 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LZFF=Yes LZFI=Yes |
|||||||||
| 02 | Cover backrest leather left | ELFENBEINWEISS | 1 | 52207455917 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | ELFENBEINWEISS | 1 | 52207455918 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/canberra-beige or Leather 'Dakota' canberrabeige / black |
LCCY=Yes LCFY=Yes |
|||||||||
| 02 | Cover backrest leather left | LCCY CAN.BEIGE | 1 | 52207455901 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | LCCY CAN.BEIGE | 1 | 52207455902 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/Canberra beige/excl.seam or Leather Dakota Canberra beige |
LCDO=Yes LCEA=Yes |
|||||||||
| 02 | Cover backrest leather left | LCDO CAN.BEIGE | 1 | 52207457781 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | LCDO CAN.BEIGE | 1 | 52207457782 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 03 | Cover, backrest, center, leather, lower | LCNL SCHW.BLAU | 1 | 52208068269 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/night blue/exclusive seam |
LCTJ=Yes |
|||||||||
| 03 | Cover, backrest, center, leather, lower | NACHTBLAU | 1 | 52207465882 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 03 | Cover, backrest, leather, lower | MOKKA | 1 | 52207455925 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/black |
KHSW=Yes |
|||||||||
| 03 | Cover, backrest, vinyl, center lower | SCHWARZ | 1 | 52206900820 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac |
KHRI=Yes |
|||||||||
| 03 | Cover, backrest, vinyl, center lower | COGNAC | 1 | 52206900834 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige |
KHFY=Yes |
|||||||||
| 03 | Cover, backrest, vinyl, center lower | CANBERRABEIGE | 1 | 52206900833 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Rhombicle Alcantara anthracite |
HRAT=Yes |
|||||||||
| 03 | Cover backrest center Alcantara bottom | ANTHRAZIT | 1 | 52208070965 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth junction / anthracite |
BYAT=Yes |
|||||||||
| 03 | Cover backrest cloth center bottom | ANTHRAZIT | 1 | 52207455828 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 03 | Cover, backrest, leather, lower | SCHWARZ | 1 | 52207455924 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
LCCY=Yes LCDO=Yes |
|||||||||
| 03 | Cover, backrest, center, leather, lower | LCCY CAN.BEIGE | 1 | 52207455909 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam |
LCRI=Yes LCRO=Yes |
|||||||||
| 03 | Cover, backrest, center, leather, lower | LCRI COGNAC | 1 | 52207455912 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LZFF=Yes LZFI=Yes |
|||||||||
| 03 | Cover, backrest, leather, lower | ELFENBEINWEISS | 1 | 52207455923 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam |
LCEW=Yes LCFF=Yes LCFI=Yes |
|||||||||
| 03 | Cover, backrest, center, leather, lower | LCEW ELF.WEISS | 1 | 52207455910 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather plectoid / anthracite or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
CNAT=Yes LCFK=Yes LCSW=Yes |
|||||||||
| 03 | Cover, backrest, center, leather, lower | LCSW SCHWARZ | 1 | 52207455911 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 04 | Cover, backrest, center, leather, upper | LCNL SCHW.BLAU | 1 | 52208070287 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/night blue/exclusive seam |
LCTJ=Yes |
|||||||||
| 04 | Cover, backrest, center, leather, upper | NACHTBLAU | 1 | 52207465881 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 04 | Cover, backrest, leather, upper | MOKKA | 1 | 52207455983 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/black |
KHSW=Yes |
|||||||||
| 04 | Cover, backrest, center, vinyl, upper | SCHWARZ | 1 | 52206900835 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac |
KHRI=Yes |
|||||||||
| 04 | Cover, backrest, center, vinyl, upper | COGNAC | 1 | 52206900837 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige |
KHFY=Yes |
|||||||||
| 04 | Cover, backrest, center, vinyl, upper | CANBERRABEIGE | 1 | 52206900836 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Rhombicle Alcantara anthracite |
HRAT=Yes |
|||||||||
| 04 | Cover backrest center Alcantara top | ANTHRAZIT | 1 | 52208070967 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth junction / anthracite |
BYAT=Yes |
|||||||||
| 04 | Cover backrest cloth center top | ANTHRAZIT | 1 | 52207455943 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 04 | Cover, backrest, leather, upper | SCHWARZ | 1 | 52207455982 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
LCCY=Yes LCDO=Yes |
|||||||||
| 04 | Cover, backrest, center, leather, upper | LCCY CAN.BEIGE | 1 | 52207455946 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam |
LCRI=Yes LCRO=Yes |
|||||||||
| 04 | Cover, backrest, center, leather, upper | LCRI COGNAC | 1 | 52207455949 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LZFF=Yes LZFI=Yes |
|||||||||
| 04 | Cover, backrest, leather, upper | ELFENBEINWEISS | 1 | 52207455981 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam |
LCEW=Yes LCFF=Yes LCFI=Yes |
|||||||||
| 04 | Cover, backrest, center, leather, upper | LCEW ELF.WEISS | 1 | 52207455947 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather plectoid / anthracite or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
CNAT=Yes LCFK=Yes LCSW=Yes |
|||||||||
| 04 | Cover, backrest, center, leather, upper | LCSW SCHWARZ | 1 | 52207455948 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/night blue/exclusive seam |
LCTJ=Yes |
|||||||||
| 05 | Side finisher, leather, left | NACHTBLAU | 1 | 52207465903 | Shop at ECS Tuning | |||||
| 05 | Side finisher, leather, right | NACHTBLAU | 1 | 52207465904 | Shop at ECS Tuning | |||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 05 | Side finisher, leather, left | MOKKA | 1 | 52207456315 | NoS | Shop at ECS Tuning | ||||
| 05 | Side finisher, leather, right | MOKKA | 1 | 52207456316 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec perforated/black |
KHSW=Yes |
|||||||||
| 05 | Side section, imitation leather, left | SCHWARZ | 1 | 52207456301 | NoS | Shop at ECS Tuning | ||||
| 05 | Side section, imitation leather, right | SCHWARZ | 1 | 52207456302 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac |
KHRI=Yes |
|||||||||
| 05 | Side section, imitation leather, left | COGNAC | 1 | 52209874371 | NoS | Shop at ECS Tuning | ||||
| 05 | Side section, imitation leather, right | COGNAC | 1 | 52209874372 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige |
KHFY=Yes |
|||||||||
| 05 | Side section, imitation leather, left | CANBERRABEIGE | 1 | 52207456299 | NoS | Shop at ECS Tuning | ||||
| 05 | Side section, imitation leather, right | CANBERRABEIGE | 1 | 52207456300 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Rhombicle Alcantara anthracite |
HRAT=Yes |
|||||||||
| 05 | Side section Alcantara, left | ANTHRAZIT | 1 | 52208070975 | Shop at ECS Tuning | |||||
| 05 | Side section Alcantara, right | ANTHRAZIT | 1 | 52208070976 | Shop at ECS Tuning | |||||
| For vehicles with Cloth junction / anthracite |
BYAT=Yes |
|||||||||
| 05 | Side finisher cloth, left | ANTHRAZIT | 1 | 52207456297 | Shop at ECS Tuning | |||||
| 05 | Side finisher cloth, right | ANTHRAZIT | 1 | 52207456298 | Shop at ECS Tuning | |||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 05 | Side finisher, leather, left | SCHWARZ | 1 | 52207456313 | Shop at ECS Tuning | |||||
| 05 | Side finisher, leather, right | SCHWARZ | 1 | 52207456314 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
LCCY=Yes LCDO=Yes |
|||||||||
| 05 | Side finisher, leather, left | LCCY CAN.BEIGE | 1 | 52207456303 | Shop at ECS Tuning | |||||
| 05 | Side finisher, leather, right | LCCY CAN.BEIGE | 1 | 52207456304 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam |
LCRI=Yes LCRO=Yes |
|||||||||
| 05 | Side finisher, leather, left | LCRI COGNAC | 1 | 52207456309 | Shop at ECS Tuning | |||||
| 05 | Side finisher, leather, right | LCRI COGNAC | 1 | 52207456310 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LZFF=Yes LZFI=Yes |
|||||||||
| 05 | Side finisher, leather, left | ELFENBEINWEISS | 1 | 52207456311 | Shop at ECS Tuning | |||||
| 05 | Side finisher, leather, right | ELFENBEINWEISS | 1 | 52207456312 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam |
LCEW=Yes LCFF=Yes LCFI=Yes |
|||||||||
| 05 | Side finisher, leather, left | LCEW ELF.WEISS | 1 | 52207456305 | NoS | Shop at ECS Tuning | ||||
| 05 | Side finisher, leather, right | LCEW ELF.WEISS | 1 | 52207456306 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather plectoid / anthracite or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
CNAT=Yes LCFK=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 05 | Side finisher, leather, left | LCSW SCHWARZ | 1 | 52207456307 | Shop at ECS Tuning | |||||
| 05 | Side finisher, leather, right | LCSW SCHWARZ | 1 | 52207456308 | Shop at ECS Tuning | |||||
| 06 | Foam insert, armrest, center lower | 1 | 52207386063 | Shop at ECS Tuning | ||||||
| 07 | Insert backrest center top | 1 | 52207400707 | Shop at ECS Tuning | ||||||
| 08 | Foam section, seat | 1 | 52207386056 | Shop at ECS Tuning | ||||||
| 08 | Foam section, seat | PHEV | 1 | 52209891743 | NoS | Shop at ECS Tuning | ||||
| 09 | Foam padding, backrest, right | 1 | 52207386060 | Shop at ECS Tuning | ||||||
| 09 | Foam padding, backrest, left | 1 | 52207386061 | Shop at ECS Tuning | ||||||
| For vehicles with Seat heating, front and rear |
S4HAA=Yes |
|||||||||
| 10 | Seat heating seat cushion surface left | 1 | 52207397837 | Shop at ECS Tuning | ||||||
| 10 | Seat heating seat cushion surface right | 1 | 52207397838 | Shop at ECS Tuning | ||||||
| For vehicles with Seat heating, front and rear |
S4HAA=No |
|||||||||
| 10 | Seat pad, left | 1 | 52207388153 | Shop at ECS Tuning | ||||||
| 10 | Seat pad, right | 1 | 52207388154 | Shop at ECS Tuning | ||||||
| For vehicles with Seat heating, front and rear |
S4HAA=Yes |
|||||||||
| 11 | Seat heating backrest | 2 | 52207397835 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat heating, front and rear |
S4HAA=No |
|||||||||
| 11 | Pad for backrest | 2 | 52207412883 | Shop at ECS Tuning | ||||||
| For vehicles with Seat heating, front and rear |
S4HAA=Yes |
|||||||||
| 12 | Carrier plate | 2 | 52207435165 | Shop at ECS Tuning | ||||||
| 13 | Wire-strap | L=1800MM | 1 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 14 | Clamp | 1,6X20X10,1 | 50 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G31 Touring 520dX Seat, rear, upholstery and cover?
- This technical diagram illustrates the Seat, rear, upholstery and cover within the Seats group for the 5 Series G31 Touring 520dX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Seat cover leather (Part #52208089506).
- Which models use the hardware listed in this Seat, rear, upholstery and cover?
- The hardware and components featured in the Seat, rear, upholstery and cover are specific to the 5 Series G31 Touring 520dX produced during 2018. These technical specifications ensure that parts like the Seat cover leather (52208089506) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, rear, upholstery and cover assembly?
- Each item in the Seat, rear, upholstery and cover corresponds to the numbered list below the illustration. For the 5 Series G31 Touring 520dX, you can identify the Seat cover leather by locating its position on the schematic, which then links to the official BMW part number 52208089506 for the Seats section.
