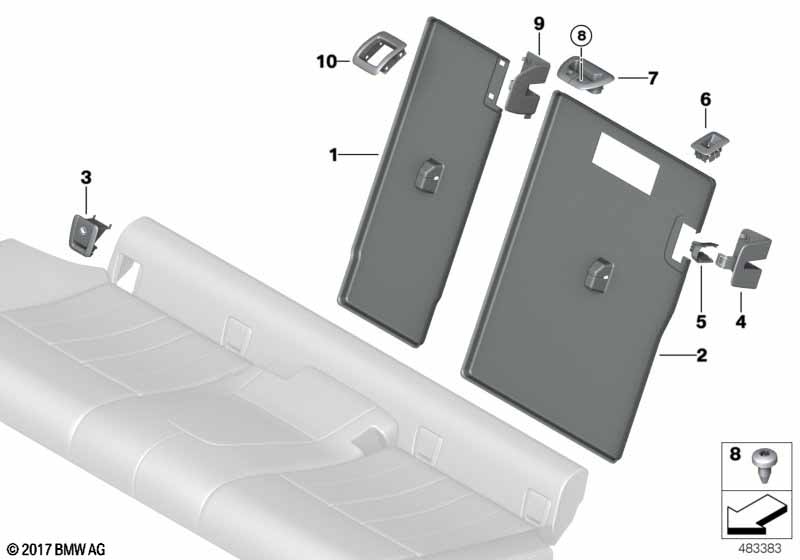

Seat, rear, seat trim covers for BMW 5 Series G31 Touring 520dX (2020)
This Seat, rear, seat trim covers technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
LCCY=Yes LCDO=Yes |
|||||||||
| 01 | Trim for backrest, center | 20%, CAN.BEIGE | 1 | 52207452579 | Shop at ECS Tuning | |||||
| For vehicles with Cloth junction / anthracite or Cloth/leather plectoid / anthracite or Cloth Rhombicle Alcantara anthracite or Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota/night blue/exclusive seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
BYAT=Yes CNAT=Yes HRAT=Yes LCEW=Yes LCFF=Yes LCFI=Yes LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LCTJ=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 01 | Trim for backrest, center | 20%, SCHWARZ | 1 | 52207452581 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
LCCY=Yes LCDO=Yes |
|||||||||
| 02 | Trim backrest, left | CANBERRABEIGE | 1 | 52207452615 | NoS | Shop at ECS Tuning | ||||
| 02 | Trim backrest, right | CANBERRABEIGE | 1 | 52207452616 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth junction / anthracite or Cloth/leather plectoid / anthracite or Cloth Rhombicle Alcantara anthracite or Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota/night blue/exclusive seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
BYAT=Yes CNAT=Yes HRAT=Yes LCEW=Yes LCFF=Yes LCFI=Yes LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LCTJ=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 02 | Trim backrest, left | SCHWARZ | 1 | 52207452617 | NoS | Shop at ECS Tuning | ||||
| 02 | Trim backrest, right | SCHWARZ | 1 | 52207452618 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Excl. leather Nappa/mocca/exclusive seam |
S230A=Yes LZNI=Yes |
|||||||||
| 03 | Cover isofix | MOKKA | 4 | 52207468910 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Leather Dakota/night blue/exclusive seam |
S230A=Yes LCTJ=Yes |
|||||||||
| 03 | Cover isofix | NACHTBLAU | 4 | 52207468912 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Excl. leather Nappa/mocca/exclusive seam |
S230A=No LZNI=Yes |
|||||||||
| 03 | Cover isofix | MOKKA | 4 | 52207468907 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam |
S230A=Yes LCRI=Yes LCRO=Yes |
|||||||||
| 03 | Cover isofix | COGNAC | 4 | 52207468911 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
S230A=Yes LCCY=Yes LCDO=Yes |
|||||||||
| 03 | Cover isofix | CANBERRABEIGE | 4 | 52207453597 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam |
S230A=No LCRI=Yes LCRO=Yes |
|||||||||
| 03 | Cover isofix | COGNAC | 4 | 52207468908 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
S230A=Yes LCEW=Yes LCFF=Yes LCFI=Yes LZFF=Yes LZFI=Yes |
|||||||||
| 03 | Cover isofix | ELFENBEINWEISS | 4 | 52207453598 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Cloth junction / anthracite or Cloth/leather plectoid / anthracite or Cloth Rhombicle Alcantara anthracite or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz or Excl.leather Nappa/black/exclusive seam |
S230A=Yes BYAT=Yes CNAT=Yes HRAT=Yes LCFK=Yes LCNL=Yes LCSW=Yes LZFK=Yes |
|||||||||
| 03 | Cover isofix | SCHWARZ | 4 | 52207453599 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
LCCY=Yes LCDO=Yes |
|||||||||
| 04 | Trim cover, lock | CANBERRABEIGE | 2 | 52207453607 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth junction / anthracite or Cloth/leather plectoid / anthracite or Cloth Rhombicle Alcantara anthracite or Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota/night blue/exclusive seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
BYAT=Yes CNAT=Yes HRAT=Yes LCEW=Yes LCFF=Yes LCFI=Yes LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LCTJ=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 04 | Trim cover, lock | SCHWARZ | 2 | 52207453608 | Shop at ECS Tuning | |||||
| 05 | Lock panel | 2 | 52207479910 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
LCCY=Yes LCDO=Yes |
|||||||||
| 06 | Cover, control | CANBERRABEIGE | 2 | 52207453919 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LCEW=Yes LCFF=Yes LCFI=Yes LZFF=Yes LZFI=Yes |
|||||||||
| 06 | Cover, control | ELFENBEINWEISS | 2 | 52207453921 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth junction / anthracite or Cloth/leather plectoid / anthracite or Cloth Rhombicle Alcantara anthracite or Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota/night blue/exclusive seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
BYAT=Yes CNAT=Yes HRAT=Yes LCEW=Yes LCFF=Yes LCFI=Yes LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LCTJ=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 06 | Cover, control | SCHWARZ | 2 | 52207453923 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
LCCY=Yes LCDO=Yes |
|||||||||
| 07 | Cover, belt outlet | CANBERRABEIGE | 1 | 52207453586 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LCEW=Yes LCFF=Yes LCFI=Yes LZFF=Yes LZFI=Yes |
|||||||||
| 07 | Cover, belt outlet | ELFENBEINWEISS | 1 | 52207453588 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth junction / anthracite or Cloth/leather plectoid / anthracite or Cloth Rhombicle Alcantara anthracite or Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota/night blue/exclusive seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
BYAT=Yes CNAT=Yes HRAT=Yes LCEW=Yes LCFF=Yes LCFI=Yes LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LCTJ=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 07 | Cover, belt outlet | SCHWARZ | 1 | 52207453593 | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | M5X10-ZNNID SW | 2 | 07146777838 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
LCCY=Yes LCDO=Yes |
|||||||||
| 09 | Trim cover, lock | CANBERRABEIGE | 1 | 52207453603 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth junction / anthracite or Cloth/leather plectoid / anthracite or Cloth Rhombicle Alcantara anthracite or Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota/night blue/exclusive seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
BYAT=Yes CNAT=Yes HRAT=Yes LCEW=Yes LCFF=Yes LCFI=Yes LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LCTJ=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 09 | Trim cover, lock | SCHWARZ | 1 | 52207453604 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
LCCY=Yes LCDO=Yes |
|||||||||
| 10 | Trim for control, center | CANBERRABEIGE | 1 | 52207453577 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LCEW=Yes LCFF=Yes LCFI=Yes LZFF=Yes LZFI=Yes |
|||||||||
| 10 | Trim for control, center | ELFENBEINWEISS | 1 | 52207453579 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth junction / anthracite or Cloth/leather plectoid / anthracite or Cloth Rhombicle Alcantara anthracite or Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota/night blue/exclusive seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
BYAT=Yes CNAT=Yes HRAT=Yes LCEW=Yes LCFF=Yes LCFI=Yes LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LCTJ=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 10 | Trim for control, center | SCHWARZ | 1 | 52207453585 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
