Seat rear, uphols & cover, Comfort seat for BMW 5 Series G38 530LiX (2020)

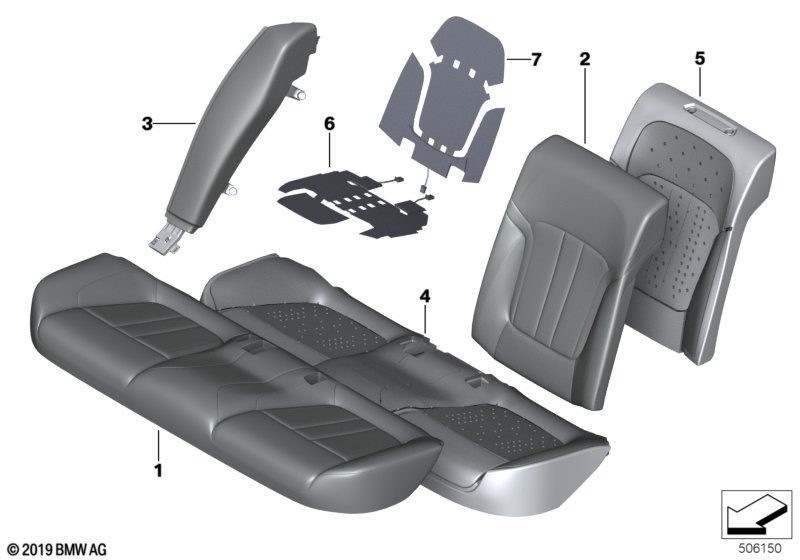

This Seat rear, uphols & cover, Comfort seat technical drawing provides a detailed breakdown of the assembly for the 5 Series G38 530LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Comfort seat, rear, electr. adjustable |
S460A=Yes |
||||||||
| For vehicles with Leather Dakota/tacora red |
LCG7=Yes |
|||||||||
| 01 | Seat cover leather | TACORAROT | 1 | 52207454508 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige |
LCCY=Yes |
|||||||||
| 01 | Seat cover leather | CAN.BEIGE | 1 | 52207454506 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Seat cover leather | SCHWARZ | 1 | 52207454507 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Dakota/cognac |
LCRI=Yes |
|||||||||
| 01 | Seat cover leather | COGNAC | 1 | 52207454509 | Shop at ECS Tuning | |||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 01 | Seat cover leather | SCHWARZ | 1 | 52207456180 | Shop at ECS Tuning | |||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 01 | Seat cover leather | MOKKA | 1 | 52207456181 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive leather Nappa/ivory white |
LZFF=Yes |
|||||||||
| 01 | Seat cover leather | ELFENBEINWEISS | 1 | 52207456179 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Leather Dakota/canberra-beige |
S454A=Yes LCCY=Yes |
|||||||||
| 01 | Upholstery, seat rear perforated leather | CAN.BEIGE | 1 | 52207456165 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Leather "Dakota"/schwarz |
S454A=Yes LCSW=Yes |
|||||||||
| 01 | Upholstery, seat rear perforated leather | SCHWARZ | 1 | 52207456166 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Leather, Dakota/cognac |
S454A=Yes LCRI=Yes |
|||||||||
| 01 | Upholstery, seat rear perforated leather | COGNAC | 1 | 52207456168 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Exclusive leather Nappa/ivory white |
S454A=Yes LZFF=Yes |
|||||||||
| 01 | Seat cover leather | ELFENBEINWEISS | 1 | 52207456182 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Leather Dakota/tacora red |
S454A=Yes LCG7=Yes |
|||||||||
| 01 | Upholstery, seat rear perforated leather | TACORAROT | 1 | 52207456167 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Excl.leather Nappa/black/exclusive seam |
S454A=Yes LZFK=Yes |
|||||||||
| 01 | Seat cover leather | SCHWARZ | 1 | 52207456191 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Excl. leather Nappa/mocca/exclusive seam |
S454A=Yes LZNI=Yes |
|||||||||
| 01 | Seat cover leather | MOKKA | 1 | 52207456192 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/tacora red |
LCG7=Yes |
|||||||||
| 02 | Cover for comfort backrest,leather left | TACORAROT | 1 | 52207454469 | Shop at ECS Tuning | |||||
| 02 | Cover for comfort backrest,leather right | TACORAROT | 1 | 52207454470 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige |
LCCY=Yes |
|||||||||
| 02 | Cover for comfort backrest,leather left | CAN.BEIGE | 1 | 52207454465 | Shop at ECS Tuning | |||||
| 02 | Cover for comfort backrest,leather right | CAN.BEIGE | 1 | 52207454466 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 02 | Cover for comfort backrest,leather left | SCHWARZ | 1 | 52207454467 | Shop at ECS Tuning | |||||
| 02 | Cover for comfort backrest,leather right | SCHWARZ | 1 | 52207454468 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Dakota/cognac |
LCRI=Yes |
|||||||||
| 02 | Cover for comfort backrest,leather left | COGNAC | 1 | 52207454471 | Shop at ECS Tuning | |||||
| 02 | Cover for comfort backrest,leather right | COGNAC | 1 | 52207454472 | Shop at ECS Tuning | |||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 02 | Cover backrest leather left | SCHWARZ | 1 | 52207456187 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | SCHWARZ | 1 | 52207456188 | Shop at ECS Tuning | |||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 02 | Cover backrest leather left | MOKKA | 1 | 52207456189 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | MOKKA | 1 | 52207456190 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive leather Nappa/ivory white |
LZFF=Yes |
|||||||||
| 02 | Cover backrest leather left | ELFENBEINWEISS | 1 | 52207456185 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | ELFENBEINWEISS | 1 | 52207456186 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Leather Dakota/canberra-beige |
S454A=Yes LCCY=Yes |
|||||||||
| 02 | Cover, backrest, perforated leather, lft | CAN.BEIGE | 1 | 52207456171 | Shop at ECS Tuning | |||||
| 02 | Cover, backrest, perforated leather, rgt | CAN.BEIGE | 1 | 52207456172 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Leather "Dakota"/schwarz |
S454A=Yes LCSW=Yes |
|||||||||
| 02 | Cover, backrest, perforated leather, lft | SCHWARZ | 1 | 52207456173 | Shop at ECS Tuning | |||||
| 02 | Cover, backrest, perforated leather, rgt | SCHWARZ | 1 | 52207456174 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Leather, Dakota/cognac |
S454A=Yes LCRI=Yes |
|||||||||
| 02 | Cover, backrest, perforated leather, lft | COGNAC | 1 | 52207456177 | Shop at ECS Tuning | |||||
| 02 | Cover, backrest, perforated leather, rgt | COGNAC | 1 | 52207456178 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Exclusive leather Nappa/ivory white |
S454A=Yes LZFF=Yes |
|||||||||
| 02 | Cover backrest leather left | ELFENBEINWEISS | 1 | 52207456209 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | ELFENBEINWEISS | 1 | 52207456210 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Leather Dakota/tacora red |
S454A=Yes LCG7=Yes |
|||||||||
| 02 | Cover, backrest, perforated leather, lft | TACORAROT | 1 | 52207456175 | Shop at ECS Tuning | |||||
| 02 | Cover, backrest, perforated leather, rgt | TACORAROT | 1 | 52207456176 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Excl.leather Nappa/black/exclusive seam |
S454A=Yes LZFK=Yes |
|||||||||
| 02 | Cover backrest leather left | SCHWARZ | 1 | 52207456211 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | SCHWARZ | 1 | 52207456212 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Excl. leather Nappa/mocca/exclusive seam |
S454A=Yes LZNI=Yes |
|||||||||
| 02 | Cover backrest leather left | MOKKA | 1 | 52207456213 | Shop at ECS Tuning | |||||
| 02 | Cover backrest leather right | MOKKA | 1 | 52207456214 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/tacora red |
LCG7=Yes |
|||||||||
| 03 | Side finisher, leather, left | TACORAROT | 1 | 52207461575 | Shop at ECS Tuning | |||||
| 03 | Side finisher, leather, right | TACORAROT | 1 | 52207461576 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige |
LCCY=Yes |
|||||||||
| 03 | Side finisher, leather, left | CANBERRABEIGE | 1 | 52207461571 | Shop at ECS Tuning | |||||
| 03 | Side finisher, leather, right | CANBERRABEIGE | 1 | 52207461572 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 03 | Side finisher, leather, left | SCHWARZ | 1 | 52207461569 | Shop at ECS Tuning | |||||
| 03 | Side finisher, leather, right | SCHWARZ | 1 | 52207461570 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Dakota/cognac |
LCRI=Yes |
|||||||||
| 03 | Side finisher, leather, left | COGNAC | 1 | 52207461573 | Shop at ECS Tuning | |||||
| 03 | Side finisher, leather, right | COGNAC | 1 | 52207461574 | Shop at ECS Tuning | |||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 03 | Side finisher, leather, left | SCHWARZ | 1 | 52207461579 | Shop at ECS Tuning | |||||
| 03 | Side finisher, leather, right | SCHWARZ | 1 | 52207461580 | Shop at ECS Tuning | |||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 03 | Side finisher, leather, left | MOKKA | 1 | 52207461581 | Shop at ECS Tuning | |||||
| 03 | Side finisher, leather, right | MOKKA | 1 | 52207461582 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive leather Nappa/ivory white |
LZFF=Yes |
|||||||||
| 03 | Side finisher, leather, left | ELFENBEINWEISS | 1 | 52207461577 | Shop at ECS Tuning | |||||
| 03 | Side finisher, leather, right | ELFENBEINWEISS | 1 | 52207461578 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat, rear, electr. adjustable |
S460A=Yes |
|||||||||
| 04 | Foam section, seat | 1 | 52207402774 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear or Comfort seat, rear, electr. adjustable |
S454A=Yes S460A=Yes |
|||||||||
| 04 | Foam element, seat, perforated | 1 | 52207402777 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat, rear, electr. adjustable |
S460A=Yes |
|||||||||
| 05 | Foam padding, backrest, left | 1 | 52207402775 | Shop at ECS Tuning | ||||||
| 05 | Foam padding, backrest, right | 1 | 52207402776 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear or Comfort seat, rear, electr. adjustable |
S454A=Yes S460A=Yes |
|||||||||
| 05 | Foam pad, backrest, climate, left | 1 | 52207402779 | Shop at ECS Tuning | ||||||
| 05 | Foam pad, backrest, climate, right | 1 | 52207402780 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear and Seat heating, front and rear |
S454A=No S4HAA=Yes |
|||||||||
| 06 | Heating element, Comfort seat, left | 1 | 52207465125 | Shop at ECS Tuning | ||||||
| 06 | Heating element, comfort seat, right | 1 | 52207465126 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear and Seat heating, front and rear |
S454A=Yes S4HAA=Yes |
|||||||||
| 06 | Heating element, Comfort seat, left | 1 | 52207465127 | NoS | Shop at ECS Tuning | |||||
| 06 | Heating element, comfort seat, right | 1 | 52207465128 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, rear and Seat heating, front and rear |
S454A=No S4HAA=Yes |
|||||||||
| 07 | Heater element backrest, left | 1 | 52207465121 | Shop at ECS Tuning | ||||||
| 07 | Heater element backrest, right | 1 | 52207465122 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear and Seat heating, front and rear |
S454A=Yes S4HAA=Yes |
|||||||||
| 07 | Heater element, ventilated backrest, lft | 1 | 52207465123 | NoS | Shop at ECS Tuning | |||||
| 07 | Heater element, ventilated backrest, rgt | 1 | 52207465124 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
