Seat, rear, seat frame, load-through for BMW 6 Series G32 GT LCI 630d (2022)

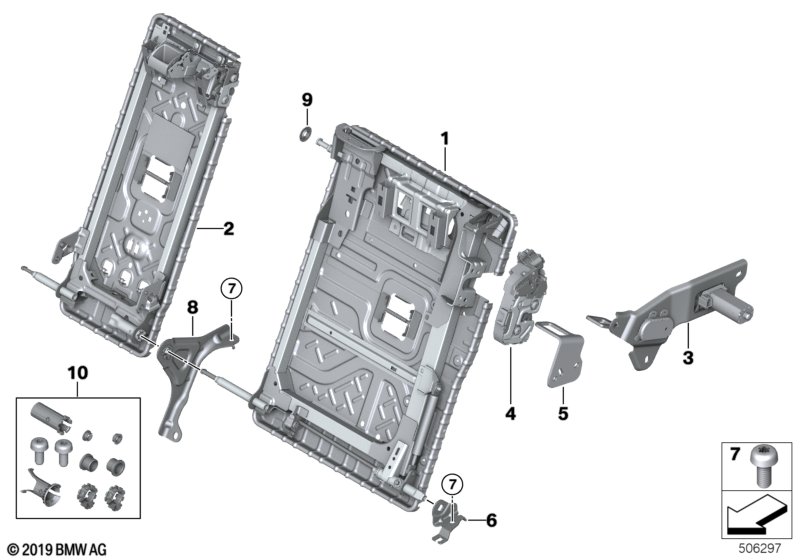

This Seat, rear, seat frame, load-through technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT LCI 630d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Backrest frame, load-through, left | 40% | 1 | 52207422657 | NoS | Shop at ECS Tuning | ||||
| 01 | Backrest frame, load-through, right | 40% | 1 | 52207422658 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest frame, center | 20% | 1 | 52207399221 | Shop at ECS Tuning | |||||
| For vehicles with Electric seat backrest adjustment, rear |
S461A=Yes |
|||||||||
| 03 | Adjuster unit, rear left | 1 | 52207404187 | Shop at ECS Tuning | ||||||
| 03 | Adjuster unit, rear right | 1 | 52207404188 | Shop at ECS Tuning | ||||||
| 04 | Lock left | 1 | 52207408045 | Shop at ECS Tuning | ||||||
| 04 | Lock right | 1 | 52207408046 | Shop at ECS Tuning | ||||||
| For vehicles with Electric seat backrest adjustment, rear |
S461A=No |
|||||||||
| 05 | Lock striker, left | 1 | 52207426031 | NoS | Shop at ECS Tuning | |||||
| 05 | Lock striker, right | 1 | 52207426032 | NoS | Shop at ECS Tuning | |||||
| 06 | Bearing exterior left | 1 | 52207402709 | NoS | Shop at ECS Tuning | |||||
| 06 | Bearing exterior right | 1 | 52207402710 | NoS | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | M10X22 | 6 | 07149148299 | Shop at ECS Tuning | |||||
| For vehicles with Electric seat backrest adjustment, rear |
S461A=Yes |
|||||||||
| 07 | Fillister head screw | M10X22 | 6 | 07149148299 | Shop at ECS Tuning | |||||
| 08 | Bearing center left | 1 | 52207402711 | NoS | Shop at ECS Tuning | |||||
| 08 | Bearing center right | 1 | 52207402712 | Shop at ECS Tuning | ||||||
| For vehicles with Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LCFF=Yes LCFI=Yes LZFF=Yes LZFI=Yes |
|||||||||
| 09 | Cover | ELFENBEINWEISS | 1 | 52207436808 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam or Leather Dakota Canberra beige or Leather 'Dakota' canberrabeige / black |
LCCY=Yes LCDO=Yes LCEA=Yes LCFY=Yes |
|||||||||
| 09 | Cover | CANBERRABEIGE | 1 | 52207436807 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Exclusive leather Nappa/ivory white or Excl. leather Nappa/mocca/exclusive seam |
LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LZFI=Yes LZNI=Yes |
|||||||||
| 09 | Trim lock bolt | SCHWARZ | 1 | 52207436809 | Shop at ECS Tuning | |||||
| 10 | Repair kit bush bearing | 1 | 52206994316 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
