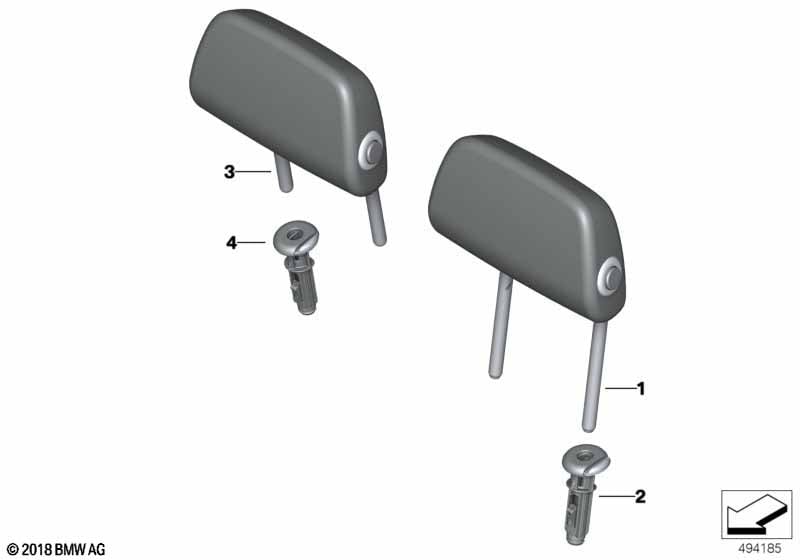

Rear seat head restraint for BMW 3 Series G20 Sedan 320iX (2022)
This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Rear-seat headrests, folding and Leather Vernasca/mocca decor.stitching |
S5DCA=Yes MAMU=Yes |
|||||||||
| 01 | Head restraint folding outer | MOKKA | 2 | 01/2021 | 52205A3B163 | Shop at ECS Tuning | ||||
| For vehicles with Rear-seat headrests, folding and Leather, black, with dec.stitching |
S5DCA=Yes MANJ=Yes |
|||||||||
| 01 | Head restraint | SCHWARZ/ORANGE | 2 | 52207951845 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Rear-seat headrests, folding and Cloth Hevelius/anthracite |
S5DCA=Yes EHAT=Yes |
|||||||||
| 01 | Head rest cloth | SCHWARZ | 2 | 52207499576 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Rear-seat headrests, folding and Leather Vernasca/ oyster dec.stitching |
S5DCA=Yes MAOI=Yes |
|||||||||
| 01 | Head restraint folding outer | OYSTER | 2 | 52205A3B164 | Shop at ECS Tuning | |||||
| 01 | Headrest leather | OYSTER | 2 | 52208498543 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Rear-seat headrests, folding and Sensatec/black |
S5DCA=Yes KCSW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 52208495082 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Rear-seat headrests, folding and Leather, Vernasca, black, gray stitching |
S5DCA=Yes MAH7=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52207943060 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Rear-seat headrests, folding and Ind.leather extended/Fiona red/black or Individual full leather, Fiona Red/black |
S5DCA=Yes VAHZ=Yes VBHZ=Yes |
|||||||||
| 01 | Folding head restraint leather outer | SCHWARZ ROT | 2 | 52208097680 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Rear-seat headrests, folding and Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching |
S5DCA=Yes KHKC=Yes MAPQ=Yes |
|||||||||
| 01 | Head restraint folding outer | COGNAC | 2 | 01/2021 | 52205A04398 | Shop at ECS Tuning | ||||
| For vehicles with Rear-seat headrests, folding and Leather Merino ivory white or Individual full leather, ivory white |
S5DCA=Yes VAEW=Yes VBEW=Yes |
|||||||||
| 01 | Headrest leather | ELFENBEIWEISS | 2 | 52208097678 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Rear-seat headrests, folding and Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. |
S5DCA=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 01 | Headrest leather | CANBERRABEIGE | 2 | 01/2021 | 52207943059 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Rear-seat headrests, folding and Sensatec perforated/Tacora red or Leather Vernasca/tacora red dec.stitch. |
S5DCA=Yes KHG7=Yes MAG6=Yes |
|||||||||
| 01 | Head restraint folding outer | TACORAROT | 2 | 52205A1C227 | Shop at ECS Tuning | |||||
| For vehicles with Rear-seat headrests, folding and Sensatec/canberra-beige or Sensatec/canberra-beige |
S5DCA=Yes KCCY=Yes KCFY=Yes |
|||||||||
| 01 | Headrest imitation leather | CANBERRABEIGE | 2 | 52208495081 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Rear-seat headrests, folding and Leather Merino tartufo or Individual full leather, tartufo |
S5DCA=Yes VATQ=Yes VBTQ=Yes |
|||||||||
| 01 | Folding head restraint leather outer | TARTUFO | 2 | 52208097679 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Rear-seat headrests, folding and Alcantara sensatec.black / blue or Leather, Vernasca, black, blue stitching |
S5DCA=Yes KGNL=Yes MANL=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 52208094288 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Rear-seat headrests, folding and Fabric sensatec./ black or Sensatec perforated/black or Leather, Vernasca, black, gray stitching |
S5DCA=Yes KFSW=Yes KHSW=Yes MAH7=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 52207951844 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/canberra-beige or Sensatec/canberra-beige or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige or Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. |
KCCY=Yes KCFY=Yes KHFR=Yes KHFY=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 02 | Guide, headrest | CANBERRABEIGE | 2 | 52207499577 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/canberra-beige or Sensatec/canberra-beige or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige or Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. With button |
KCCY=Yes KCFY=Yes KHFR=Yes KHFS=Yes KHFY=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 02 | Guide, headrest, lockable | CANBERRABEIGE | 2 | 52207470131 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Cloth Hevelius/anthracite or Sensatec/black or Fabric sensatec./ black or Alcantara sensatec.black / blue or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, black, with dec.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather, Vernasca, cognac, gy stitching |
L8AAA=No EHAT=Yes KCSW=Yes KFSW=Yes KGNL=Yes MAH7=Yes MAMU=Yes MANJ=Yes MANL=Yes MAOI=Yes MAPQ=Yes |
|||||||||
| 02 | Guide, headrest | SCHWARZ | 2 | 52207499578 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Hevelius/anthracite or Sensatec/black or Fabric sensatec./ black or Alcantara sensatec.black / blue or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather Vernasca/Canberra beige or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, black, with dec.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather, Vernasca, cognac, gy stitching or Leather Merino ivory white or Ind.leather extended/Fiona red/black or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, Fiona Red/black or Individual full leather, tartufo With button |
EHAT=Yes KCSW=Yes KFSW=Yes KGNL=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAFY=Yes MAG6=Yes MAH7=Yes MAMU=Yes MANJ=Yes MANL=Yes MAOI=Yes MAPQ=Yes VAEW=Yes VAHZ=Yes VATQ=Yes VBEW=Yes VBHZ=Yes VBTQ=Yes |
|||||||||
| 02 | Guide, headrest, lockable | SCHWARZ | 2 | 52207470124 | Shop at ECS Tuning | |||||
| For vehicles with Ind.leather extended/Fiona red/black or Individual full leather, Fiona Red/black |
VAHZ=Yes VBHZ=Yes |
|||||||||
| 03 | Head restraint, leather, center | SCHWARZ ROT | 1 | 52205A06041 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino ivory white or Individual full leather, ivory white |
VAEW=Yes VBEW=Yes |
|||||||||
| 03 | Folding headrest, rear center | ELFENBEINWEISS | 1 | 52205A06040 | Shop at ECS Tuning | |||||
| For vehicles with Leather Merino tartufo or Individual full leather, tartufo |
VATQ=Yes VBTQ=Yes |
|||||||||
| 03 | Head restraint leather center | TARTUFO | 1 | 52205A06042 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Rear-seat headrests, folding and Leather Vernasca/mocca decor.stitching |
S465A=Yes S5DCA=Yes MAMU=Yes |
|||||||||
| 03 | Folding head restr., leather,rear cent. | MOKKA | 1 | 52205A05884 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Rear-seat headrests, folding and Leather, black, with dec.stitching |
S465A=Yes S5DCA=Yes MANJ=Yes |
|||||||||
| 03 | Folding head restr., leather,rear cent. | SCHWARZ | 1 | 52205A05883 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Rear-seat headrests, folding and Cloth Hevelius/anthracite |
S465A=Yes S5DCA=Yes EHAT=Yes |
|||||||||
| 03 | Folding headrest, cloth, center rear | ANTHRAZIT | 1 | 52205A05880 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Rear-seat headrests, folding and Leather Vernasca/ oyster dec.stitching |
S465A=Yes S5DCA=Yes MAOI=Yes |
|||||||||
| 03 | Folding head restr., leather,rear cent. | OYSTER | 1 | 52205A05885 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Rear-seat headrests, folding and Sensatec/black |
S465A=Yes S5DCA=Yes KCSW=Yes |
|||||||||
| 03 | Fold.headrest, synth.leather, cen.rear | SCHWARZ | 1 | 52205A05879 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Rear-seat headrests, folding and Alcantara sensatec.black / blue or Leather, Vernasca, black, blue stitching |
S465A=Yes S5DCA=Yes KGNL=Yes MANL=Yes |
|||||||||
| 03 | Folding head restr., leather,rear cent. | SCHWARZ | 1 | 52205A05982 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Rear-seat headrests, folding and Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching |
S465A=Yes S5DCA=Yes KHKC=Yes MAPQ=Yes |
|||||||||
| 03 | Folding head restr., leather,rear cent. | COGNAC | 1 | 52205A05886 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Rear-seat headrests, folding and Sensatec/canberra-beige or Sensatec/canberra-beige |
S465A=Yes S5DCA=Yes KCCY=Yes KCFY=Yes |
|||||||||
| 03 | Headrest imitation leather | CANBERRABEIGE | 1 | 52205A05870 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Rear-seat headrests, folding and Fabric sensatec./ black or Sensatec perforated/black or Leather, Vernasca, black, gray stitching |
S465A=Yes S5DCA=Yes KFSW=Yes KHSW=Yes MAH7=Yes |
|||||||||
| 03 | Folding head restr., leather,rear cent. | SCHWARZ | 1 | 52205A05882 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system and Rear-seat headrests, folding and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. or Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. |
S465A=Yes S5DCA=Yes KHFR=Yes KHFS=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 03 | Folding head restr., leather,rear cent. | CANBERRABEIGE | 1 | 52205A05881 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sensatec/canberra-beige or Sensatec/canberra-beige or Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. |
L8AAA=No KCCY=Yes KCFY=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 04 | Guide, head restraint, center, locking | CANBERRABEIGE | 2 | 52207499579 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version China and Cloth Hevelius/anthracite or Sensatec/black or Fabric sensatec./ black or Alcantara sensatec.black / blue or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, black, with dec.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather, Vernasca, cognac, gy stitching |
L8AAA=No EHAT=Yes KCSW=Yes KFSW=Yes KGNL=Yes MAH7=Yes MAMU=Yes MANJ=Yes MANL=Yes MAOI=Yes MAPQ=Yes |
|||||||||
| 04 | Guide, head restraint, center, locking | SCHWARZ | 2 | 52207499580 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
