Seat, front, seat frame, manual for BMW 3 Series G20 Sedan LCI 318i (2024)

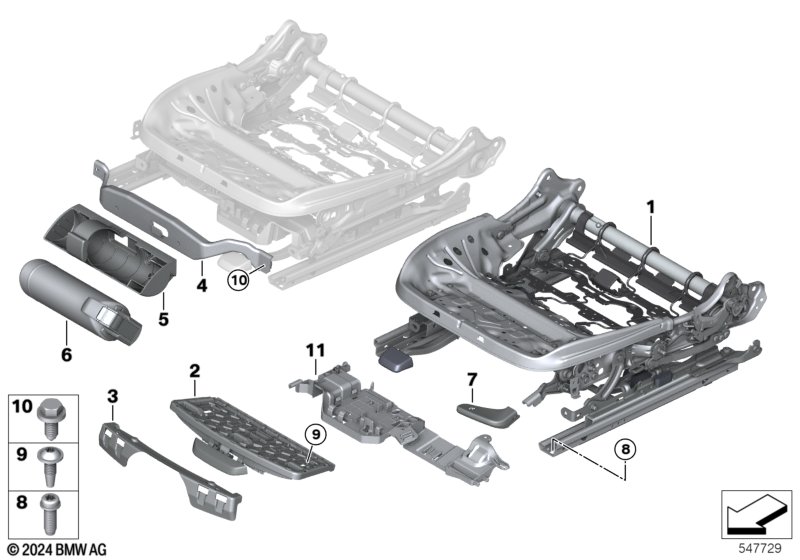

This Seat, front, seat frame, manual technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory and Backrest width adjustment driver |
S459A=No S491A=Yes |
|||||||||
| 01 | Seat mech. assembly, Sport seat, left | 1 | 52107414603 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Backrest frame, left | 1 | 52107414615 | Shop at ECS Tuning | ||||||
| 01 | Seat mech. assembly, Sport seat, right | 1 | 52107414604 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Backrest frame, right | 1 | 52107414616 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat and Backrest width adjustment driver Installation of the seat mechanism is approved only with backrest frame! |
S459A=No S481A=Yes S491A=No |
|||||||||
| 01 | Seat mechanism, basic seat, left | 1 | 52107414601 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Backrest frame, left | 1 | 52107414615 | Shop at ECS Tuning | ||||||
| -- | Set of small parts | 1 | 52107459852 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Adjuster, backrest width and Backrest width adjustment driver Installation of the seat mechanism is approved only with backrest frame! |
S459A=No S490A=Yes S491A=No |
|||||||||
| 01 | Seat mechanism, basic seat, right | 1 | 52107414602 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Backrest frame, left | 1 | 52107414615 | Shop at ECS Tuning | ||||||
| -- | Set of small parts | 1 | 52107459852 | NoS | Shop at ECS Tuning | |||||
| 02 | Carrier thigh support | 2 | 52107414576 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports seats |
S711A=Yes |
|||||||||
| 03 | Trim thigh support | 2 | 52108072075 | Shop at ECS Tuning | ||||||
| 04 | Fire extinguisher holder | 1 | 52109484098 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fire extinguisher and Country control Indonesia |
S421A=Yes S8LKA=Yes |
|||||||||
| 06 | Fire extinguisher | 2 | 52105A3C122 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=No |
|||||||||
| 07 | Lever, seat tilt adjustment, left | 1 | 52107415095 | Shop at ECS Tuning | ||||||
| 07 | Lever, seat tilt adjustment, right | 1 | 52107415096 | Shop at ECS Tuning | ||||||
| 08 | Fillister-head screw | M10X28 | 8 | 07149321690 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw with collar | M5X16MM | 4 | 07149158182 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M8X18 | 2 | 07147279964 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Backrest width adjustment driver |
S459A=No S491A=No |
|||||||||
| 11 | Control unit holder, seat heating, left | 1 | 52105A67973 | NoS | Shop at ECS Tuning | |||||
| 11 | Control unit holder, seat heating, right | 1 | 52105A67974 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
