Seat, front, backrest frame for BMW 3 Series G21 Touring LCI M340dX (2024)

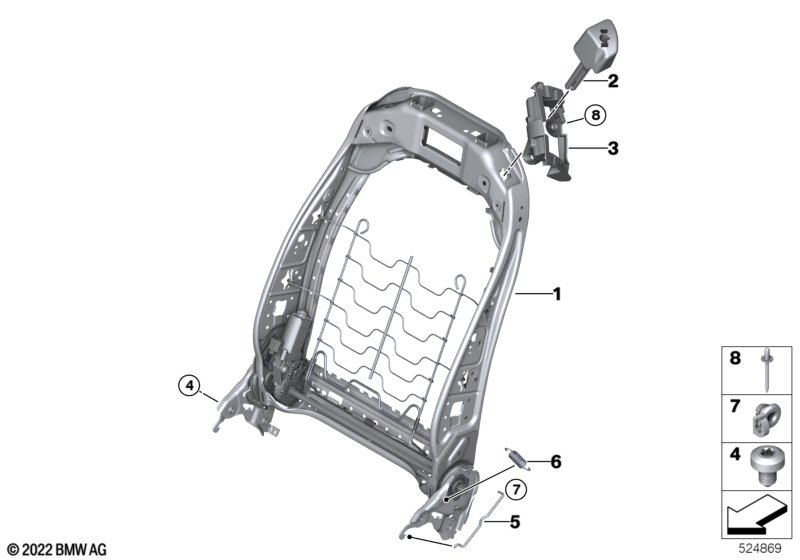

This Seat, front, backrest frame technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory Installation of the backrest frame is approved only with seat mechanism! |
S459A=No |
|||||||||
| 01 | Backrest frame, left | 1 | 52107414615 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Seat mechanism, basic seat, left | 1 | 52107414601 | Shop at ECS Tuning | ||||||
| -- | Seat mech. assembly, Sport seat, left | 1 | 52107414603 | Shop at ECS Tuning | ||||||
| 01 | Backrest frame, right | 1 | 52107414616 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Seat mechanism, basic seat, right | 1 | 52107414602 | Shop at ECS Tuning | ||||||
| -- | Seat mech. assembly, Sport seat, right | 1 | 52107414604 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory ONLY APPLIES TO CO-DRIVERS SIDE Installation of the backrest frame is approved only with seat mechanism! |
S459A=Yes |
|||||||||
| 01 | Backrest frame, electrical | 2 | 52107414625 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Electrical seat mechanism, right | 1 | 52107414610 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and M Sports seats |
S459A=Yes S711A=Yes |
|||||||||
| 01 | Backrest frame, electrical | 2 | 52107414584 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Seat frame, electr. left | 2 | 52107414607 | Shop at ECS Tuning | ||||||
| 02 | Support, backrest, left | 2 | 52107432463 | Shop at ECS Tuning | ||||||
| 02 | Support, backrest, right | 2 | 52107432464 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports seats |
S711A=Yes |
|||||||||
| 03 | Support, backrest, left | 2 | 52108072071 | NoS | Shop at ECS Tuning | |||||
| 03 | Support, backrest, right | 2 | 52108072072 | Shop at ECS Tuning | ||||||
| 04 | Screw | M10X16 | 10 | 72119909471 | Shop at ECS Tuning | |||||
| 05 | Coupling rod | 2 | 52106993517 | Shop at ECS Tuning | ||||||
| 06 | Spring backrest frame | 2 | 52106993516 | NoS | Shop at ECS Tuning | |||||
| 07 | Clip | 2 | 52106993515 | Shop at ECS Tuning | ||||||
| 08 | Blind rivet | 8 | 51419502637 | NoS | Shop at ECS Tuning | |||||
