Seat, front, seat frame, electric for BMW 3 Series G20 Sedan LCI 330e (2024)

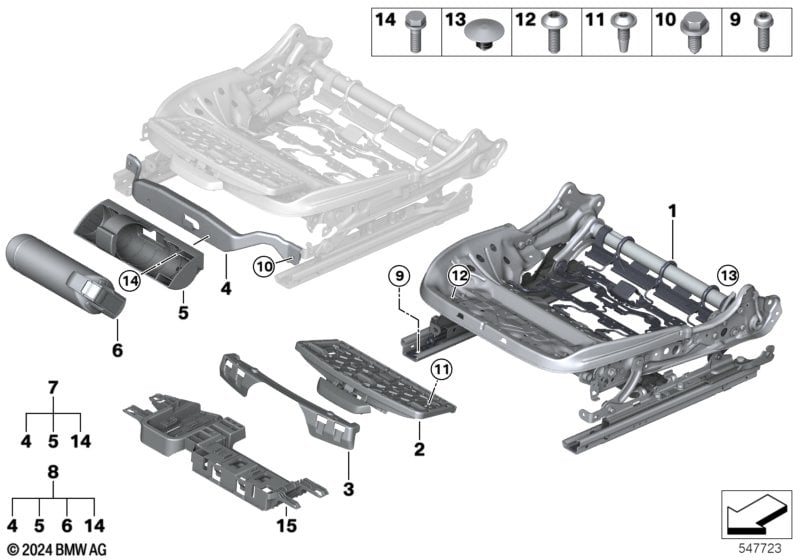

This Seat, front, seat frame, electric technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory Installation of the seat mechanism is approved only with backrest frame! |
S459A=Yes |
|||||||||
| 01 | Electrical seat mechanism, right | 1 | 52107414610 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Backrest frame, electrical | 1 | 52107414625 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and M Sports seats Installation of the seat mechanism is approved only with backrest frame! |
S459A=Yes S711A=No |
|||||||||
| 01 | Electrical seat mechanism, left | 1 | 52107414609 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Backrest frame, electrical | 1 | 52107414625 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and M Sports seats Installation of the seat mechanism is approved only with backrest frame! |
S459A=Yes S711A=Yes |
|||||||||
| 01 | Seat frame, electr. left | 1 | 52107414607 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Backrest frame, electrical | 1 | 52107414584 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, electr. right | 1 | 52107414608 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Backrest frame, electrical | 1 | 52107414584 | Shop at ECS Tuning | ||||||
| 02 | Carrier thigh support | 2 | 52107414576 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports seats |
S711A=Yes |
|||||||||
| 03 | Trim thigh support | 2 | 52108072075 | Shop at ECS Tuning | ||||||
| 04 | Fire extinguisher holder | 1 | 52109484098 | NoS | Shop at ECS Tuning | |||||
| 06 | Fire extinguisher | 1 | 52109496756 | NoS | Shop at ECS Tuning | |||||
| 09 | Fillister-head screw | M10X28 | 8 | 07149321690 | Shop at ECS Tuning | |||||
| For vehicles with Fire extinguisher and Assembling device |
S421A=Yes S8APA=Yes |
|||||||||
| 10 | Hex bolt with washer | M8X18 | 2 | 07147279964 | Shop at ECS Tuning | |||||
| 11 | Fillister head screw with collar | M5X16MM | 4 | 07149158182 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw | 4 | 61317043728 | $0.38 | Shop at ECS Tuning | |||||
| 13 | Plug, black | D=6,35MM | 6 | 51488114499 | $0.56 | Shop at ECS Tuning | ||||
| For vehicles with Fire extinguisher and Country control Indonesia |
S421A=Yes S8LKA=Yes |
|||||||||
| 14 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 15 | Control unit holder, seat heating, left | 1 | 52105A67975 | NoS | Shop at ECS Tuning | |||||
| 15 | Control unit holder, seat heating, right | 1 | 52105A67976 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
