Seat, front, lumbar for BMW 3 Series G28 Sedan 320Ld (2021)

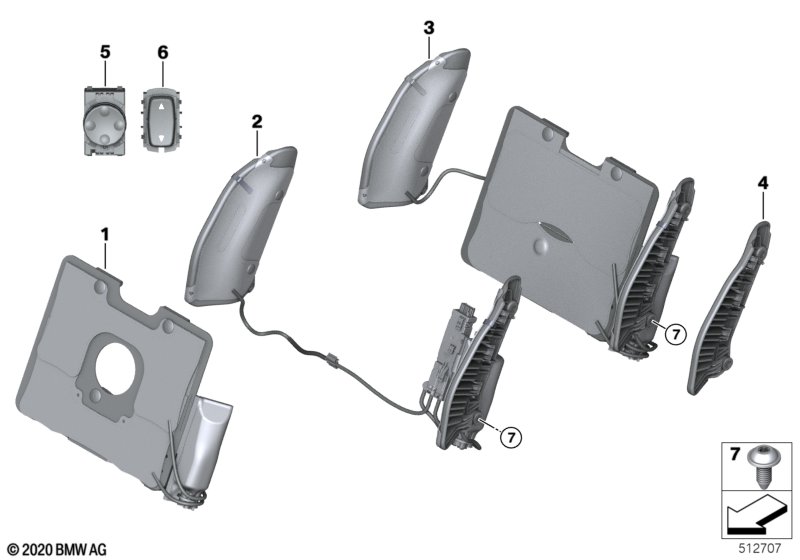

This Seat, front, lumbar technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan 320Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.

Seat, front, lumbar
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Lumbar support, driver and passenger
S488A=Yes
01 Lumbar support pad with pump 1 52107418338 Shop at ECS Tuning
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat
and
Seat with active ventilation
S459A=No

S481A=Yes

S4FHA=No
06 Switch FEH LBV 2 61319227855 Shop at ECS Tuning
07 Fillister head screw with collar 8 07147187828 $0.38 Shop at ECS Tuning
