Seat, rear, seat frame, base seat for BMW 3 Series G20 Sedan 330iX (2022)

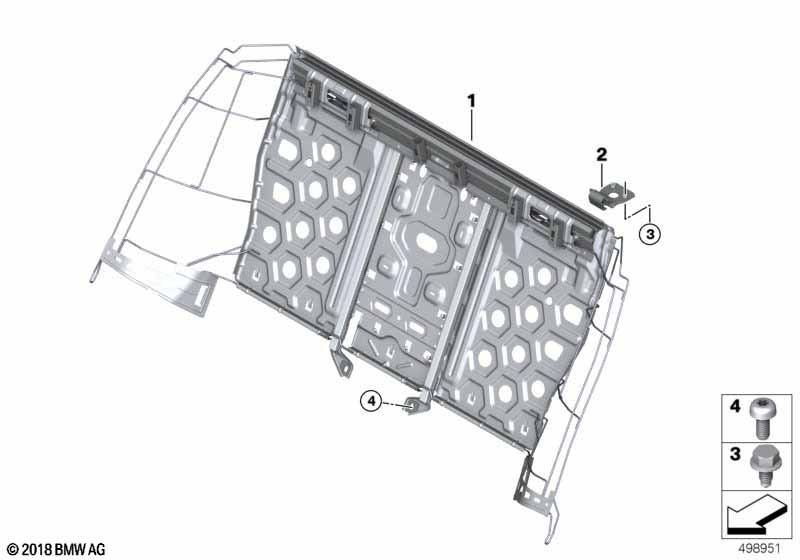

This Seat, rear, seat frame, base seat technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Through-loading system |
S465A=No |
||||||||
| For vehicles with Through-loading system |
S465A=No |
|||||||||
| 01 | backrest frame el. fa | 1 | 52207400304 | NoS | Shop at ECS Tuning | |||||
| 02 | Bracket for frame, backrest, right | 1 | 52207346698 | Shop at ECS Tuning | ||||||
| 02 | Bracket for frame, backrest, left | 1 | 52207346699 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M8X12 | 4 | 07119907416 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
