Rear seat center armrest for BMW 3 Series G21 Touring 330i (2022)

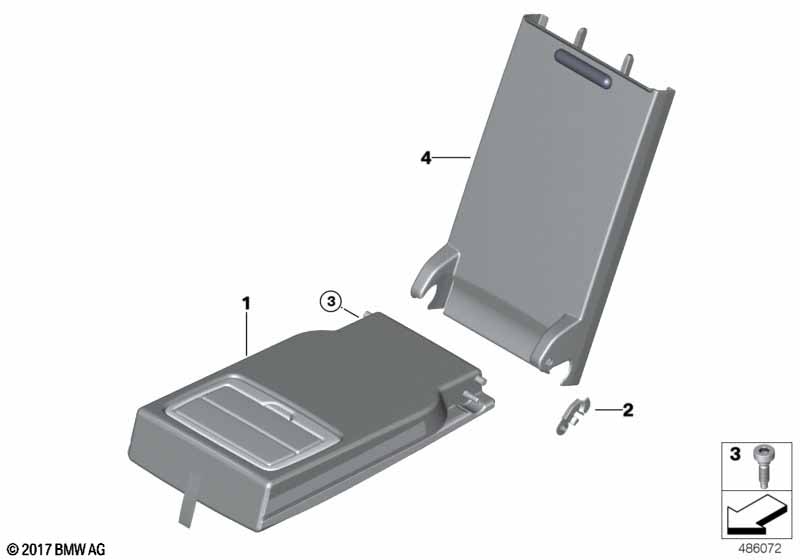

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sensatec/black |
KCSW=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | SCHWARZ | 1 | 52207469760 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Vernasca, cognac, gy stitching |
MAPQ=Yes |
|||||||||
| 01 | Center arm rest, leather | COGNAC | 1 | 52207469798 | Shop at ECS Tuning | |||||
| For vehicles with Leather Vernasca/mocca decor.stitching |
MAMU=Yes |
|||||||||
| 01 | Center arm rest, leather | MOKKA | 1 | 52207469797 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec perforated/Tacora red |
KHG7=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | TACORAROT | 1 | 52205A0C871 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 01 | Center arm rest, leather | OYSTER | 1 | 52207469799 | Shop at ECS Tuning | |||||
| For vehicles with Cloth Hevelius/anthracite |
EHAT=Yes |
|||||||||
| 01 | Center armrest, fabric | ANTHRAZIT | 1 | 52207469716 | Shop at ECS Tuning | |||||
| For vehicles with Leath.Vernasca/Canberra beige de.stitch. |
MAFO=Yes |
|||||||||
| 01 | Center arm rest, leather | CANBERRABEIGE | 1 | 52206999956 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/tacora red dec.stitch. |
MAG6=Yes |
|||||||||
| 01 | Center arm rest, leather | TACORAROT | 1 | 52207477496 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac, extended |
KHKC=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | COGNAC | 1 | 52205A04A62 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino tartufo or Individual full leather, tartufo |
VATQ=Yes VBTQ=Yes |
|||||||||
| 01 | Center arm rest, leather | TARTUFO | 1 | 52208079555 | Shop at ECS Tuning | |||||
| For vehicles with Leather Merino ivory white or Individual full leather, ivory white |
VAEW=Yes VBEW=Yes |
|||||||||
| 01 | Center arm rest, leather | ELFENBEINWEISS | 1 | 52208079554 | Shop at ECS Tuning | |||||
| For vehicles with Ind.leather extended/Fiona red/black or Individual full leather, Fiona Red/black |
VAHZ=Yes VBHZ=Yes |
|||||||||
| 01 | Center arm rest, leather | FIONAROT | 1 | 52208079556 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige |
KHFR=Yes KHFY=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | CANBERRABEIGE | 1 | 52205A04A61 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric sensatec./ black or Alcantara sensatec.black / blue or Sensatec perforated/black |
KFSW=Yes KGNL=Yes KHSW=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | SCHWARZ | 1 | 52207948368 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Vernasca, black, gray stitching or Leather, black, with dec.stitching or Leather, Vernasca, black, blue stitching |
MAH7=Yes MANJ=Yes MANL=Yes |
|||||||||
| 01 | Center arm rest, leather | SCHWARZ | 1 | 52207469761 | Shop at ECS Tuning | |||||
| 02 | Detent unit, left | 1 | 52207250809 | Shop at ECS Tuning | ||||||
| 02 | Detent unit, right | 1 | 52207250810 | Shop at ECS Tuning | ||||||
| 03 | Attachment | 2 | 52207324798 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Leath.Vernasca/Canberra beige de.stitch. or Leath.Vernasca/Canberra beige de.stitch. |
KHFR=Yes MAFO=Yes MAFX=Yes |
|||||||||
| 04 | Trim for center armrest | CANBERRABEIGE | 1 | 52207479150 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Hevelius/anthracite or Sensatec/black or Fabric sensatec./ black or Alcantara sensatec.black / blue or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, black, with dec.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather, Vernasca, cognac, gy stitching or Leather Merino ivory white or Ind.leather extended/Fiona red/black or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, Fiona Red/black or Individual full leather, tartufo |
EHAT=Yes KCSW=Yes KFSW=Yes KGNL=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAMU=Yes MANJ=Yes MANL=Yes MAOI=Yes MAPQ=Yes VAEW=Yes VAHZ=Yes VATQ=Yes VBEW=Yes VBHZ=Yes VBTQ=Yes |
|||||||||
| 04 | Trim for center armrest | SCHWARZ | 1 | 52207479151 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
