Seat rear, upholstery & cover base seat for BMW 1 Series F40 120i (2022)

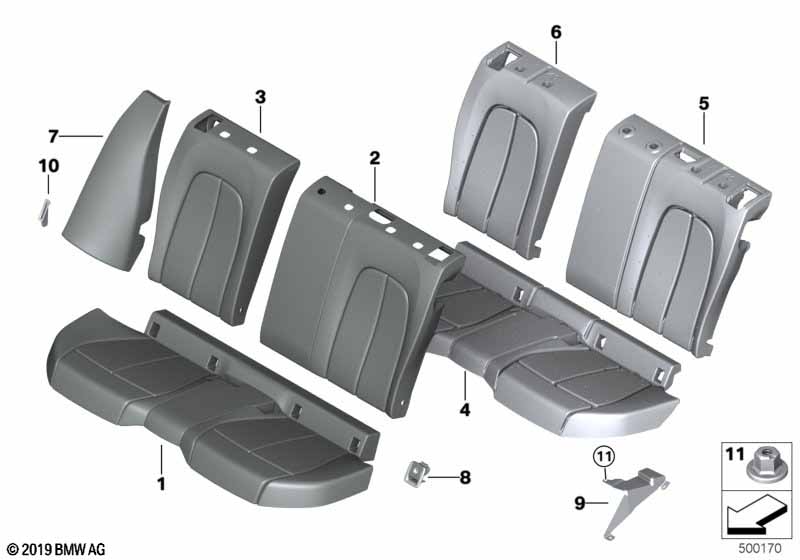

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Dakota perforated/black/blue acc |
PDN4=Yes |
|||||||||
| 01 | Seat cover leather | SCHWARZ/BLAU | 1 | 52208096748 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Grid/anthracite |
EGAT=Yes |
|||||||||
| 01 | Seat cover vinyl | ANTHRAZIT | 1 | 52209108152 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Trigon Alcantara / black |
HLSW=Yes |
|||||||||
| 01 | Seat cover cloth | SCHWARZ | 1 | 52208096834 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather 'Dakota' perforated/mocca |
PDMY=Yes |
|||||||||
| 01 | Seat cover leather | MOKKA | 1 | 52209108273 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Dakota, ventilated black |
PDSW=Yes |
|||||||||
| 01 | Seat cover leather | SCHWARZ | 1 | 52209108263 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec anthracite / orange |
KFIX=Yes |
|||||||||
| 01 | Seat cover vinyl | ANTHRAZIT/ORANG | 1 | 52209108256 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perforat.magma red/sheen |
PDFM=Yes |
|||||||||
| 01 | Seat cover leather | ROT/GRAU | 1 | 52209108278 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec anthracite / gray |
KFL1=Yes |
|||||||||
| 01 | Seat cover vinyl | ANTHRAZIT/GRAU | 1 | 52209108249 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports seats and Cloth, Trigon / Sensatec Black |
S711A=No KKSW=Yes |
|||||||||
| 01 | Seat cover cloth | SCHWARZ | 1 | 52209890502 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perforated/black/blue acc |
PDN4=Yes |
|||||||||
| 02 | Cover, backrest, left | SCHWARZ | 1 | 52208096773 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Grid/anthracite |
EGAT=Yes |
|||||||||
| 02 | Cover, backrest, left | ANTHRAZIT | 1 | 52209108153 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather 'Dakota' perforated/mocca |
PDMY=Yes |
|||||||||
| 02 | Cover, backrest, left | MOKKA | 1 | 52209108275 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Dakota, ventilated black |
PDSW=Yes |
|||||||||
| 02 | Cover, backrest, left | SCHWARZ | 1 | 52209108265 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec anthracite / orange |
KFIX=Yes |
|||||||||
| 02 | Cover, backrest, left | ORANGE | 1 | 52209108257 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perforat.magma red/sheen |
PDFM=Yes |
|||||||||
| 02 | Cover, backrest, left | MAGMAROT | 1 | 52209108279 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec anthracite / gray |
KFL1=Yes |
|||||||||
| 02 | Cover, backrest, left | GRAU | 1 | 52209108251 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and Fabric Trigon Alcantara / black |
S465A=No HLSW=Yes |
|||||||||
| 02 | Cover, backrest, left | SCHWARZ | 1 | 52208096835 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system and M Sports seats and Cloth, Trigon / Sensatec Black |
S465A=No S711A=No KKSW=Yes |
|||||||||
| 02 | Cover, backrest, left | SCHWARZ | 1 | 52209890505 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perforated/black/blue acc |
PDN4=Yes |
|||||||||
| 03 | Cover, backrest, right | SCHWARZ | 1 | 52208096786 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Grid/anthracite |
EGAT=Yes |
|||||||||
| 03 | Cover, backrest, right | ANTHRAZIT | 1 | 52209108228 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Trigon Alcantara / black |
HLSW=Yes |
|||||||||
| 03 | Cover, backrest, right | SCHWARZ | 1 | 52208096838 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather 'Dakota' perforated/mocca |
PDMY=Yes |
|||||||||
| 03 | Cover, backrest, right | MOKKA | 1 | 52209108374 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Dakota, ventilated black |
PDSW=Yes |
|||||||||
| 03 | Cover, backrest, right | SCHWARZ | 1 | 52209108318 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec anthracite / orange |
KFIX=Yes |
|||||||||
| 03 | Cover, backrest, right | ORANGE | 1 | 52209108260 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perforat.magma red/sheen |
PDFM=Yes |
|||||||||
| 03 | Cover, backrest, right | MAGMAROT | 1 | 52209108378 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec anthracite / gray |
KFL1=Yes |
|||||||||
| 03 | Cover, backrest, right | GRAU | 1 | 52209108254 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports seats and Cloth, Trigon / Sensatec Black |
S711A=No KKSW=Yes |
|||||||||
| 03 | Cover, backrest, right | SCHWARZ | 1 | 52209890507 | NoS | Shop at ECS Tuning | ||||
| 04 | Seat upholstery | 1 | 52207457929 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system |
S465A=No |
|||||||||
| 05 | Foam pad, backrest, rear left | 60% | 1 | 52207457928 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 05 | Foam pad, backrest, rear left | 40% | 1 | 52207457917 | NoS | Shop at ECS Tuning | ||||
| 06 | Right backrest upholstery | 1 | 52207457918 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fabric Grid/anthracite |
EGAT=Yes |
|||||||||
| 07 | Side finisher cloth, left | ANTHRAZIT | 1 | 52207492433 | NoS | Shop at ECS Tuning | ||||
| 07 | Side finisher cloth, right | ANTHRAZIT | 1 | 52207492434 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Trigon Alcantara / black |
HLSW=Yes |
|||||||||
| 07 | Lateral trim panel left | SCHWARZ | 1 | 52208096853 | NoS | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | SCHWARZ | 1 | 52208096854 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather 'Dakota' perforated/mocca |
PDMY=Yes |
|||||||||
| 07 | Lateral trim panel left | MOKKA | 1 | 52208706851 | NoS | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | MOKKA | 1 | 52208706852 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perforat.magma red/sheen |
PDFM=Yes |
|||||||||
| 07 | Lateral trim panel left | MAGMAROT | 1 | 52207942611 | NoS | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | MAGMAROT | 1 | 52207942612 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perforated/black/blue acc or Leather, Dakota, ventilated black |
PDN4=Yes PDSW=Yes |
|||||||||
| 07 | Lateral trim panel left | SCHWARZ | 1 | 52207492435 | NoS | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | SCHWARZ | 1 | 52207492436 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black or Sensatec anthracite / orange or Sensatec anthracite / gray or Sensatec Black Accent Red or Cloth, Trigon / Sensatec Black |
KCSW=Yes KFIX=Yes KFL1=Yes KFL3=Yes KKSW=Yes |
|||||||||
| 07 | Lateral trim panel left | SCHWARZ | 1 | 52207942609 | NoS | Shop at ECS Tuning | ||||
| 07 | Lateral trim panel right | SCHWARZ | 1 | 52207942610 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Fabric Grid/anthracite or Fabric Trigon Alcantara / black or Sensatec anthracite / orange or Sensatec anthracite / gray or Sensatec Black Accent Red or Cloth, Trigon / Sensatec Black or Leather Dakota perforat.magma red/sheen or Leather 'Dakota' perforated/mocca or Leather Dakota perforated/black/blue acc or Leather, Dakota, ventilated black |
S230A=Yes EGAT=Yes HLSW=Yes KFIX=Yes KFL1=Yes KFL3=Yes KKSW=Yes PDFM=Yes PDMY=Yes PDN4=Yes PDSW=Yes |
|||||||||
| 08 | Trim, I size | SCHWARZ | 4 | 52207456112 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Fabric Grid/anthracite or Fabric Trigon Alcantara / black or Sensatec anthracite / orange or Sensatec anthracite / gray or Sensatec Black Accent Red or Cloth, Trigon / Sensatec Black or Leather Dakota perforat.magma red/sheen or Leather 'Dakota' perforated/mocca or Leather Dakota perforated/black/blue acc or Leather, Dakota, ventilated black |
S230A=No EGAT=Yes HLSW=Yes KFIX=Yes KFL1=Yes KFL3=Yes KKSW=Yes PDFM=Yes PDMY=Yes PDN4=Yes PDSW=Yes |
|||||||||
| 08 | Cover isofix | SCHWARZ | 4 | 52209484624 | NoS | Shop at ECS Tuning | ||||
| 09 | Mounting plate,left | 1 | 52207408423 | NoS | Shop at ECS Tuning | |||||
| 09 | Mounting plate, right | 1 | 52207408424 | NoS | Shop at ECS Tuning | |||||
| 10 | Support left | 1 | 52209479723 | NoS | Shop at ECS Tuning | |||||
| 10 | Support right | 1 | 52209479724 | NoS | Shop at ECS Tuning | |||||
| 11 | Plastic nut for coarse threaded pin | M6 | 2 | 07147336362 | Shop at ECS Tuning | |||||
