Front seat, uph.and cover, M sports seat for BMW 8 Series G16 Gran Coupé 840i (2025)

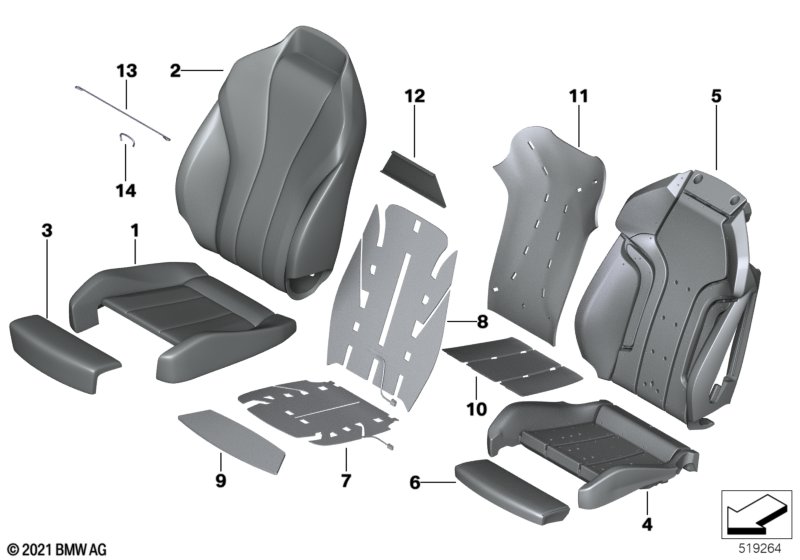

This Front seat, uph.and cover, M sports seat technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.

Front seat, uph.and cover, M sports seat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
M Sports seats
and
Extended leather content in Ivory White
S711A=Yes

VAEX=Yes
01 Sports seat cover leather ELF.WEISS 2 52108098604 NoS Shop at ECS Tuning
For vehicles with
M Sports seats
and
Leather Merino black
S711A=Yes

VASW=Yes
01 Cover sport seat leather SCHWARZ 2 52108088321 Shop at ECS Tuning
For vehicles with
M Sports seats
and
Extended leather content in Ivory White
S711A=Yes

VAEX=Yes
02 Leather cover sport backrest left ELF.WEISS 1 52108098605 NoS Shop at ECS Tuning
02 Leather cover sport backrest right ELF.WEISS 1 52108098606 NoS Shop at ECS Tuning
For vehicles with
M Sports seats
and
Leather Merino black
S711A=Yes

VASW=Yes
02 Leather cover sport backrest left SCHWARZ 1 52108098607 NoS Shop at ECS Tuning
02 Leather cover sport backrest right SCHWARZ 1 52108098608 NoS Shop at ECS Tuning
For vehicles with
M Sports seats
and
Extended leather content in Ivory White
S711A=Yes

VAEX=Yes
03 Cover thigh support leather ELF.WEISS 2 52108098610 NoS Shop at ECS Tuning
For vehicles with
M Sports seats
and
Leather Merino black
S711A=Yes

VASW=Yes
03 Cover thigh support leather SCHWARZ 2 52108098609 NoS Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
and
M Sports seats
S453A=No

S711A=Yes
04 Foam pad, Sport seat 2 52108067141 NoS Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
and
M Sports seats
S453A=Yes

S711A=Yes
04 Foam pad, sport seat, perforated 2 52108071746 NoS Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
and
M Sports seats
S453A=No

S711A=Yes
05 Foam padding, backrest, right 1 52108067138 NoS Shop at ECS Tuning
05 Foam padding, backrest, left 1 52108094817 NoS Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
and
M Sports seats
S453A=Yes

S711A=Yes
05 Foam pad, backrest, climate, left 1 52108071745 NoS Shop at ECS Tuning
05 Foam pad, backrest, climate, right 1 52108094818 NoS Shop at ECS Tuning
For vehicles with
M Sports seats
S711A=Yes
06 Foam pad for thigh bolster 2 52108072198 NoS Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
and
M Sports seats
S453A=No

S711A=Yes
07 Heater element for Sport seat 2 52108072089 ENDED, NoS Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
and
M Sports seats
S453A=Yes

S711A=Yes
07 Heater element for Sport seat 2 52108076567 NoS Shop at ECS Tuning
For vehicles with
M Sports seats
S711A=Yes
08 Heating element, ALBFA, climate 2 52108076566 NoS Shop at ECS Tuning
09 Heater element, thigh bolster, Sport 2 52108077368 NoS Shop at ECS Tuning
For vehicles with
Climate-controlled seats, front
and
M Sports seats
S453A=Yes

S711A=Yes
10 Pad for seat 2 52108072077 NoS Shop at ECS Tuning
11 Pad for backrest 2 52108072076 NoS Shop at ECS Tuning
For vehicles with
M Sports seats
S711A=Yes
12 Backrest covering extension 2 52108089217 NoS Shop at ECS Tuning
13 Wire-strap L=1800MM 1 52208129296 $1.14 Shop at ECS Tuning
14 Clamp 1,6X20X10,1 20 52101945543 $0.09 Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)
  • ENDED = the part has been discontinued (no longer available).
