Rear seat center armrest for BMW 3 Series G28 Sedan 325Li (2020)

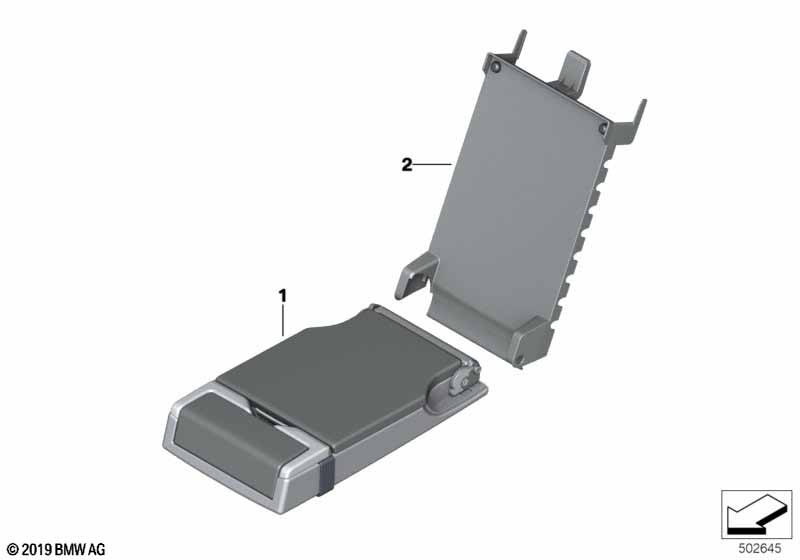

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan 325Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather, Vernasca, cognac, gy stitching |
MAPQ=Yes |
|||||||||
| 01 | Center arm rest, leather | COGNAC | 1 | 52107943210 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black |
KCSW=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | SCHWARZ | 1 | 52207941642 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/mocca decor.stitching |
MAMU=Yes |
|||||||||
| 01 | Center arm rest, leather | MOKKA | 1 | 52107943209 | NoS | Shop at ECS Tuning | ||||
| For vehicles with SENSATEC TACORA RED |
KCG7=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | TACORAROT | 1 | 52205A01280 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 01 | Center arm rest, leather | OYSTER | 1 | 52109853775 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perf./Tacora red decor strips |
KHG6=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | TACORAROT | 1 | 52207910548 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/mocca |
KCMY=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | MOKKA | 1 | 52207941632 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec PERF./Mocha decor stitching |
KHMU=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | MOKKA | 1 | 52207910547 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec Cognac |
KCRI=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | COGNAC | 1 | 52207941641 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perf./Tacora red decor strips or Sensatec perf./black contrast stitching |
KHER=Yes KHNL=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | SCHWARZ | 1 | 52205A24617 | Shop at ECS Tuning | |||||
| 02 | Trim for center armrest | 1 | 52107470434 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
