Seat, front, uphlstry, cover, Sport seat for BMW 1 Series F40 118d (2024)

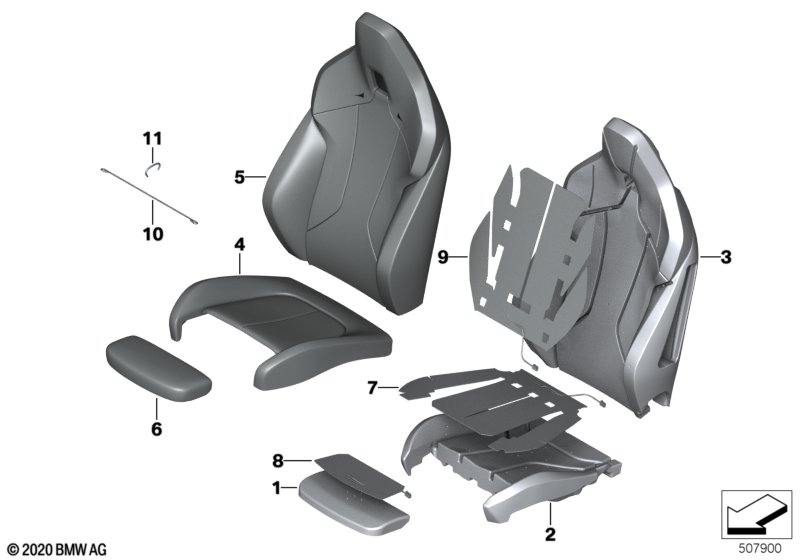

This Seat, front, uphlstry, cover, Sport seat technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports seats |
S711A=Yes |
||||||||
| 01 | Thigh support upholstery | 2 | 52107451360 | NoS | Shop at ECS Tuning | |||||
| 02 | Foam section, seat | 2 | 52109460859 | NoS | Shop at ECS Tuning | |||||
| 03 | Foam pad sport backrest left | 1 | 52109460575 | NoS | Shop at ECS Tuning | |||||
| 03 | Foam pad sport backrest right | 1 | 52109460576 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Leather, Dakota, ventilated black |
PDSW=Yes |
|||||||||
| 04 | Cover M sports seat, leather | SCHWARZ | 2 | 52107942050 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perforat.magma red/sheen |
PDFM=Yes |
|||||||||
| 04 | Cover M sports seat, leather | MAGMAROT | 2 | 52107942049 | NoS | Shop at ECS Tuning | ||||
| For vehicles with LEATHER DAKOTA BLACK/IVORY WHITE |
LCEF=Yes |
|||||||||
| 04 | Cover M sports seat, leather | SCHWARZ/ELFENBE | 2 | 52105A4D880 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Trigon Alcantara / black |
HLSW=Yes |
|||||||||
| 04 | Cover M sports seat, leather | SCHWARZ | 2 | 52107942053 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Dakota, ventilated black |
PDSW=Yes |
|||||||||
| 05 | Cover M ALBFA, leather, left | SCHWARZ | 1 | 52107942043 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover M ALBFA leather, right | SCHWARZ | 1 | 52107942044 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perforat.magma red/sheen |
PDFM=Yes |
|||||||||
| 05 | Cover M ALBFA, leather, left | MAGMAROT | 1 | 52107942041 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover M ALBFA leather, right | MAGMAROT | 1 | 52107942042 | NoS | Shop at ECS Tuning | ||||
| For vehicles with LEATHER DAKOTA BLACK/IVORY WHITE |
LCEF=Yes |
|||||||||
| 05 | Cover, sport seat backrest leather left | SCHWARZ/ELFENBE | 1 | 52105A4D873 | Shop at ECS Tuning | |||||
| 05 | Cover, sport seat backrest leather right | SCHWARZ/ ELFENB | 1 | 52105A4D874 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Trigon Alcantara / black |
HLSW=Yes |
|||||||||
| 05 | Cloth cover sport backrest left | SCHWARZ | 1 | 07/2020 | 52105A1CBA5 | NoS | Shop at ECS Tuning | |||
| 05 | Cloth cover sport backrest right | SCHWARZ | 1 | 07/2020 | 52105A1CBA6 | NoS | Shop at ECS Tuning | |||
| For vehicles with Leather, Dakota, ventilated black |
PDSW=Yes |
|||||||||
| 06 | Cover thigh support leather | SCHWARZ | 2 | 52107942052 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota perforat.magma red/sheen |
PDFM=Yes |
|||||||||
| 06 | Cover thigh support leather | MAGMAROT | 2 | 52107942051 | NoS | Shop at ECS Tuning | ||||
| For vehicles with LEATHER DAKOTA BLACK/IVORY WHITE |
LCEF=Yes |
|||||||||
| 06 | Cover thigh support leather | SCHWARZ/BLAU | 2 | 52105A4D891 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Trigon Alcantara / black |
HLSW=Yes |
|||||||||
| 06 | Cover thigh support | SCHWARZ/BLAU | 2 | 52107942054 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat heating driver/passenger and M Sports seats |
S494A=Yes S711A=Yes |
|||||||||
| 07 | Seat heater, seat cushion | 2 | 52107451414 | NoS | Shop at ECS Tuning | |||||
| 08 | Seat heater, thigh bolster | 2 | 52107476266 | NoS | Shop at ECS Tuning | |||||
| 09 | Seat heating backrest | 2 | 52107451415 | NoS | Shop at ECS Tuning | |||||
| 10 | Wire-strap | L=1800MM | 1 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 11 | Clamp | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
