Front seat headrest, M-Sports seat for BMW 8 Series G16 Gran Coupé 840dX (2025)

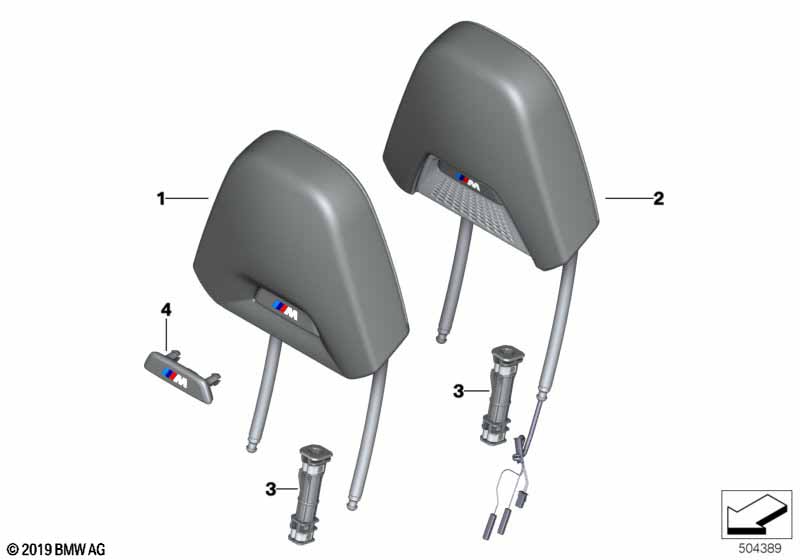

This Front seat headrest, M-Sports seat technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Sports seats and Leather Merino black |
S711A=Yes VASW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52108098611 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports seats and Extended leather content in Ivory White |
S711A=Yes VAEX=Yes |
|||||||||
| 01 | Headrest leather | ELF.WEISS | 2 | 52108098612 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leder Merino/schwarz / M Keder schwarz or Leather Vernasca ivory white or Leather, Vernasca, cognac or Leather Vernasca black or Extended leather content in Ivory White or Extended leather Night Blue/Black or Extended leather content Tartufo/Black or Ind.leather extended/Fiona red/black or Extended leather equipment Cognac or Leather Merino black |
LKMI=Yes MAEX=Yes MARI=Yes MASW=Yes VAEX=Yes VAHX=Yes VAHY=Yes VAHZ=Yes VARI=Yes VASW=Yes |
|||||||||
| 03 | Guide, headrest | SCHWARZ | 4 | 52107495180 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports seats |
S711A=Yes |
|||||||||
| 04 | Emblem | M | 2 | 52108098996 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
