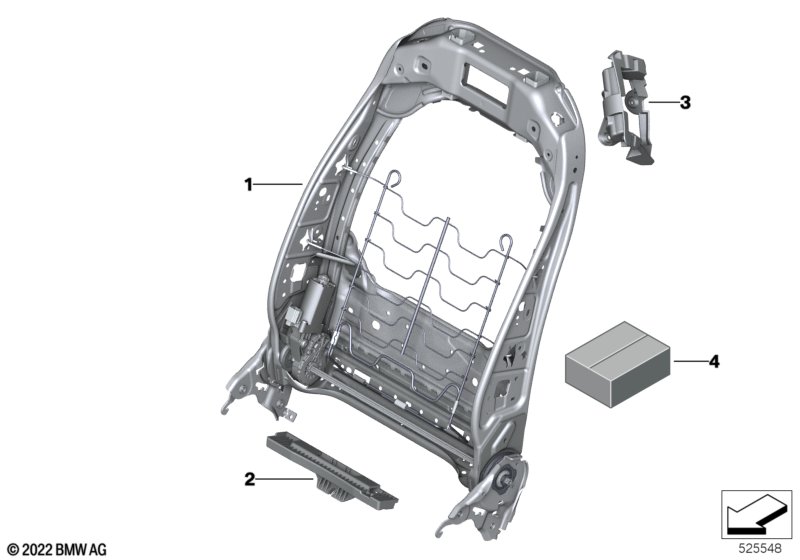

Seat, front, backrest frame for BMW 8 Series G16 Gran Coupé 840dX (2025)
This Seat, front, backrest frame technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | backrest frame el. fa | 2 | 52107470863 | NoS | Shop at ECS Tuning | |||||
| For vehicles with M Sports seats |
S711A=Yes |
|||||||||
| 03 | Support, backrest, left | 2 | 52108072071 | NoS | Shop at ECS Tuning | |||||
| 03 | Support, backrest, right | 2 | 52108072072 | Shop at ECS Tuning | ||||||
| Contains rivets attachment collar on structure |
||||||||||
| 04 | Set of fittings, backrest | 1 | 52105A70CD4 | NoS | Shop at ECS Tuning | |||||
| Rivets attachment support backrest lock switch / coating Bowden cable/ attachment finisher backrest lock switch |
||||||||||
| 04 | Small parts backrest lock switch | 1 | 52107452227 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
