Seat, front, seat trim, manual for BMW 1 Series F40 116i (2024)

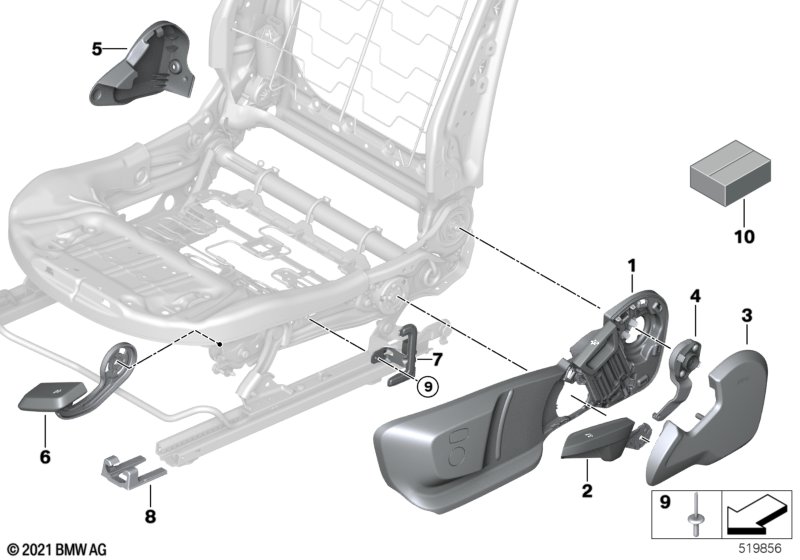

This Seat, front, seat trim, manual technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory and M Sports seats and Fabric Grid/anthracite or Fabric Trigon Alcantara / black or Sensatec/oyster or Sensatec/black or Sensatec anthracite / orange or Sensatec anthracite / gray or Cloth, Trigon / Sensatec Black or Leather Dakota perforat.magma red/sheen or Leather 'Dakota' perforated/mocca or Leather Dakota perforated/black/blue acc or Leather Dakota perf./oyster/gray acc. or Leather, Dakota, ventilated black |
S459A=No S711A=Yes EGAT=Yes HLSW=Yes KCCX=Yes KCSW=Yes KFIX=Yes KFL1=Yes KKSW=Yes PDFM=Yes PDMY=Yes PDN4=Yes PDOA=Yes PDSW=Yes |
|||||||||
| 01 | Cover, left control | SCHWARZ | 1 | 52107499925 | Shop at ECS Tuning | |||||
| 01 | Cover, right control | SCHWARZ | 1 | 52107499926 | Shop at ECS Tuning | |||||
| 02 | Lever, seat height adjustment, left | 1 | 52107411303 | Shop at ECS Tuning | ||||||
| 02 | Lever, seat height adjustment, right | 1 | 52107411304 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and M Sports seats and Fabric Grid/anthracite or Fabric Trigon Alcantara / black or Sensatec/oyster or Sensatec/black or Sensatec anthracite / orange or Sensatec anthracite / gray or Cloth, Trigon / Sensatec Black or Leather Dakota perforat.magma red/sheen or Leather 'Dakota' perforated/mocca or Leather Dakota perforated/black/blue acc or Leather Dakota perf./oyster/gray acc. or Leather, Dakota, ventilated black |
S459A=No S711A=Yes EGAT=Yes HLSW=Yes KCCX=Yes KCSW=Yes KFIX=Yes KFL1=Yes KKSW=Yes PDFM=Yes PDMY=Yes PDN4=Yes PDOA=Yes PDSW=Yes |
|||||||||
| 03 | Trim for backrest, outer left | SCHWARZ | 1 | 52107499891 | Shop at ECS Tuning | |||||
| 03 | Trim for backrest, outer right | SCHWARZ | 1 | 52107499892 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and M Sports seats |
S459A=No S711A=Yes |
|||||||||
| 04 | Dogbone link, left | 1 | 52107404231 | Shop at ECS Tuning | ||||||
| 04 | Dogbone link, right | 1 | 52107404232 | Shop at ECS Tuning | ||||||
| For vehicles with Fabric Grid/anthracite or Fabric Trigon Alcantara / black or Sensatec/oyster or Sensatec/black or Sensatec anthracite / orange or Sensatec anthracite / gray or Cloth, Trigon / Sensatec Black or Leather Dakota perforat.magma red/sheen or Leather 'Dakota' perforated/mocca or Leather Dakota perforated/black/blue acc or Leather Dakota perf./oyster/gray acc. or Leather, Dakota, ventilated black |
EGAT=Yes HLSW=Yes KCCX=Yes KCSW=Yes KFIX=Yes KFL1=Yes KKSW=Yes PDFM=Yes PDMY=Yes PDN4=Yes PDOA=Yes PDSW=Yes |
|||||||||
| 05 | Trim, seat inner left | SCHWARZ | 1 | 52107351921 | Shop at ECS Tuning | |||||
| 05 | Trim, seat inner right | SCHWARZ | 1 | 52107351922 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory or Seat adjuster, electric, with memory |
S459A=No S45AA=No |
|||||||||
| 06 | Lever, seat tilt adjustment, left | 1 | 52107314235 | Shop at ECS Tuning | ||||||
| 06 | Lever, seat tilt adjustment, right | 1 | 52107314236 | Shop at ECS Tuning | ||||||
| 07 | Retainer, trim cover, outer left | 1 | 52107404223 | Shop at ECS Tuning | ||||||
| 08 | Covering cap, seat rail | 6 | 52107395068 | Shop at ECS Tuning | ||||||
| 09 | Blind rivet | 4,8X8 | 2 | 52109108141 | Shop at ECS Tuning | |||||
| 10 | Hardware kit seat | 1 | 52109472304 | NoS | Shop at ECS Tuning | |||||
