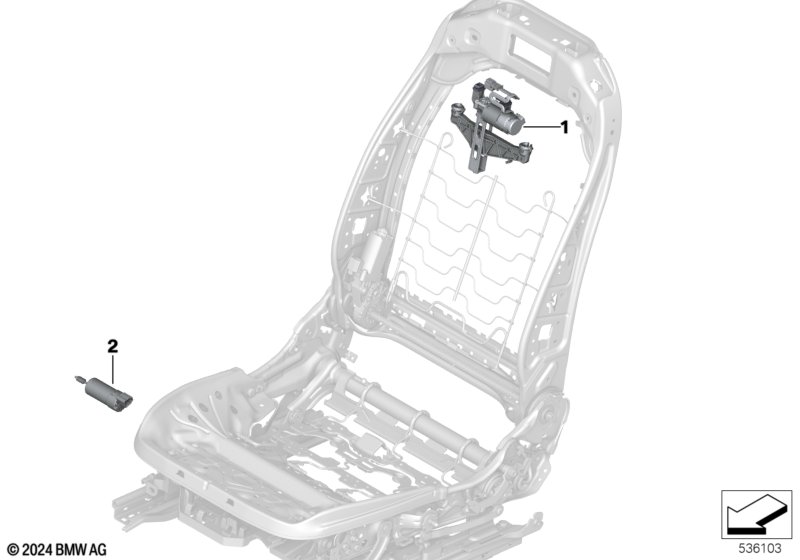

Seat, front, electrical and motors for BMW 3 Series G20 Sedan 330dX (2020)
This Seat, front, electrical and motors technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Sports seats |
S711A=Yes |
|||||||||
| 01 | Drive, vertical headrest adjustment | 2 | 52107452225 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 02 | Drive, longitudinal seat adjustment left | 1 | 52105A67977 | NoS | Shop at ECS Tuning | |||||
| 02 | Drive, longitudinal seat adjustment rght | 1 | 52105A67978 | NoS | Shop at ECS Tuning | |||||
| 02 | Drive, longitudinal seat adjustment left | 1 | 52105A6D613 | NoS | Shop at ECS Tuning | |||||
| 02 | Drive, longitudinal seat adjustment rght | 1 | 52105A6D614 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
