Seat, front, head restraint for BMW 4 Series G22 Coupé 420i (2024)

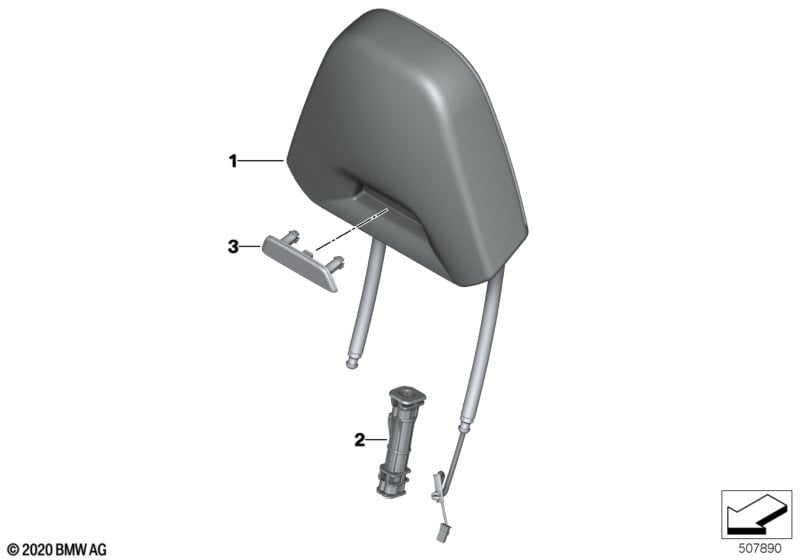

This Seat, front, head restraint technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Sports seats and Leather, Vernasca, cognac, gy stitching |
S711A=Yes MAPQ=Yes |
|||||||||
| 01 | Headrest leather | COGNAC | 2 | 52108746040 | Shop at ECS Tuning | |||||
| For vehicles with M Sports seats and Leather, Vernasca, black, blue stitching |
S711A=Yes MANL=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52108746039 | Shop at ECS Tuning | |||||
| For vehicles with M Sports seats and Alcantara sensatec.black / blue or Leather, Vernasca, black, blue stitching or Leather, Vernasca, cognac, gy stitching |
S711A=Yes KGNL=Yes MANL=Yes MAPQ=Yes |
|||||||||
| 02 | Guide, headrest | SCHWARZ | 4 | 52107495180 | NoS | Shop at ECS Tuning | ||||
| 03 | Emblem illuminated | M | 2 | 52108745038 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
