Seat, front, backrest frame for BMW 4 Series G22 Coupé 420iX (2024)

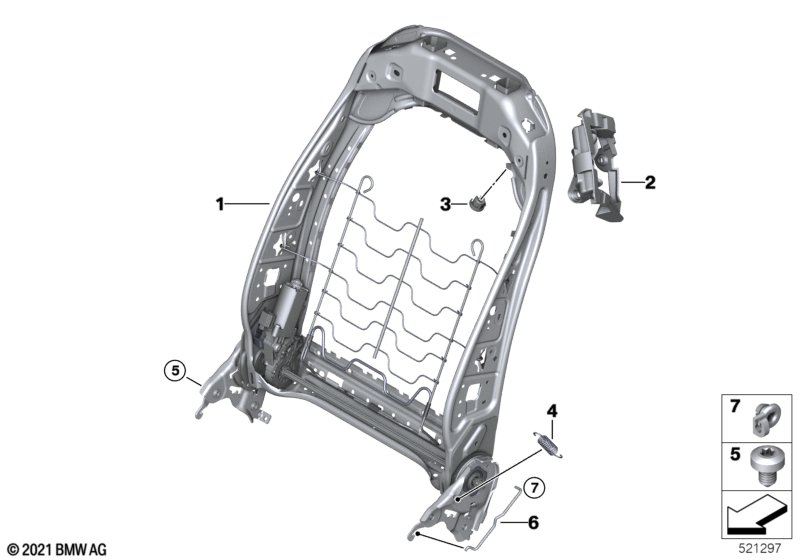

This Seat, front, backrest frame technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation |
S459A=No S4FHA=No |
|||||||||
| 01 | Backrest frame, left | 1 | 52105A134C7 | NoS | Shop at ECS Tuning | |||||
| 01 | Backrest frame, right | 1 | 52105A134C8 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and M Sports seats |
S459A=Yes S4FHA=Yes S711A=Yes |
|||||||||
| 01 | Backrest frame, left | 1 | 52107421859 | Shop at ECS Tuning | ||||||
| 01 | Backrest frame, right | 1 | 52107421860 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and M Sports seats |
S459A=Yes S4FHA=Yes S711A=No |
|||||||||
| 01 | Backrest frame, left | 1 | 52107421859 | Shop at ECS Tuning | ||||||
| 01 | Backrest frame, right | 1 | 52107421860 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and M Sports seats |
S459A=Yes S4FHA=No S711A=Yes |
|||||||||
| 01 | Backrest frame, left | 1 | 52107421859 | Shop at ECS Tuning | ||||||
| 01 | Backrest frame, right | 1 | 52107421860 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and M Sports seats |
S459A=Yes S4FHA=No S711A=No |
|||||||||
| 01 | Backrest frame, left | 1 | 52107421859 | Shop at ECS Tuning | ||||||
| 01 | Backrest frame, right | 1 | 52107421860 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and M Sports seats |
S459A=No S4FHA=Yes S711A=Yes |
|||||||||
| 01 | Backrest frame, left | 1 | 52107421859 | Shop at ECS Tuning | ||||||
| 01 | Backrest frame, right | 1 | 52107421860 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and M Sports seats |
S459A=No S4FHA=Yes S711A=No |
|||||||||
| 01 | Backrest frame, left | 1 | 52107421859 | Shop at ECS Tuning | ||||||
| 01 | Backrest frame, right | 1 | 52107421860 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and M Sports seats |
S459A=No S4FHA=No S711A=Yes |
|||||||||
| 01 | Backrest frame, left | 1 | 52107421859 | NoS | Shop at ECS Tuning | |||||
| 01 | Backrest frame, right | 1 | 52107421860 | NoS | Shop at ECS Tuning | |||||
| For vehicles with M Sports seats |
S711A=Yes |
|||||||||
| 02 | Release lever, left | 1 | 52108071741 | NoS | Shop at ECS Tuning | |||||
| 02 | Release lever, right | 1 | 52108071742 | NoS | Shop at ECS Tuning | |||||
| 03 | Bowden cable mount, left | 1 | 52108094367 | NoS | Shop at ECS Tuning | |||||
| 03 | Mount, Bowden cable, right | 1 | 52108094368 | NoS | Shop at ECS Tuning | |||||
| 04 | Spring backrest frame | 2 | 52106993516 | NoS | Shop at ECS Tuning | |||||
| 05 | Screw | M10X16 | 4 | 72119909471 | Shop at ECS Tuning | |||||
| 06 | Coupling rod | 2 | 52106993517 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Clip | 2 | 52106993515 | Shop at ECS Tuning | ||||||
| 07 | Clip | 2 | 52106993515 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
