Seat, rear, seat frame, load-through for BMW 4 Series G22 Coupé 420i (2024)

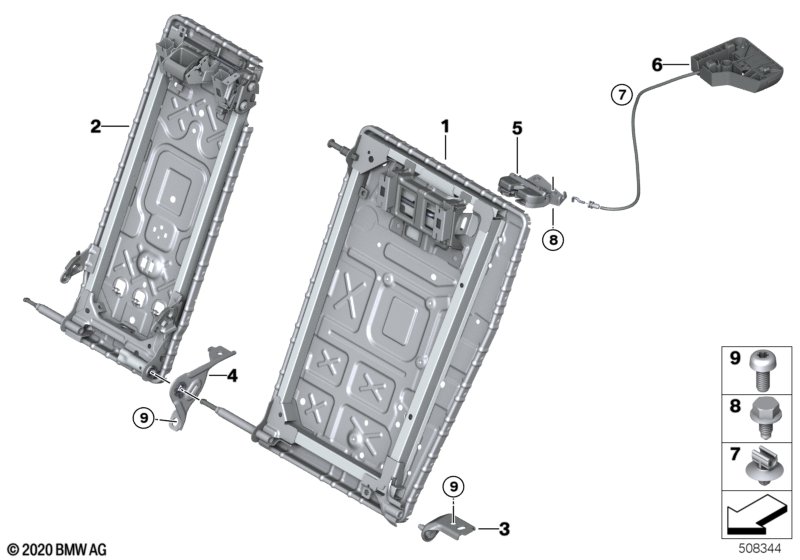

This Seat, rear, seat frame, load-through technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Backrest frame, load-through, left | 1 | 52207399201 | NoS | Shop at ECS Tuning | |||||
| 01 | Backrest frame, load-through, right | 1 | 52207399202 | NoS | Shop at ECS Tuning | |||||
| 02 | Backr.frame f.thro.load.facility center | 1 | 52207399219 | NoS | Shop at ECS Tuning | |||||
| 03 | Bearing exterior left | 1 | 52207399239 | NoS | Shop at ECS Tuning | |||||
| 03 | Bearing exterior right | 1 | 52207399240 | NoS | Shop at ECS Tuning | |||||
| 04 | Bearing center left | 1 | 52207399243 | NoS | Shop at ECS Tuning | |||||
| 04 | Bearing center right | 1 | 52207399244 | NoS | Shop at ECS Tuning | |||||
| 05 | Lock left | 1 | 52207112863 | $35.49 | +core | Shop at ECS Tuning | ||||
| 05 | Lock right | 1 | 52207112864 | $35.49 | +core | Shop at ECS Tuning | ||||
| 06 | Bowden cable release | 2 | 52205A0B393 | Shop at ECS Tuning | ||||||
| 07 | Clip, bowden cable | 4 | 51217040546 | $0.35 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X12 | 4 | 07119907416 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | M10X22 | 6 | 07149148299 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
