Seat front, upholstery & cover base seat for BMW MINI F56 JCW (2021)

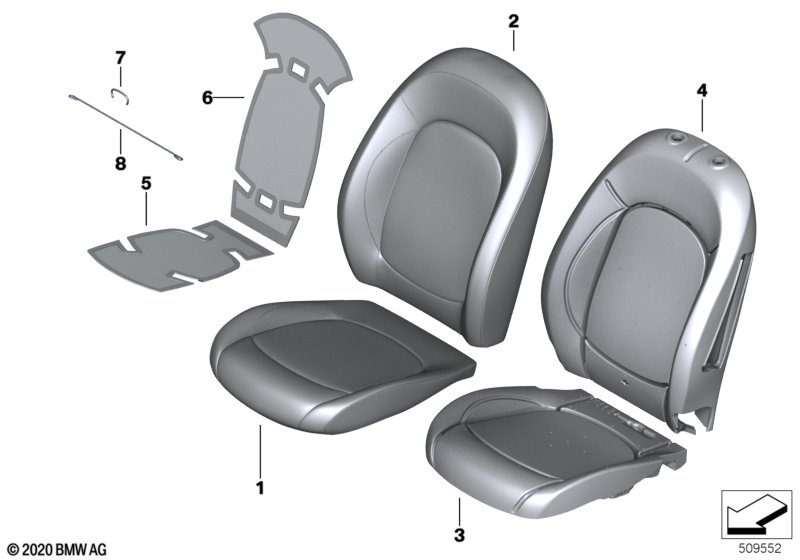

This Seat front, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Fabric Firework/Carbon Black or Imit. leather"Leatherette"/carbon-black |
BGE1=Yes K9E1=Yes |
||||||||
| For vehicles with Delete Sport seat and Imit. leather"Leatherette"/carbon-black |
S4FBA=Yes K9E1=Yes |
|||||||||
| 01 | Imitat. leather cover f basic seat | CARBON BLACK | 2 | 52107340384 | Shop at ECS Tuning | |||||
| 02 | Cover, basic backrest,imit. leather,left | K9E1 CARB.BLACK | 1 | 52107476241 | Shop at ECS Tuning | |||||
| 02 | Cover, basic backrest,imit. leather,rght | K9E1 CARB.BLACK | 1 | 52107476242 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat with seat heating Also for vehicles without seat heating system |
S459A=No S481A=No |
|||||||||
| 03 | Foam pad, Base seat | 1 | 52107389090 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
