Seat, front, uphlstry, cover, Sport seat for BMW MINI F56 JCW (2017)

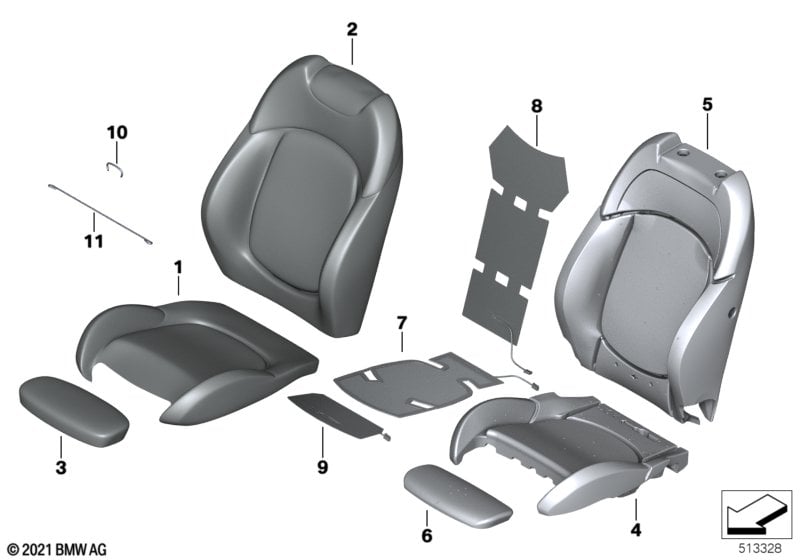

This Seat, front, uphlstry, cover, Sport seat technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Fabric Double Stripe/Carbon Black or Fabric/leather Diamond/Carbon Black or Fabric/leather Diamond/satellite-gray or Cloth/leather Diamond/malt-brown or Imit. leather"Leatherette"/carbon-black or Fabric/leatherette Bl.Pearl/carbon-black or Cloth/leather comb.Bl.P./light chequered or Cloth/Leatheretteko.Light Chequered(CB) or Cloth, Blue Pearl/Light Gray or Leather, Cross punch / carbon black or Leather cross punch/dark truffle |
BZE1=Yes FYE1=Yes FYGK=Yes FYMJ=Yes K9E1=Yes KDE1=Yes KDG2=Yes KDJK=Yes KDT8=Yes NEE1=Yes NENX=Yes |
||||||||
| For vehicles with Leather cross punch/dark truffle |
NENX=Yes |
|||||||||
| 01 | Sports seat cover leather | DARK TRUFFLE | 2 | 52107946303 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Imit. leather"Leatherette"/carbon-black |
S481A=Yes K9E1=Yes |
|||||||||
| 01 | Sports seat cover imitation leather | CARBON BLACK | 2 | 52107340235 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat and Fabric/leather Diamond/satellite-gray |
S481A=Yes FYGK=Yes |
|||||||||
| 01 | Cover, Sports seat, fabric/leather | SATELLITE GREY | 2 | 52107350842 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat and Leather, Cross punch / carbon black |
S481A=Yes NEE1=Yes |
|||||||||
| 01 | Sports seat cover leather | CARBON BLACK | 2 | 52107939328 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat and Fabric/leatherette Bl.Pearl/carbon-black |
S481A=Yes KDE1=Yes |
|||||||||
| 01 | Cloth sport seat cover | CARBON BLACK | 2 | 52107365250 | Shop at ECS Tuning | |||||
| For vehicles with Leather cross punch/dark truffle |
NENX=Yes |
|||||||||
| 02 | Leather cover sport backrest left | DARK TRUFFLE | 1 | 52107946455 | NoS | Shop at ECS Tuning | ||||
| 02 | Leather cover sport backrest right | DARK TRUFFLE | 1 | 52107946456 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Imit. leather"Leatherette"/carbon-black |
S481A=Yes K9E1=Yes |
|||||||||
| 02 | Cover, sport backrest imit. leather,left | CARBON BLACK | 1 | 52107340245 | Shop at ECS Tuning | |||||
| 02 | Cover, sport backrest imit. leather,rght | CARBON BLACK | 1 | 52107340246 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat and Fabric/leather Diamond/satellite-gray |
S481A=Yes FYGK=Yes |
|||||||||
| 02 | Cloth/leather cover sport backrest left | SATELLITE GREY | 2 | 52107365193 | Shop at ECS Tuning | |||||
| 02 | Cloth/leather cover sport backrest right | SATELLITE GREY | 2 | 52107365194 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat and Leather, Cross punch / carbon black |
S481A=Yes NEE1=Yes |
|||||||||
| 02 | Leather cover sport backrest left | CARBON BLACK | 1 | 52107946453 | Shop at ECS Tuning | |||||
| 02 | Leather cover sport backrest right | CARBON BLACK | 1 | 52107946454 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat and Fabric/leatherette Bl.Pearl/carbon-black |
S481A=Yes KDE1=Yes |
|||||||||
| 02 | Cloth cover sport backrest left | CARBON BLACK | 1 | 52107955981 | Shop at ECS Tuning | |||||
| 02 | Cloth cover sport backrest right | CARBON BLACK | 1 | 52107955982 | Shop at ECS Tuning | |||||
| For vehicles with Leather cross punch/dark truffle |
NENX=Yes |
|||||||||
| 03 | Cover thigh support | DARK TRUFFLE | 2 | 52107939859 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat and Imit. leather"Leatherette"/carbon-black |
S481A=Yes K9E1=Yes |
|||||||||
| 03 | Cover thigh support | CARBON BLACK | 2 | 52107340413 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat and Fabric/leather Diamond/satellite-gray |
S481A=Yes FYGK=Yes |
|||||||||
| 03 | Cover thigh support | SATELLITE GREY | 2 | 52107344602 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat and Leather, Cross punch / carbon black |
S481A=Yes NEE1=Yes |
|||||||||
| 03 | Cover thigh support | CARBON BLACK | 2 | 52107939857 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat and Fabric/leatherette Bl.Pearl/carbon-black |
S481A=Yes KDE1=Yes |
|||||||||
| 03 | Cover thigh support | CARBON BLACK | 2 | 52107365251 | Shop at ECS Tuning | |||||
| with seat heating Also for vehicles without seat heating system |
||||||||||
| 04 | Foam pad, Sport seat | 2 | 52107389105 | Shop at ECS Tuning | ||||||
| 05 | Foam pad sport backrest left | 1 | 52107414997 | Shop at ECS Tuning | ||||||
| 05 | Foam pad sport backrest right | 1 | 52107414998 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat with seat heating Also for vehicles without seat heating system |
S481A=Yes |
|||||||||
| 05 | Foam pad sport backrest left | 1 | 52107389129 | Shop at ECS Tuning | ||||||
| 05 | Foam pad sport backrest right | 1 | 52107389130 | Shop at ECS Tuning | ||||||
| 06 | Foam pad for thigh bolster | 2 | 52107389118 | Shop at ECS Tuning | ||||||
| 10 | Clamp | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Wire-strap | L=1800MM | 1 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
