Front seat, backrest trim, rear panel for BMW 4 Series G23 Convertible 420i (2024)

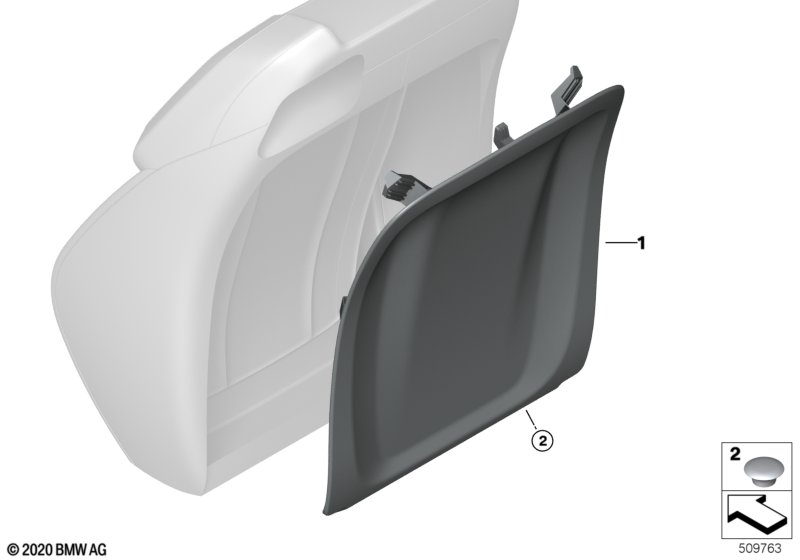

This Front seat, backrest trim, rear panel technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Storage compartment package and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
S493A=No KHFR=Yes KHFS=Yes |
|||||||||
| 01 | Rear panel | CANBERRABEIGE | 2 | 07/2022 | 52109475885 | NoS | Shop at ECS Tuning | |||
| For vehicles with Storage compartment package and Fabric sensatec./ black or Sensatec perforated/Canberra beige or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather Merino ivory white or Ind.leather extended/Fiona red/black or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, Fiona Red/black or Individual full leather, tartufo |
S493A=No KFSW=Yes KHFY=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAMU=Yes MANL=Yes MAOI=Yes VAEW=Yes VAHZ=Yes VATQ=Yes VBEW=Yes VBHZ=Yes VBTQ=Yes |
|||||||||
| 01 | Rear panel | SCHWARZ | 2 | 07/2022 | 52109475886 | NoS | Shop at ECS Tuning | |||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
KHFR=Yes KHFS=Yes |
|||||||||
| 02 | Cover bolt | CANBERRABEIGE | 4 | 52109466630 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric sensatec./ black or Sensatec perforated/Canberra beige or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca Black / Accent Red or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather Merino ivory white or Ind.leather extended/Fiona red/black or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, Fiona Red/black or Individual full leather, tartufo |
KFSW=Yes KHFY=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAL3=Yes MAMU=Yes MANL=Yes MAOI=Yes VAEW=Yes VAHZ=Yes VATQ=Yes VBEW=Yes VBHZ=Yes VBTQ=Yes |
|||||||||
| 02 | Cover bolt | SCHWARZ | 4 | 52107942438 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
