Seat, front, backrest frame for BMW 4 Series G23 Convertible 420i (2024)

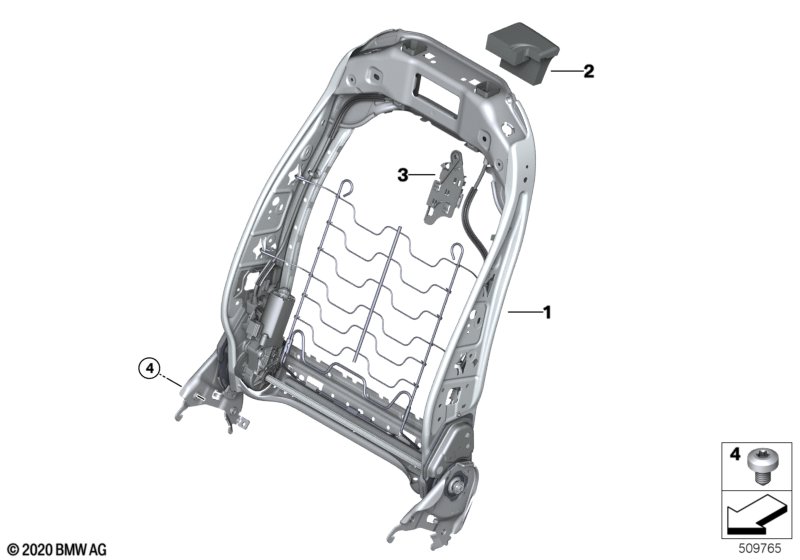

This Seat, front, backrest frame technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Backrest frame, left | 1 | 52107421859 | NoS | Shop at ECS Tuning | |||||
| 01 | Backrest frame, right | 1 | 52107421860 | NoS | Shop at ECS Tuning | |||||
| 02 | Insert backrest left | 1 | 52105A2F861 | NoS | Shop at ECS Tuning | |||||
| 02 | Insert backrest right | 1 | 52105A2F862 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Neck warmer |
S4NHA=Yes |
|||||||||
| 03 | Connector plate, neck warmer | 2 | 52106992453 | NoS | Shop at ECS Tuning | |||||
| 04 | Screw | M10X16 | 4 | 72119909471 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
