Seat, rear, seat frame, base seat for BMW 4 Series G23 Convertible 420i (2024)

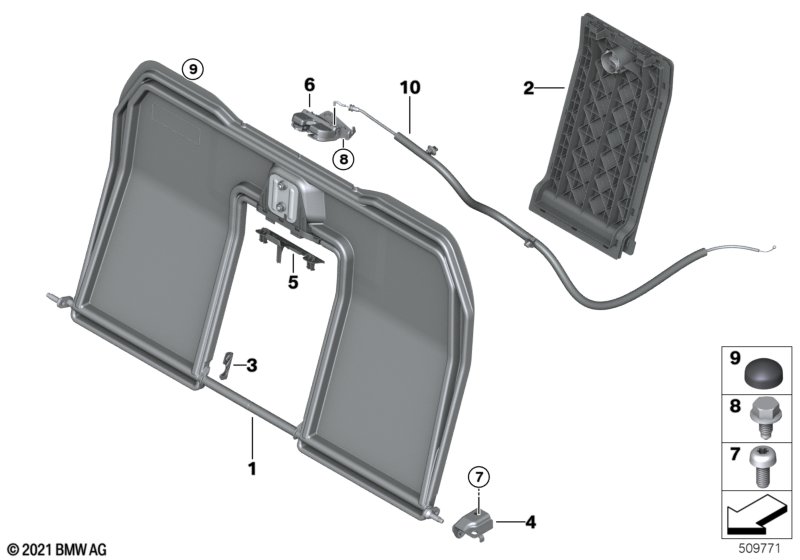

This Seat, rear, seat frame, base seat technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting part | 1 | 52206993041 | NoS | Shop at ECS Tuning | |||||
| 02 | Supporting part, center console | 1 | 52206995342 | NoS | Shop at ECS Tuning | |||||
| 03 | Trim cover, lock assembly, left | 1 | 52209495649 | NoS | Shop at ECS Tuning | |||||
| 03 | Trim cover, lock assembly, right | 1 | 52209495650 | NoS | Shop at ECS Tuning | |||||
| 04 | Bearing exterior left | 1 | 52209870877 | NoS | Shop at ECS Tuning | |||||
| 04 | Bearing exterior right | 1 | 52209870878 | NoS | Shop at ECS Tuning | |||||
| 05 | Unlocking unit | 1 | 52209870872 | NoS | Shop at ECS Tuning | |||||
| 06 | Lock | 1 | 52207402586 | Shop at ECS Tuning | ||||||
| 07 | Fillister head screw | M10X22 | 2 | 07149148299 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X12 | 2 | 07119907416 | Shop at ECS Tuning | |||||
| 09 | Stop buffer | 2 | 52207326087 | Shop at ECS Tuning | ||||||
| 10 | Bowden cable, remote backrest release | 1 | 52206993593 | NoS | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible 420i Seat, rear, seat frame, base seat?
- This technical diagram illustrates the Seat, rear, seat frame, base seat within the Seats group for the 4 Series G23 Convertible 420i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Supporting part (Part #52206993041).
- Which models use the hardware listed in this Seat, rear, seat frame, base seat?
- The hardware and components featured in the Seat, rear, seat frame, base seat are specific to the 4 Series G23 Convertible 420i produced during 2024. These technical specifications ensure that parts like the Supporting part (52206993041) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, rear, seat frame, base seat assembly?
- Each item in the Seat, rear, seat frame, base seat corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible 420i, you can identify the Supporting part by locating its position on the schematic, which then links to the official BMW part number 52206993041 for the Seats section.
