Seat, front, seat frame, electric for BMW 3 Series G80 M3 M3 (2024)

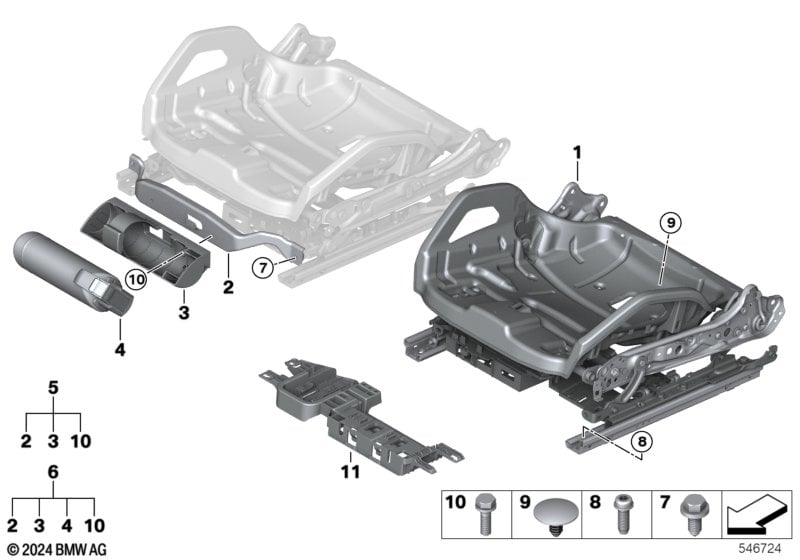

This Seat, front, seat frame, electric technical drawing provides a detailed breakdown of the assembly for the 3 Series G80 M3 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Carbon bucket seats |
S48CA=Yes |
||||||||
| 01 | Seat frame, Sport seat, electric, left | 1 | 52108746215 | NoS | Shop at ECS Tuning | |||||
| 01 | Seat frame, Sport seat, electric, right | 1 | 52108746216 | NoS | Shop at ECS Tuning | |||||
| 02 | Fire extinguisher holder | 1 | 52109484098 | NoS | Shop at ECS Tuning | |||||
| 03 | Mount for fire extinguisher | 1 | 52109496759 | Shop at ECS Tuning | ||||||
| 04 | Fire extinguisher | 1 | 52109496756 | NoS | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M8X18 | 2 | 07147279964 | Shop at ECS Tuning | |||||
| 08 | Fillister-head screw | M10X28 | 8 | 07149321690 | Shop at ECS Tuning | |||||
| 09 | Plug, black | D=5MM | 4 | 52208133466 | $0.50 | Shop at ECS Tuning | ||||
| 11 | Control unit holder, seat heating, left | 1 | 52105A67975 | NoS | Shop at ECS Tuning | |||||
| 11 | Control unit holder, seat heating, right | 1 | 52105A67976 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G80 M3 M3 Seat, front, seat frame, electric?
- This technical diagram illustrates the Seat, front, seat frame, electric within the Seats group for the 3 Series G80 M3 M3 produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Seat frame, Sport seat, electric, left (Part #52108746215).
- Which models use the hardware listed in this Seat, front, seat frame, electric?
- The hardware and components featured in the Seat, front, seat frame, electric are specific to the 3 Series G80 M3 M3 produced during 2024. These technical specifications ensure that parts like the Seat frame, Sport seat, electric, left (52108746215) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, front, seat frame, electric assembly?
- Each item in the Seat, front, seat frame, electric corresponds to the numbered list below the illustration. For the 3 Series G80 M3 M3, you can identify the Seat frame, Sport seat, electric, left by locating its position on the schematic, which then links to the official BMW part number 52108746215 for the Seats section.
