Front seat, uph.and cover, M sports seat for BMW 4 Series G82 M4 Coupé M4 (2024)

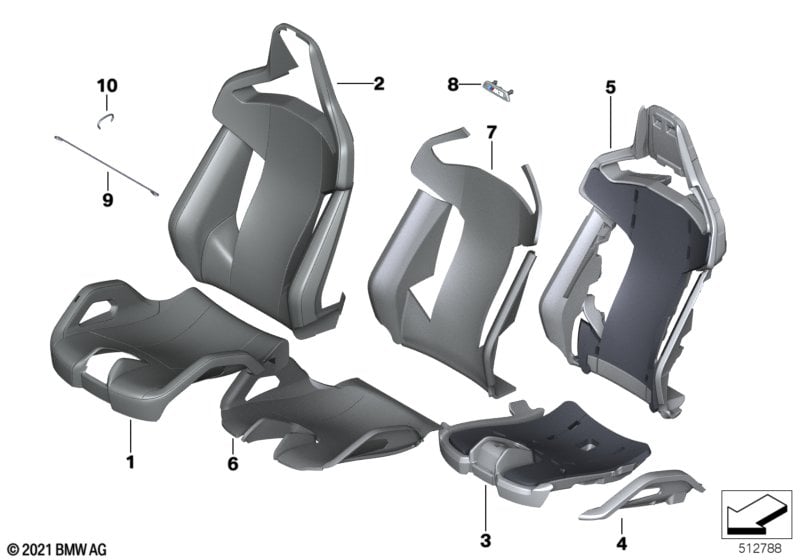

This Front seat, uph.and cover, M sports seat technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Carbon bucket seats |
S48CA=Yes |
||||||||
| For vehicles with Full leather Merino, special mod spec |
X3XM=Yes |
|||||||||
| 01 | Cover M Carbon seat | SCHWARZ | 2 | 52207886100 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Ind.leather extended/Fiona red/black or Individual full leather, Fiona Red/black |
VAHZ=Yes VBHZ=Yes |
|||||||||
| 01 | Cover M Carbon seat | ROT/SCHWARZ | 2 | 52107885536 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Merino"/schwarz or Full leather Merino/black |
LKSW=Yes X3SW=Yes |
|||||||||
| 01 | Cover M Carbon seat | SCHWARZ | 2 | 52109882581 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino/Kyalami orange/black or Full leather Merino/Kyalami orange/black |
LKKX=Yes X3KX=Yes |
|||||||||
| 01 | Cover M Carbon seat | ORANGE | 2 | 52109882584 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino/Silverstone/black or Full leather Merino/Silverstone/black |
LKIA=Yes X3IA=Yes |
|||||||||
| 01 | Cover M Carbon seat | SILVERSTONE | 2 | 52109882582 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino/Yas Marina blue/black or Full Leather Merino/Yas Marina blue/blk. |
LKG5=Yes X3G5=Yes |
|||||||||
| 01 | Cover M Carbon seat | BLAU | 2 | 52109882583 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Full leather Merino, special mod spec |
X3XM=Yes |
|||||||||
| 02 | Cover M Carbon backrest | SCHWARZ | 2 | 52107886099 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Ind.leather extended/Fiona red/black or Individual full leather, Fiona Red/black |
VAHZ=Yes VBHZ=Yes |
|||||||||
| 02 | Cover M Carbon backrest | ROT/SCHWARZ | 2 | 52107885535 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Merino"/schwarz or Full leather Merino/black |
LKSW=Yes X3SW=Yes |
|||||||||
| 02 | Cover M Carbon backrest | SCHWARZ | 2 | 52109882586 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino/Kyalami orange/black or Full leather Merino/Kyalami orange/black |
LKKX=Yes X3KX=Yes |
|||||||||
| 02 | Cover, sport seat, backrest, leather | ORANGE | 2 | 52108088149 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino/Silverstone/black or Full leather Merino/Silverstone/black |
LKIA=Yes X3IA=Yes |
|||||||||
| 02 | Cover M Carbon backrest | SILVERSTONE | 2 | 52109882587 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino/Yas Marina blue/black or Full Leather Merino/Yas Marina blue/blk. |
LKG5=Yes X3G5=Yes |
|||||||||
| 02 | Cover M Carbon backrest | BLAU | 2 | 52109882588 | NoS | Shop at ECS Tuning | ||||
| 03 | Foam section, seat | 2 | 52108067468 | NoS | Shop at ECS Tuning | |||||
| 04 | Left seat foam plastic part | 2 | 52108747247 | NoS | Shop at ECS Tuning | |||||
| 04 | Right seat foam plastic part | 2 | 52108747248 | NoS | Shop at ECS Tuning | |||||
| 05 | Foam padding, backrest, left | 1 | 52107882979 | NoS | Shop at ECS Tuning | |||||
| 05 | Foam padding, backrest, right | 1 | 52107882980 | NoS | Shop at ECS Tuning | |||||
| 06 | Heater element seat | 2 | 52108745532 | NoS | Shop at ECS Tuning | |||||
| 07 | Heater element backrest | 2 | 52108745531 | NoS | Shop at ECS Tuning | |||||
| 08 | Emblem illuminated | M4 | 2 | 52108745044 | Shop at ECS Tuning | |||||
| 09 | Wire-strap | L=1800MM | 1 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 10 | Clamp | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
