Rear seat head restraint for BMW 4 Series G26 Gran Coupé 430iX (2024)

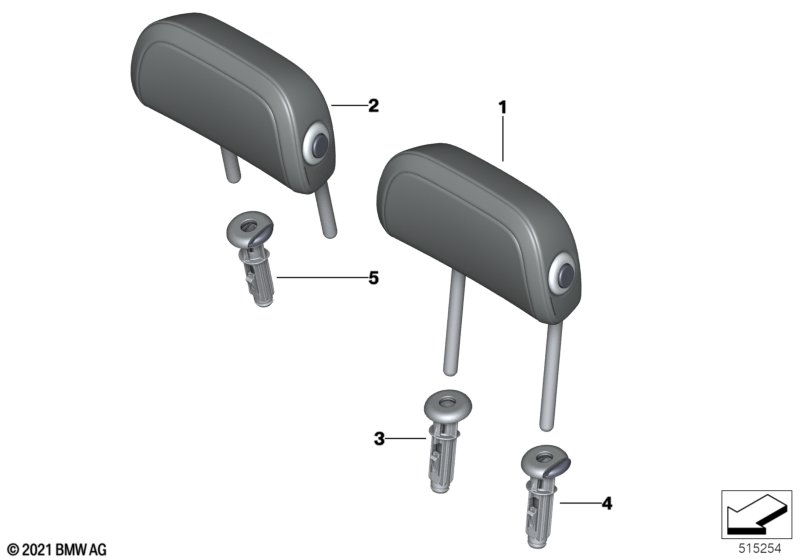

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Vernasca/mocca decor.stitching |
MAMU=Yes |
|||||||||
| 01 | Folding headrest, leather, outer rear | MOKKA/BLAU | 2 | 52205A3CBA8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 01 | Folding headrest, leather, outer rear | OYSTER | 2 | 52205A3CBA9 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Tacora red or Leather Vernasca/tacora red dec.stitch. |
KHG7=Yes MAG6=Yes |
|||||||||
| 01 | Folding headrest, syn.leather, otr.rear | TACORAROT | 2 | 52205A0C7D0 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
KHFR=Yes KHFS=Yes |
|||||||||
| 01 | Folding headrest, syn.leather, otr.rear | CANBERRABEIGE | 2 | 52205A0C7C9 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino ivory white or Individual full leather, ivory white |
VAEW=Yes VBEW=Yes |
|||||||||
| 01 | Folding headrest, leather, outer rear | ELFENBEINWEIS | 2 | 52209504012 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino tartufo or Individual full leather, tartufo |
VATQ=Yes VBTQ=Yes |
|||||||||
| 01 | Folding headrest, leather, outer rear | TARTUFO | 2 | 52209504011 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcantara sensatec.black / blue or Leather, Vernasca, black, blue stitching |
KGNL=Yes MANL=Yes |
|||||||||
| 01 | Folding headrest, leather, outer rear | SCHWARZ/BLAU | 2 | 52205A0C7D2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Ind.leather extended/Fiona red/black or Individual full leather, Fiona Red/black |
VAHZ=Yes VBHZ=Yes |
|||||||||
| 01 | Headrest, leather, outer | SCHWARZ/ROT | 2 | 52209504013 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching |
KHKC=Yes MAPQ=Yes |
|||||||||
| 01 | Folding headrest, syn.leather, otr.rear | COGNAC | 2 | 52205A0C7D3 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric sensatec./ black or Sensatec perforated/black or Leather, Vernasca, black, gray stitching |
KFSW=Yes KHSW=Yes MAH7=Yes |
|||||||||
| 01 | Folding headrest, syn.leather, otr.rear | SCHWARZ | 2 | 52205A0C7D1 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/mocca decor.stitching |
MAMU=Yes |
|||||||||
| 02 | Folding head restr., leather,rear cent. | MOKKA/BLAU | 1 | 52205A0C7D7 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 02 | Folding head restr., leather,rear cent. | OYSTER | 1 | 52205A0C7D9 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Tacora red or Leather Vernasca/tacora red dec.stitch. |
KHG7=Yes MAG6=Yes |
|||||||||
| 02 | Fold.headrest, synth.leather, cen.rear | TACORAROT/GRAU | 1 | 52205A0C7D5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
KHFR=Yes KHFS=Yes |
|||||||||
| 02 | Fold.headrest, synth.leather, cen.rear | CANBERRABEIGE | 1 | 52205A0C7D4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino ivory white or Individual full leather, ivory white |
VAEW=Yes VBEW=Yes |
|||||||||
| 02 | Folding head restr., leather,rear cent. | ELFENBEINWEIS | 1 | 52209505194 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino tartufo or Individual full leather, tartufo |
VATQ=Yes VBTQ=Yes |
|||||||||
| 02 | Folding head restr., leather,rear cent. | TARTUFO | 1 | 52209505196 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcantara sensatec.black / blue or Leather, Vernasca, black, blue stitching |
KGNL=Yes MANL=Yes |
|||||||||
| 02 | Folding head restr., leather,rear cent. | SCHWARZ/BLAU | 1 | 52205A0C7D8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Ind.leather extended/Fiona red/black or Individual full leather, Fiona Red/black |
VAHZ=Yes VBHZ=Yes |
|||||||||
| 02 | Head restraint, leather, center | SCHWARZ/ROT | 1 | 52209505195 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching |
KHKC=Yes MAPQ=Yes |
|||||||||
| 02 | Fold.headrest, synth.leather, cen.rear | COGNAC | 1 | 52205A0C7E0 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric sensatec./ black or Sensatec perforated/black or Leather, Vernasca, black, gray stitching |
KFSW=Yes KHSW=Yes MAH7=Yes |
|||||||||
| 02 | Fold.headrest, synth.leather, cen.rear | SCHWARZ | 1 | 52205A0C7D6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 03 | Guide, headrest | OYSTER | 2 | 52205A1D394 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
KHFR=Yes KHFS=Yes |
|||||||||
| 03 | Guide, headrest | CANBERRABEIGE | 2 | 52207499577 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric sensatec./ black or Alcantara sensatec.black / blue or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather, Vernasca, cognac, gy stitching or Leather Merino ivory white or Ind.leather extended/Fiona red/black or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, Fiona Red/black or Individual full leather, tartufo |
KFSW=Yes KGNL=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAMU=Yes MANL=Yes MAPQ=Yes VAEW=Yes VAHZ=Yes VATQ=Yes VBEW=Yes VBHZ=Yes VBTQ=Yes |
|||||||||
| 03 | Guide, headrest | SCHWARZ | 2 | 52207499578 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 04 | Guide, headrest, lockable | OYSTER | 2 | 52205A1D390 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
KHFR=Yes KHFS=Yes |
|||||||||
| 04 | Guide, headrest, lockable | CANBERRABEIGE | 2 | 52207470131 | Shop at ECS Tuning | |||||
| For vehicles with Fabric sensatec./ black or Alcantara sensatec.black / blue or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather, Vernasca, cognac, gy stitching or Leather Merino ivory white or Ind.leather extended/Fiona red/black or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, Fiona Red/black or Individual full leather, tartufo |
KFSW=Yes KGNL=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAMU=Yes MANL=Yes MAPQ=Yes VAEW=Yes VAHZ=Yes VATQ=Yes VBEW=Yes VBHZ=Yes VBTQ=Yes |
|||||||||
| 04 | Guide, headrest, lockable | SCHWARZ | 2 | 52207470124 | Shop at ECS Tuning | |||||
| For vehicles with Leather Vernasca/ oyster dec.stitching |
MAOI=Yes |
|||||||||
| 05 | Guide, head restraint, center, locking | OYSTER | 2 | 52205A1D395 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
KHFR=Yes KHFS=Yes |
|||||||||
| 05 | Guide, head restraint, center, locking | CANBERRABEIGE | 2 | 52207499579 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric sensatec./ black or Alcantara sensatec.black / blue or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather, Vernasca, cognac, gy stitching or Leather Merino ivory white or Ind.leather extended/Fiona red/black or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, Fiona Red/black or Individual full leather, tartufo |
KFSW=Yes KGNL=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAMU=Yes MANL=Yes MAPQ=Yes VAEW=Yes VAHZ=Yes VATQ=Yes VBEW=Yes VBHZ=Yes VBTQ=Yes |
|||||||||
| 05 | Guide, head restraint, center, locking | SCHWARZ | 2 | 52207499580 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
