FR.seat, cushion & seat CVR, piping seat for BMW MINI F55 Cooper (2021)

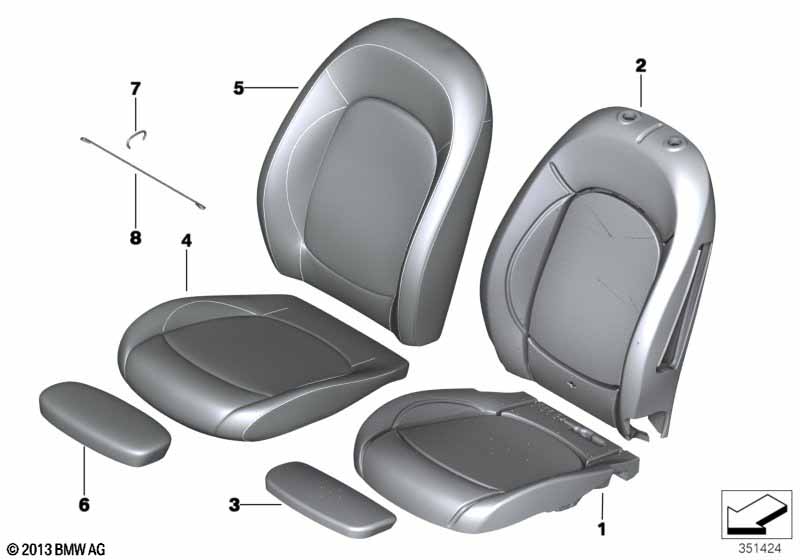

This FR.seat, cushion & seat CVR, piping seat technical drawing provides a detailed breakdown of the assembly for the MINI F55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Fabric Double Stripe/Carbon Black and Fabric/leather Diamond/Carbon Black and Fabric/leather Diamond/satellite-gray and Cloth/leather Diamond/malt-brown and Imit. leather"Leatherette"/carbon-black and Fabric/leatherette Bl.Pearl/carbon-black and Cloth/leather comb.Bl.P./light chequered and Cloth/Leatheretteko.Light Chequered(CB) and Cloth, Blue Pearl/Light Gray and Leather, Cross punch / carbon black and Leather cross punch/dark truffle |
BZE1=No FYE1=No FYGK=No FYMJ=No K9E1=No KDE1=No KDG2=No KDJK=No KDT8=No NEE1=No NENX=No |
||||||||
| For vehicles with Leather, chester/satellite gray |
NYGK=Yes |
|||||||||
| 01 | Sports seat cover leather | GRAU | 2 | 52109471419 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Chester/malt-brown |
NYMJ=Yes |
|||||||||
| 01 | Sports seat cover leather | MALT BROWN | 2 | 52107939852 | Shop at ECS Tuning | |||||
| For vehicles with MINI LOUNGE 60 Years dark maroon |
TYIH=Yes |
|||||||||
| 01 | Sports seat cover leather | DARK MAROON | 2 | 52107945028 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather 'Lounge/satellite-gray' |
T9GK=Yes |
|||||||||
| 01 | Sports seat cover leather | SATELLITE GREY | 2 | 52107939837 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours leather Lounge/carbon-black |
TYE1=Yes |
|||||||||
| 01 | Sports seat cover leather | CARBON BLACK | 2 | 52107414575 | Shop at ECS Tuning | |||||
| For vehicles with Leather, chester/satellite gray |
NYGK=Yes |
|||||||||
| 02 | Cover backrest leather left | SATELITE GREY | 1 | 52109471423 | NoS | Shop at ECS Tuning | ||||
| 02 | Leather cover sport backrest right | SATELITE GREY | 1 | 52109471424 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Chester/malt-brown |
NYMJ=Yes |
|||||||||
| 02 | Leather cover sport backrest left | MALT BROWN | 1 | 52107939845 | NoS | Shop at ECS Tuning | ||||
| 02 | Leather cover sport backrest right | MALT BROWN | 1 | 52107939846 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI LOUNGE 60 Years dark maroon |
TYIH=Yes |
|||||||||
| 02 | Cover backrest leather left | DARK MAROON | 1 | 52107945041 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | DARK MAROON | 1 | 52107945042 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather 'Lounge/satellite-gray' |
T9GK=Yes |
|||||||||
| 02 | Leather cover sport backrest left | SATELLITE GREY | 1 | 52107939821 | Shop at ECS Tuning | |||||
| 02 | Leather cover sport backrest right | SATELLITE GREY | 1 | 52107946486 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours leather Lounge/carbon-black |
TYE1=Yes |
|||||||||
| 02 | Leather cover sport backrest left | CARBON BLACK | 1 | 52107414579 | Shop at ECS Tuning | |||||
| 02 | Leather cover sport backrest right | CARBON BLACK | 1 | 52107414580 | Shop at ECS Tuning | |||||
| For vehicles with Leather, chester/satellite gray |
NYGK=Yes |
|||||||||
| 03 | Cover thigh support leather | SATELIT GRAU | 2 | 52109471379 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Chester/malt-brown |
NYMJ=Yes |
|||||||||
| 03 | Cover thigh support leather | MALT BROWN | 2 | 52107940916 | Shop at ECS Tuning | |||||
| For vehicles with MINI LOUNGE 60 Years dark maroon |
TYIH=Yes |
|||||||||
| 03 | Cover thigh support leather | DARK MARON | 2 | 52107945044 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather 'Lounge/satellite-gray' |
T9GK=Yes |
|||||||||
| 03 | Cover thigh support leather | SATELLITE GREY | 2 | 52107939801 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours leather Lounge/carbon-black |
TYE1=Yes |
|||||||||
| 03 | Cover thigh support | CARBON BLACK | 2 | 52107414583 | Shop at ECS Tuning | |||||
| with seat heating | ||||||||||
| 04 | Foam part seat in pipe form | 2 | 52107389106 | Shop at ECS Tuning | ||||||
| 05 | Foam part backr.seat in pipe form left | 1 | 52107415001 | Shop at ECS Tuning | ||||||
| 05 | Foam part backr.seat in pipe form right | 1 | 52107415002 | Shop at ECS Tuning | ||||||
| 06 | Foam pad for thigh bolster | 2 | 52107389121 | Shop at ECS Tuning | ||||||
| 07 | Wire-strap | L=1800MM | 1 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 08 | Clamp | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
