Seat, front, seat trim, manual for BMW 2 Series U06 Active Tourer 218d (2025)

This Seat, front, seat trim, manual technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.

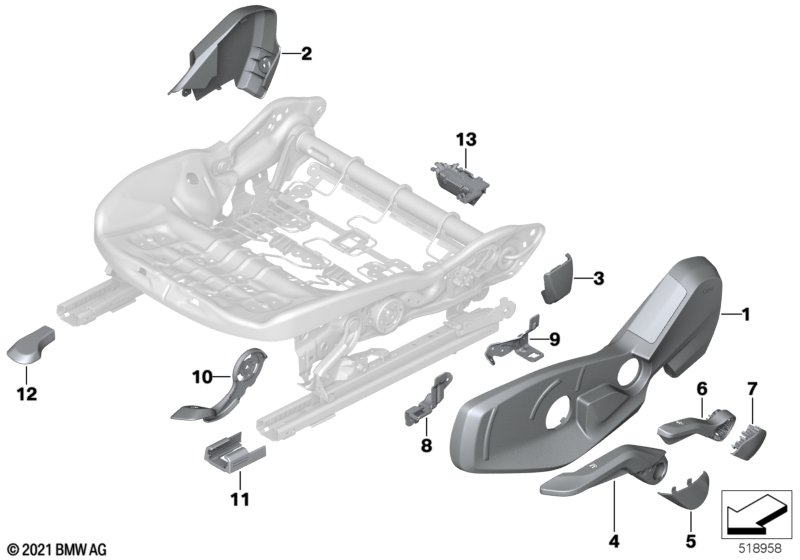

Seat, front, seat trim, manual
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Active seat for driver and passenger
and
Seat adjuster, electric, with memory
S455A=No

S459A=No
01 Trim, seat outer left SCHWARZ 1 52105A1C491 NoS Shop at ECS Tuning
For vehicles with
Active seat for driver
and
Seat adjuster, electric, with memory
S451A=Yes

S459A=No
01 Trim, seat outer left SCHWARZ 1 52105A419C3 NoS Shop at ECS Tuning
01 Trim, seat outer right SCHWARZ 1 52105A419C4 NoS Shop at ECS Tuning
For vehicles with
Active seat for driver
and
Active seat for driver and passenger
and
Seat adjuster, electric, with memory
and
Seat adjuster, electric, with memory
S451A=No

S455A=No

S459A=No

S45AA=No
01 Trim, seat outer right SCHWARZ 1 52105A1C492 NoS Shop at ECS Tuning
02 Seat trim, left inner SCHWARZ 1 52105A1C383 NoS Shop at ECS Tuning
02 Seat trim right inside SCHWARZ 1 52105A1C384 NoS Shop at ECS Tuning
03 Trim seat belt end fitting left 1 52109891833 NoS Shop at ECS Tuning
03 Trim seat belt end fitting right 1 52109891834 NoS Shop at ECS Tuning
For vehicles with
Seat adjuster, electric, with memory
S459A=No
04 Lever, seat height adjustment, left SCHWARZ 1 52105A429D5 NoS Shop at ECS Tuning
04 Lever, seat height adjustment, right SCHWARZ 1 52105A429D6 NoS Shop at ECS Tuning
05 Cover lever left SCHWARZ 1 52105A44AA5 NoS Shop at ECS Tuning
05 Cover lever right SCHWARZ 1 52105A44AA6 NoS Shop at ECS Tuning
06 Lever, backrest tilt adjustment, left SCHWARZ 1 52105A323D7 NoS Shop at ECS Tuning
06 Lever, backrest tilt adjustment, right SCHWARZ 1 52105A323D8 NoS Shop at ECS Tuning
07 Cover lever left SCHWARZ 1 52105A44AD5 NoS Shop at ECS Tuning
07 Cover lever right SCHWARZ 1 52105A44AD6 NoS Shop at ECS Tuning
08 Support for trim cover, seat, front lft 1 52109493447 NoS Shop at ECS Tuning
08 Support for trim cover, seat, front rgt 1 52109493448 NoS Shop at ECS Tuning
09 Support trim rear seat right 1 52109493450 NoS Shop at ECS Tuning
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat
S459A=No

S481A=Yes
09 Support trim rear seat left 1 52109493449 NoS Shop at ECS Tuning
10 Left seat angle adjustment SCHWARZ 1 52105A44AD1 NoS Shop at ECS Tuning
10 Right seat angle adjustment SCHWARZ 1 52105A44AD2 NoS Shop at ECS Tuning
11 Cover for seat rail 6 52109875229 NoS Shop at ECS Tuning
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat
S459A=No

S481A=Yes
12 Lever forward/back seat adjustment left SCHWARZ 1 52105A44AD3 NoS Shop at ECS Tuning
12 Lever forward/back seat adjustment right SCHWARZ 1 52105A44AD4 NoS Shop at ECS Tuning
13 Bulb support, footwell 2 52109493477 NoS Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)
