Seat, front, seat trim covers, electric for BMW 2 Series U06 Active Tourer 230eX (2025)

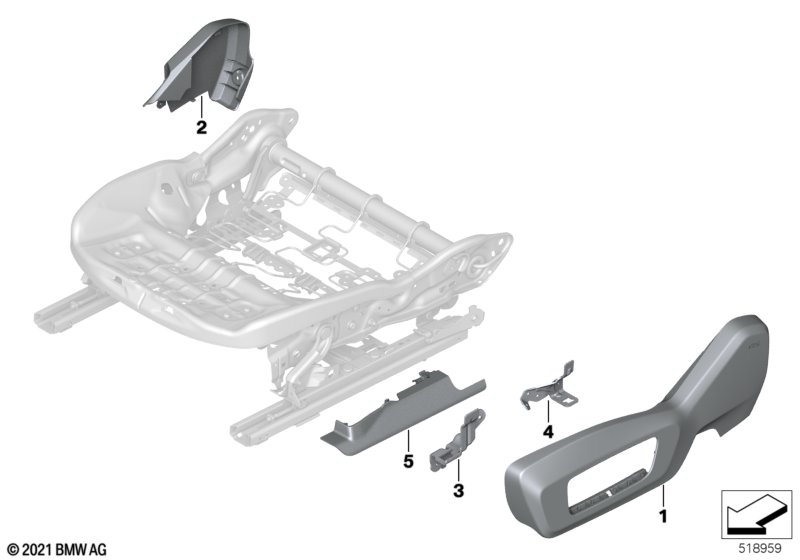

This Seat, front, seat trim covers, electric technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 230eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory and Cloth Arcturus/anthracite or Alcantara sensatec.black / blue or Sensatec perforated/oyster or Sensatec perforated/Mocha or Sensatec perforated/black or Leather Vernasca/oyster or Leather Vernasca/mocca or Leather Vernasca black |
S459A=Yes BLAT=Yes KGNL=Yes KHCX=Yes KHMY=Yes KHSW=Yes MACX=Yes MAMY=Yes MASW=Yes |
|||||||||
| 01 | Trim, seat outer right | SCHWARZ | 1 | 52105A1C496 | NoS | Shop at ECS Tuning | ||||
| 01 | Trim, seat outer left | SCHWARZ | 1 | 52105A1C4A1 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Seat adjuster, electric, with memory and Cloth Arcturus/anthracite or Alcantara sensatec.black / blue or Sensatec perforated/oyster or Sensatec perforated/Mocha or Sensatec perforated/black or Leather Vernasca/oyster or Leather Vernasca/mocca or Leather Vernasca black |
S459A=Yes S45AA=Yes BLAT=Yes KGNL=Yes KHCX=Yes KHMY=Yes KHSW=Yes MACX=Yes MAMY=Yes MASW=Yes |
|||||||||
| 01 | Trim, seat outer left | SCHWARZ | 1 | 52105A1C495 | Shop at ECS Tuning | |||||
| 01 | Trim, seat outer right | SCHWARZ | 1 | 52105A1C4A2 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Seat adjuster, electric, with memory and Cloth Arcturus/anthracite or Alcantara sensatec.black / blue or Sensatec perforated/oyster or Sensatec perforated/Mocha or Sensatec perforated/black or Leather Vernasca/oyster or Leather Vernasca/mocca or Leather Vernasca black |
S459A=Yes S45AA=No BLAT=Yes KGNL=Yes KHCX=Yes KHMY=Yes KHSW=Yes MACX=Yes MAMY=Yes MASW=Yes |
|||||||||
| 01 | Trim, seat outer left | SCHWARZ | 1 | 52105A1C495 | Shop at ECS Tuning | |||||
| 01 | Trim, seat outer right | SCHWARZ | 1 | 52105A1C4A2 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Seat adjuster, electric, with memory and Cloth Arcturus/anthracite or Alcantara sensatec.black / blue or Sensatec perforated/oyster or Sensatec perforated/Mocha or Sensatec perforated/black or Leather Vernasca/oyster or Leather Vernasca/mocca or Leather Vernasca black |
S459A=No S45AA=Yes BLAT=Yes KGNL=Yes KHCX=Yes KHMY=Yes KHSW=Yes MACX=Yes MAMY=Yes MASW=Yes |
|||||||||
| 01 | Trim, seat outer left | SCHWARZ | 1 | 52105A1C495 | NoS | Shop at ECS Tuning | ||||
| 01 | Trim, seat outer right | SCHWARZ | 1 | 52105A1C4A2 | NoS | Shop at ECS Tuning | ||||
| 02 | Seat trim, left inner | SCHWARZ | 1 | 52105A1C383 | NoS | Shop at ECS Tuning | ||||
| 02 | Seat trim right inside | SCHWARZ | 1 | 52105A1C384 | NoS | Shop at ECS Tuning | ||||
| 03 | Support for trim cover, seat, front lft | 1 | 52109493447 | NoS | Shop at ECS Tuning | |||||
| 03 | Support for trim cover, seat, front rgt | 1 | 52109493448 | NoS | Shop at ECS Tuning | |||||
| 04 | Support trim rear seat left | 1 | 52109493449 | NoS | Shop at ECS Tuning | |||||
| 04 | Support trim rear seat right | 1 | 52109493450 | NoS | Shop at ECS Tuning | |||||
| 05 | Finisher, upper rail, exterior, left | SCHWARZ | 1 | 52105A1C4A5 | NoS | Shop at ECS Tuning | ||||
| 05 | Finisher, upper rail, front, right | SCHWARZ | 1 | 52105A1C4A6 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
