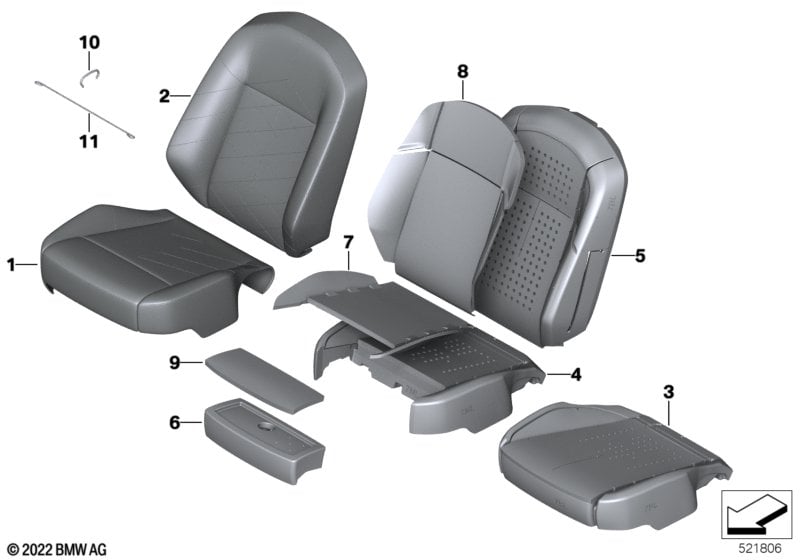

Seat front, uphlstry/cover, Comfort seat for BMW 7 Series G70 735i (2025)
This Seat front, uphlstry/cover, Comfort seat technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Executive Lounge Seating or Multifunction seat driver and passenger |
S4F4A=Yes S4FMA=Yes |
||||||||
| For vehicles with Executive Lounge Seating and Leath.Merino/Wk lux.Smoke White/lt.gy |
S4F4A=Yes VEII=Yes |
|||||||||
| 01 | Cover comfort seat leather left | RAUCHWEISS/GRAU | 1 | 52107886223 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover comfort seat leather right | RAUCHWEISS/GRAU | 1 | 52107886224 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating or Multifunction seat driver and passenger and BMW Individual leather Tartufo or BMW Ind.leather w/lux.leather Tartufo |
S4F4A=Yes S4FMA=Yes VCTQ=Yes VDTQ=Yes |
|||||||||
| 01 | Cover comfort seat leather left | TARTUFO | 1 | 52105A437A1 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover comfort seat leather right | TARTUFO | 1 | 52105A437A2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating or Multifunction seat driver and passenger and BMW Individual leather Smoke White or BMW Ind.leather w/lux.leather Smoke Wh. |
S4F4A=Yes S4FMA=Yes VCFU=Yes VDFU=Yes |
|||||||||
| 01 | Cover comfort seat leather left | RAUCHWEISS | 1 | 52105A43793 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover comfort seat leather right | RAUCHWEISS | 1 | 52105A43794 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating or Multifunction seat driver and passenger and BMW Individual leather mocha or BMW Indiv.leather w/lux.leather mocha |
S4F4A=Yes S4FMA=Yes VCMY=Yes VDMY=Yes |
|||||||||
| 01 | Cover comfort seat leather left | MOKKA | 1 | 52105A43795 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover comfort seat leather right | MOKKA | 1 | 52105A43796 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating or Multifunction seat driver and passenger and BMW Individual leather F2 Amarone or BMW Ind.leather w/lux.F2 Amarone |
S4F4A=Yes S4FMA=Yes VCF2=Yes VDF2=Yes |
|||||||||
| 01 | Cover comfort seat leather left | AMARONE | 1 | 52105A43791 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover comfort seat leather right | AMARONE | 1 | 52105A43792 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating or Multifunction seat driver and passenger and Leather Merino black/Atlas gray or BMW Individual leather black or BMW Ind. leather w/luxury leather black |
S4F4A=Yes S4FMA=Yes VCJL=Yes VCSW=Yes VDSW=Yes |
|||||||||
| 01 | Cover comfort seat leather left | SCHWARZ | 1 | 52105A43797 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover comfort seat leather right | SCHWARZ | 1 | 52105A43798 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Leather Veganza cognac |
S453A=No S4F4A=No S4FMA=Yes S4T7A=No KVRI=Yes |
|||||||||
| 01 | Cover, comfort seat, art. leather, left | COGNAC | 1 | 52105A43833 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover, comfort seat. art. leather, right | COGNAC | 1 | 52105A43834 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Leather Veganza mocha |
S453A=No S4F4A=No S4FMA=Yes S4T7A=No KVMY=Yes |
|||||||||
| 01 | Cover, comfort seat, art. leather, left | MOKKA | 1 | 52105A43831 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover, comfort seat. art. leather, right | MOKKA | 1 | 52105A43832 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Leather Veganza black/burgundy or Leather Veganza black |
S453A=No S4F4A=No S4FMA=Yes S4T7A=No KVJY=Yes KVSW=Yes |
|||||||||
| 01 | Cover, comfort seat, art. leather, left | SCHWARZ | 1 | 52105A43835 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover, comfort seat. art. leather, right | SCHWARZ | 1 | 52105A43836 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Leath.Merino/Wk lux.Smoke White/lt.gy |
S4F4A=Yes VEII=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather left | RAUCHWEISS/GRAU | 1 | 52107886225 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest comfort seat leather R | RAUCHWEISS/GRAU | 1 | 52107886226 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and Leather Merino black/Atlas gray |
S4F4A=No S4FMA=Yes VCJL=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather left | SCHWARZ/GRAU | 1 | 52108087469 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest comfort seat leather R | SCHWARZ/GRAU | 1 | 52108087470 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Leath.Merino/Wk lux.Smoke White/lt.gy |
S230A=Yes S4F4A=Yes VEII=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | RAUCHWEISS/GRAU | 1 | 52107886230 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza black/burgundy |
S4F4A=No S4FMA=No KVJY=Yes |
|||||||||
| 02 | Cover comfort backrest syn.leather left | SCHWARZ/ROT | 1 | 52105A44625 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza black |
S4F4A=No S4FMA=No KVSW=Yes |
|||||||||
| 02 | Cover comfort backrest syn.leather left | SCHWARZ | 1 | 52105A437A7 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Leath.Merino/Wk lux.Smoke White/lt.gy |
S230A=No S4F4A=Yes VEII=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | RAUCHWEISS/GRAU | 1 | 52107886228 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza mocha |
S4F4A=No S4FMA=No KVMY=Yes |
|||||||||
| 02 | Cover comfort backrest syn.leather left | MOKKA | 1 | 52105A437A3 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza cognac |
S4F4A=No S4FMA=No KVRI=Yes |
|||||||||
| 02 | Cover comfort backrest syn.leather left | COGNAC | 1 | 52105A437A5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather mocha or BMW Indiv.leather w/lux.leather mocha |
S4F4A=Yes S4FMA=Yes VCMY=Yes VDMY=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather left | MOKKA | 1 | 52105A43807 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza cognac |
S230A=No S4F4A=No S4FMA=No KVRI=Yes |
|||||||||
| 02 | Backrest cover artificial leather right | COGNAC | 1 | 52105A437A6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza mocha |
S230A=No S4F4A=No S4FMA=No KVMY=Yes |
|||||||||
| 02 | Backrest cover artificial leather right | MOKKA | 1 | 52105A437A4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Multifunction seat driver and passenger and BMW Individual leather Smoke White or BMW Ind.leather w/lux.leather Smoke Wh. |
S230A=No S4FMA=Yes VCFU=Yes VDFU=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | RAUCHWEISS | 1 | 52105A437D4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza black |
S230A=No S4F4A=No S4FMA=No KVSW=Yes |
|||||||||
| 02 | Backrest cover artificial leather right | SCHWARZ | 1 | 52105A437A8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Multifunction seat driver and passenger and BMW Individual leather black or BMW Ind. leather w/luxury leather black |
S230A=No S4FMA=Yes VCSW=Yes VDSW=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | SCHWARZ | 1 | 52105A437D8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza black |
S230A=Yes S4F4A=No S4FMA=No KVSW=Yes |
|||||||||
| 02 | Backrest cover artificial leather right | SCHWARZ | 1 | 52105A437B6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather F2 Amarone or BMW Ind.leather w/lux.F2 Amarone |
S4F4A=Yes S4FMA=Yes VCF2=Yes VDF2=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather left | AMARONE | 1 | 52105A43803 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Multifunction seat driver and passenger and BMW Individual leather mocha or BMW Indiv.leather w/lux.leather mocha |
S230A=No S4FMA=Yes VCMY=Yes VDMY=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | MOKKA | 1 | 52105A437D6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather black or BMW Ind. leather w/luxury leather black |
S4F4A=Yes S4FMA=Yes VCSW=Yes VDSW=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather left | SCHWARZ | 1 | 52105A43811 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Multifunction seat driver and passenger and BMW Individual leather Tartufo or BMW Ind.leather w/lux.leather Tartufo |
S230A=No S4FMA=Yes VCTQ=Yes VDTQ=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | TARTUFO | 1 | 52105A437E2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Multifunction seat driver and passenger and BMW Individual leather F2 Amarone or BMW Ind.leather w/lux.F2 Amarone |
S230A=No S4FMA=Yes VCF2=Yes VDF2=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | AMARONE | 1 | 52105A437D2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza mocha |
S230A=Yes S4F4A=No S4FMA=No KVMY=Yes |
|||||||||
| 02 | Backrest cover artificial leather right | MOKKA | 1 | 52105A437B2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza black/burgundy |
S230A=No S4F4A=No S4FMA=No KVJY=Yes |
|||||||||
| 02 | Cover comfort backrest syn.leathr right | SCHWARZ/ROT | 1 | 52105A44626 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza black/burgundy |
S230A=Yes S4F4A=No S4FMA=No KVJY=Yes |
|||||||||
| 02 | Backrest cover artificial leather right | SCHWARZ/ROT | 1 | 52105A44628 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather Tartufo or BMW Ind.leather w/lux.leather Tartufo |
S4F4A=Yes S4FMA=Yes VCTQ=Yes VDTQ=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather left | TARTUFO | 1 | 52105A43813 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and Leather Merino black/Atlas gray |
S230A=Yes S4F4A=No S4FMA=Yes VCJL=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | SCHWARZ/GRAU | 1 | 52108087480 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza cognac |
S230A=Yes S4F4A=No S4FMA=No KVRI=Yes |
|||||||||
| 02 | Backrest cover artificial leather right | COGNAC | 1 | 52105A437B4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather Smoke White or BMW Ind.leather w/lux.leather Smoke Wh. |
S4F4A=Yes S4FMA=Yes VCFU=Yes VDFU=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather left | RAUCHWEISS | 1 | 52105A43805 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather black or BMW Ind. leather w/luxury leather black |
S230A=Yes S4F4A=Yes S4FMA=Yes VCSW=Yes VDSW=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | SCHWARZ | 1 | 52105A437F4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather Smoke White or BMW Ind.leather w/lux.leather Smoke Wh. |
S230A=Yes S4F4A=Yes S4FMA=Yes VCFU=Yes VDFU=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | RAUCHWEISS | 1 | 52105A437E8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather black or BMW Ind. leather w/luxury leather black |
S230A=Yes S4F4A=No S4FMA=Yes VCSW=Yes VDSW=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather left | SCHWARZ | 1 | 52105A437D7 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather Tartufo or BMW Ind.leather w/lux.leather Tartufo |
S230A=Yes S4F4A=No S4FMA=Yes VCTQ=Yes VDTQ=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather left | TARTUFO | 1 | 52105A437E1 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather F2 Amarone or BMW Ind.leather w/lux.F2 Amarone |
S230A=Yes S4F4A=No S4FMA=Yes VCF2=Yes VDF2=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather left | AMARONE | 1 | 52105A437D1 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather F2 Amarone or BMW Ind.leather w/lux.F2 Amarone |
S230A=Yes S4F4A=Yes S4FMA=Yes VCF2=Yes VDF2=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | AMARONE | 1 | 52105A437E6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather Tartufo or BMW Ind.leather w/lux.leather Tartufo |
S230A=Yes S4F4A=Yes S4FMA=Yes VCTQ=Yes VDTQ=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | TARTUFO | 1 | 52105A437F6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather Smoke White or BMW Ind.leather w/lux.leather Smoke Wh. |
S230A=Yes S4F4A=No S4FMA=Yes VCFU=Yes VDFU=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather left | RAUCHWEISS | 1 | 52105A437D3 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather mocha or BMW Indiv.leather w/lux.leather mocha |
S230A=Yes S4F4A=Yes S4FMA=Yes VCMY=Yes VDMY=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | MOKKA | 1 | 52105A437F2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather mocha or BMW Indiv.leather w/lux.leather mocha |
S230A=Yes S4F4A=No S4FMA=Yes VCMY=Yes VDMY=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather left | MOKKA | 1 | 52105A437D5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Leather Veganza black |
S230A=No S453A=No S4F4A=No S4FMA=Yes S4T7A=No KVSW=Yes |
|||||||||
| 02 | Backrest cover artificial leather left | SCHWARZ | 1 | 52105A43821 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest cover artificial leather right | SCHWARZ | 1 | 52105A43822 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Leather Veganza mocha |
S230A=No S453A=No S4F4A=No S4FMA=Yes S4T7A=No KVMY=Yes |
|||||||||
| 02 | Backrest cover artificial leather left | MOKKA | 1 | 52105A43815 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest cover artificial leather right | MOKKA | 1 | 52105A43816 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Leather Veganza black/burgundy |
S230A=No S453A=No S4F4A=No S4FMA=Yes S4T7A=No KVJY=Yes |
|||||||||
| 02 | Backrest cover artificial leather left | SCHWARZ/ROT | 1 | 52105A44631 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest cover artificial leather right | SCHWARZ/ROT | 1 | 52105A44632 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Leather Veganza cognac |
S230A=No S453A=No S4F4A=No S4FMA=Yes S4T7A=No KVRI=Yes |
|||||||||
| 02 | Backrest cover artificial leather left | COGNAC | 1 | 52105A43817 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest cover artificial leather right | COGNAC | 1 | 52105A43818 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Leather Veganza cognac |
L802A=Yes S230A=Yes S453A=No S4F4A=No S4FMA=Yes S4T7A=No KVRI=Yes |
|||||||||
| 02 | Backrest cover artificial leather left | COGNAC | 1 | 52105A43825 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Leather Veganza black |
L802A=Yes S230A=Yes S453A=No S4F4A=No S4FMA=Yes S4T7A=No KVSW=Yes |
|||||||||
| 02 | Backrest cover artificial leather left | SCHWARZ | 1 | 52105A43827 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest cover artificial leather right | SCHWARZ | 1 | 52105A43828 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Leather Veganza mocha |
L802A=Yes S230A=Yes S453A=No S4F4A=No S4FMA=Yes S4T7A=No KVMY=Yes |
|||||||||
| 02 | Backrest cover artificial leather left | MOKKA | 1 | 52105A43823 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Leather Veganza black/burgundy |
L802A=Yes S230A=Yes S453A=No S4F4A=No S4FMA=Yes S4T7A=No KVJY=Yes |
|||||||||
| 02 | Backrest cover artificial leather left | SCHWARZ/ROT | 1 | 52105A44633 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest cover artificial leather right | SCHWARZ/ROT | 1 | 52105A44634 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Multifunction seat driver and passenger |
S4FMA=No |
|||||||||
| 03 | Foam element, Comfort seat, left | 1 | 52105A68491 | NoS | Shop at ECS Tuning | |||||
| 03 | Foam pad comfort seat right | 1 | 52105A68492 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Multifunction seat driver and passenger |
S453A=Yes S4FMA=Yes |
|||||||||
| 04 | Foam part comfort seat left | 1 | 52105A68495 | NoS | Shop at ECS Tuning | |||||
| 04 | Foam part comfort seat right | 1 | 52105A68496 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Multifunction seat driver and passenger |
S453A=No S4FMA=Yes |
|||||||||
| 04 | Foam part comfort seat left | 1 | 52105A68493 | NoS | Shop at ECS Tuning | |||||
| 04 | Foam part comfort seat right | 1 | 52105A68494 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Bowers & Wilkins High End Sound System Including massage mat |
S453A=Yes S4F4A=Yes S4FMA=Yes S4T7A=Yes S6F1A=Yes |
|||||||||
| 05 | Foam part comfort backrest left | 1 | 52105A684C3 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Bowers & Wilkins High End Sound System Including massage mat |
S453A=Yes S4F4A=Yes S4FMA=Yes S4T7A=Yes S6F1A=No |
|||||||||
| 05 | Foam part comfort backrest left | 1 | 52105A684C1 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Bowers & Wilkins High End Sound System Including massage mat |
S230A=Yes S453A=Yes S4F4A=Yes S4FMA=Yes S4T7A=Yes S6F1A=No |
|||||||||
| 05 | Foam part comfort backrest right | 1 | 52105A684B2 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Bowers & Wilkins High End Sound System Including massage mat |
S230A=Yes S453A=Yes S4F4A=No S4FMA=Yes S4T7A=Yes S6F1A=No |
|||||||||
| 05 | Foam part comfort backrest right | 1 | 52105A684B4 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Bowers & Wilkins High End Sound System Including massage mat |
S230A=Yes S453A=Yes S4F4A=No S4FMA=Yes S4T7A=Yes S6F1A=Yes |
|||||||||
| 05 | Foam part comfort backrest right | 1 | 52105A684B8 | NoS | Shop at ECS Tuning | |||||
| 05 | Foam part comfort backrest right | 1 | 52105A684B6 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Bowers & Wilkins High End Sound System Including massage mat |
L802A=No S230A=No S453A=Yes S4F4A=Yes S4FMA=Yes S4T7A=Yes S6F1A=Yes |
|||||||||
| 05 | Foam part comfort backrest left | 1 | 52105A684B5 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger |
S453A=Yes S4F4A=Yes S4FMA=Yes |
|||||||||
| 06 | Foam pad for thigh bolster | 2 | 52105A12176 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Executive Lounge Seating and Multifunction seat driver and passenger |
S453A=No S4F4A=Yes S4FMA=Yes |
|||||||||
| 06 | Foam pad for thigh bolster | 2 | 52109871901 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Multifunction seat driver and passenger |
S453A=Yes S4FMA=Yes |
|||||||||
| 07 | Interlayer seat right | 1 | 52105A0ABD6 | NoS | Shop at ECS Tuning | |||||
| 07 | Interlayer seat left | 1 | 52106927198 | NoS | Shop at ECS Tuning | |||||
| 08 | Pad for backrest | 2 | 52106927199 | NoS | Shop at ECS Tuning | |||||
| 09 | Thigh support interlayer | 2 | 52105A12178 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Climate-controlled seats, front and Executive Lounge Seating and Massage function, driver / fr. passenger and Bowers & Wilkins High End Sound System |
S230A=Yes S453A=Yes S4F4A=No S4T7A=Yes S6F1A=Yes |
|||||||||
| 10 | Wire-strap | L=1800MM | 1 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 11 | Clamp | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 735i Seat front, uphlstry/cover, Comfort seat?
- This technical diagram illustrates the Seat front, uphlstry/cover, Comfort seat within the Seats group for the 7 Series G70 735i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Cover comfort seat leather left (Part #52107886223).
- Which models use the hardware listed in this Seat front, uphlstry/cover, Comfort seat?
- The hardware and components featured in the Seat front, uphlstry/cover, Comfort seat are specific to the 7 Series G70 735i produced during 2025. These technical specifications ensure that parts like the Cover comfort seat leather left (52107886223) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat front, uphlstry/cover, Comfort seat assembly?
- Each item in the Seat front, uphlstry/cover, Comfort seat corresponds to the numbered list below the illustration. For the 7 Series G70 735i, you can identify the Cover comfort seat leather left by locating its position on the schematic, which then links to the official BMW part number 52107886223 for the Seats section.
