Seat, front, backrest frame for BMW 7 Series G70 750eX (2025)

This Seat, front, backrest frame technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.

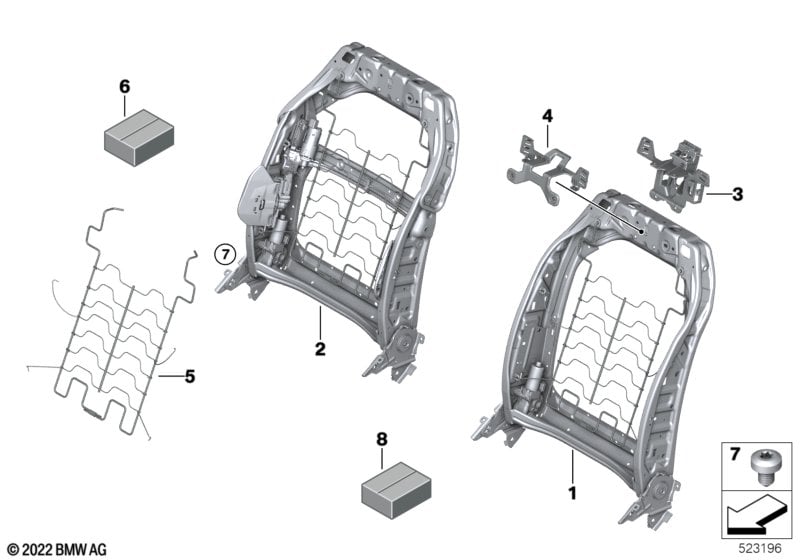

Seat, front, backrest frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Executive Lounge Seating
and
Multifunction seat driver and passenger
S4F4A=No

S4FMA=No
01 Backrest frame basic seat 2 52109891046 NoS Shop at ECS Tuning
For vehicles with
Executive Lounge Seating
S4F4A=Yes
02 Backrest frame, Comfort seat, right 1 52109891048 NoS Shop at ECS Tuning
02 Backrest frame, Comfort seat, left 1 52109891049 Shop at ECS Tuning
For vehicles with
Executive Lounge Seating
and
Multifunction seat driver and passenger
S4F4A=No

S4FMA=Yes
02 Backrest frame, Comfort seat, left 2 52109891049 NoS Shop at ECS Tuning
For vehicles with
Travel & Comfort Rail System
S4FLA=Yes
03 Holder 2 52105A36CF7 NoS Shop at ECS Tuning
04 Holder plug connection 2 52106927355 NoS Shop at ECS Tuning
05 Spring mat backrest frame 1 52105A47D29 NoS Shop at ECS Tuning
06 Attachment set spring mat 1 52105A47D40 NoS Shop at ECS Tuning
07 Countersunk screw M10X16-8.8 SW 4 07119908419 Shop at ECS Tuning
08 Heater element, base seat 1 52109462980 NoS Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)
