Seat front, upholstery & cover base seat for BMW 7 Series G70 740iX (2025)

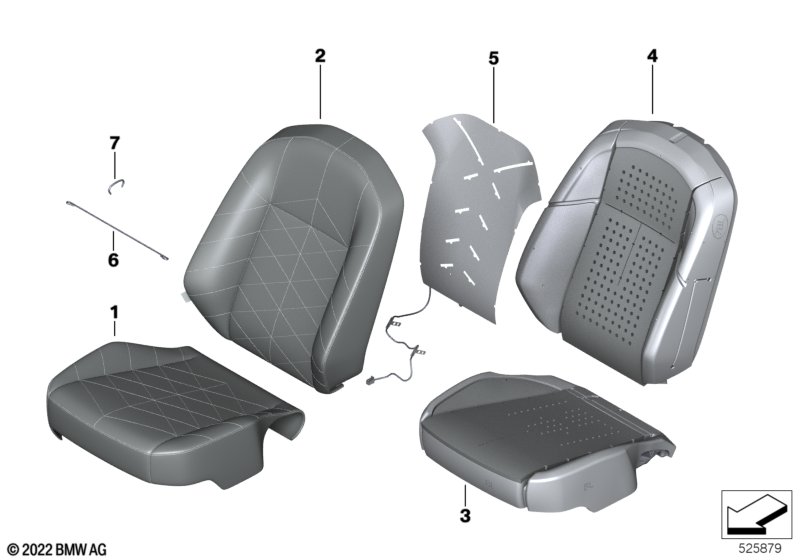

This Seat front, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger |
S4F4A=No S4FMA=No |
||||||||
| For vehicles with Executive Lounge Seating and Leath.Merino/Wk lux.Smoke White/lt.gy |
S4F4A=Yes VEII=Yes |
|||||||||
| 01 | Cover comfort seat leather left | RAUCHWEISS/GRAU | 1 | 52107886223 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover comfort seat leather right | RAUCHWEISS/GRAU | 1 | 52107886224 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza cognac |
S4F4A=No S4FMA=No KVRI=Yes |
|||||||||
| 01 | Cover basic seat artificial leather left | COGNAC | 1 | 52105A43781 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover basic seat artificial leather R | COGNAC | 1 | 52105A43782 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza mocha |
S4F4A=No S4FMA=No KVMY=Yes |
|||||||||
| 01 | Cover basic seat artificial leather left | MOKKA | 1 | 52105A43777 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover basic seat artificial leather R | MOKKA | 1 | 52105A43778 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza black/burgundy or Leather Veganza black |
S4F4A=No S4FMA=No KVJY=Yes KVSW=Yes |
|||||||||
| 01 | Cover basic seat artificial leather left | SCHWARZ | 1 | 52105A43783 | NoS | Shop at ECS Tuning | ||||
| 01 | Cover basic seat artificial leather R | SCHWARZ | 1 | 52105A43784 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Leath.Merino/Wk lux.Smoke White/lt.gy |
S4F4A=Yes VEII=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | RAUCHWEISS/GRAU | 1 | 52107886226 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza black/burgundy |
S4F4A=No S4FMA=No KVJY=Yes |
|||||||||
| 02 | Cover comfort backrest syn.leather left | SCHWARZ/ROT | 1 | 52105A44625 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover comfort backrest syn.leathr right | SCHWARZ/ROT | 1 | 52105A44626 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza cognac |
S4F4A=No S4FMA=No KVRI=Yes |
|||||||||
| 02 | Cover comfort backrest syn.leather left | COGNAC | 1 | 52105A437A5 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest cover artificial leather right | COGNAC | 1 | 52105A437A6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza mocha |
S4F4A=No S4FMA=No KVMY=Yes |
|||||||||
| 02 | Cover comfort backrest syn.leather left | MOKKA | 1 | 52105A437A3 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest cover artificial leather right | MOKKA | 1 | 52105A437A4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and Leather Veganza black |
S4F4A=No S4FMA=No KVSW=Yes |
|||||||||
| 02 | Cover comfort backrest syn.leather left | SCHWARZ | 1 | 52105A437A7 | NoS | Shop at ECS Tuning | ||||
| 02 | Backrest cover artificial leather right | SCHWARZ | 1 | 52105A437A8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather F2 Amarone or BMW Ind.leather w/lux.F2 Amarone |
S4F4A=Yes S4FMA=Yes VCF2=Yes VDF2=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | AMARONE | 1 | 52105A43804 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather mocha or BMW Indiv.leather w/lux.leather mocha |
S4F4A=Yes S4FMA=Yes VCMY=Yes VDMY=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | MOKKA | 1 | 52105A43808 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather black or BMW Ind. leather w/luxury leather black |
S4F4A=Yes S4FMA=Yes VCSW=Yes VDSW=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | SCHWARZ | 1 | 52105A43812 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather Tartufo or BMW Ind.leather w/lux.leather Tartufo |
S4F4A=Yes S4FMA=Yes VCTQ=Yes VDTQ=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | TARTUFO | 1 | 52105A43814 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and BMW Individual leather Smoke White or BMW Ind.leather w/lux.leather Smoke Wh. |
S4F4A=Yes S4FMA=Yes VCFU=Yes VDFU=Yes |
|||||||||
| 02 | Cover backrest comfort seat leather R | RAUCHWEISS | 1 | 52105A43806 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Multifunction seat driver and passenger |
S4FMA=No |
|||||||||
| 03 | Foam pad comfort seat right | PODS | 1 | 52105A4D212 | NoS | Shop at ECS Tuning | ||||
| 03 | Foam element, Comfort seat, left | 1 | 52105A68491 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Multifunction seat driver and passenger and Massage function, driver / fr. passenger and Bowers & Wilkins High End Sound System |
S453A=No S4FMA=No S4T7A=No S6F1A=No |
|||||||||
| 04 | Foam part comfort backrest left | 1 | 52106927941 | NoS | Shop at ECS Tuning | |||||
| 04 | Foam part basic, backrest right | 1 | 52106927942 | NoS | Shop at ECS Tuning | |||||
| 05 | Heating element backrest | 1 | 52106927190 | Shop at ECS Tuning | ||||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger |
S4F4A=No S4FMA=No |
|||||||||
| 05 | Heating element backrest | 2 | 52106927190 | NoS | Shop at ECS Tuning | |||||
| 06 | Wire-strap | L=1800MM | 1 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 07 | Clamp | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
