Seat, front, head restraint for BMW 5 Series G60 Sedan 540dX (2025)

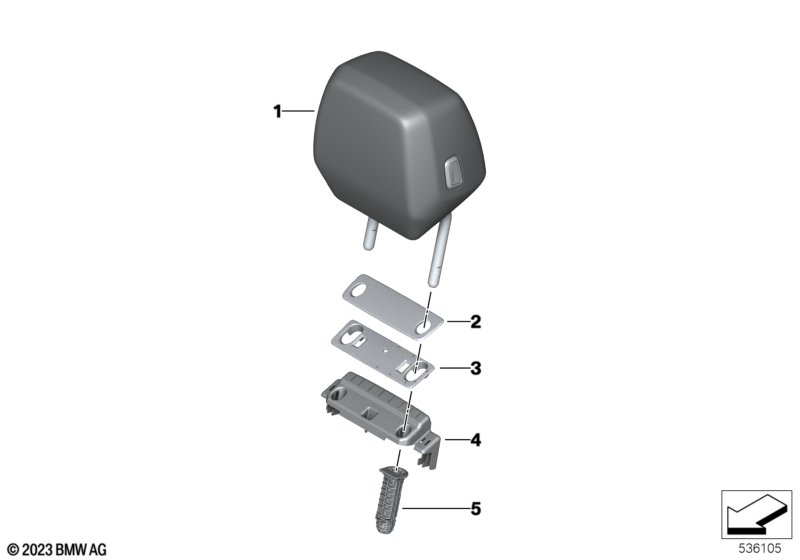

This Seat, front, head restraint technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.

Seat, front, head restraint
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
  Comfort seat with memory
  and
  M multifunction seat
and
Veganza perf./stepped espresso-brown
S456A=No

S4MAA=No

KSJX=Yes
01 Head restraint artificial leather BRAUN 2 52105A53530 NoS Shop at ECS Tuning
For vehicles with
  Comfort seat with memory
  and
  M multifunction seat
and
Alcant./Veganza comb. black
S456A=No

S4MAA=No

KTSW=Yes
01 Head restraint artificial leather SCHWARZ/BLAU 2 52107887241 NoS Shop at ECS Tuning
For vehicles with
  Comfort seat with memory
  and
  M multifunction seat
and
Leather Merino black/Atlas gray
S456A=No

S4MAA=No

VCJL=Yes
01 Head restraint leather SCHWARZ/GRAU 2 52105A53540 NoS Shop at ECS Tuning
For vehicles with
  Comfort seat with memory
  and
  M multifunction seat
and
Veganza perf./stepped burgundy
S456A=No

S4MAA=No

KSJU=Yes
01 Head restraint artificial leather BURGUNDY 2 52105A53529 NoS Shop at ECS Tuning
For vehicles with
  Comfort seat with memory
  and
  M multifunction seat
and
Leather Merino copper-brown/atlas-gray
S456A=No

S4MAA=No

VCJM=Yes
01 Head restraint leather BRAUN/GRAU 2 52105A53549 NoS Shop at ECS Tuning
For vehicles with
  Comfort seat with memory
  and
  M multifunction seat
and
Veganza perf./stepped smoke-white
S456A=No

S4MAA=No

KSFU=Yes
01 Head restraint artificial leather RAUCHWEISS 2 52105A53524 NoS Shop at ECS Tuning
For vehicles with
  Comfort seat with memory
  and
  M multifunction seat
and
Leather Merino silverstone II/atlas-gray
S456A=No

S4MAA=No

VCJN=Yes
01 Head restraint leather SIVERSTONE/GRAU 2 52105A53550 NoS Shop at ECS Tuning
For vehicles with
  Comfort seat with memory
  and
  M multifunction seat
and
  Veganza perf./stepped black
  or
  VEGANZA PERFORATED BLACK
S456A=No

S4MAA=No

KSSW=Yes

KUSW=Yes
01 Head restraint artificial leather SCHWARZ 2 52105A53539 NoS Shop at ECS Tuning
For vehicles with
  Comfort seat with memory
  and
  M multifunction seat
and
Veganza perf./stepped smoke-white
S456A=No

S4MAA=No

KSFU=Yes
02 Head rest cover RAUCHWEISS 2 52105A54B46 NoS Shop at ECS Tuning
For vehicles with
  Comfort seat with memory
  and
  M multifunction seat
and
  Leather Merino copper-brown/atlas-gray
  or
  Leather Merino silverstone II/atlas-gray
S456A=No

S4MAA=No

VCJM=Yes

VCJN=Yes
02 Head rest cover ATLASGRAU 2 52105A54B45 NoS Shop at ECS Tuning
For vehicles with
  Comfort seat with memory
  and
  M multifunction seat
and
  Veganza perf./stepped burgundy
  or
  Veganza perf./stepped espresso-brown
  or
  Veganza perf./stepped black
  or
  Alcant./Veganza comb. black
  or
  VEGANZA PERFORATED BLACK
  or
  Leather Merino black/Atlas gray
S456A=No

S4MAA=No

KSJU=Yes

KSJX=Yes

KSSW=Yes

KTSW=Yes

KUSW=Yes

VCJL=Yes
02 Head rest cover SCHWARZ 2 52105A54B47 NoS Shop at ECS Tuning
For vehicles with
Comfort seat with memory
and
M multifunction seat
S456A=No

S4MAA=No
03 Cover, head restraint guide 2 52105A17920 NoS Shop at ECS Tuning
04 Support, backrest 2 52105A63E04 NoS Shop at ECS Tuning
05 Head restraint guide 4 52105A178F3 NoS Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)
