Seat, front, seat frame for BMW 5 Series G60 Sedan 530i (2025)

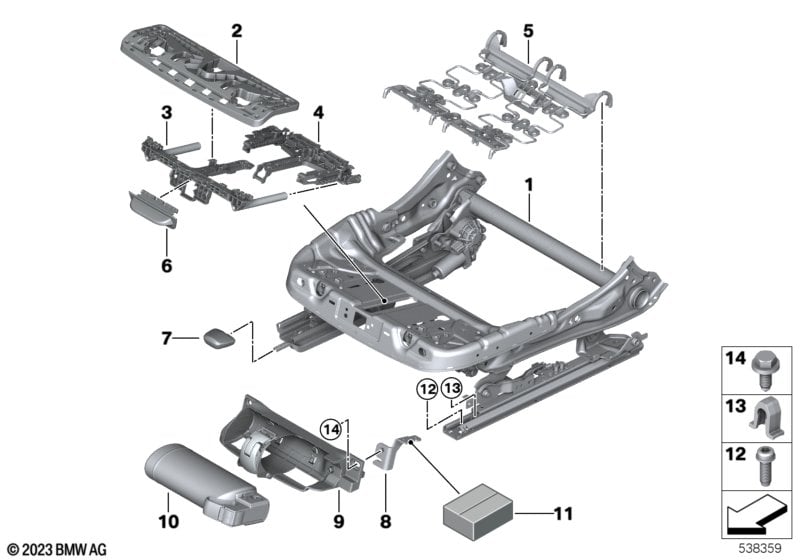

This Seat, front, seat frame technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Comfort seat with memory and M multifunction seat |
S456A=Yes S4MAA=Yes |
|||||||||
| 01 | Seat frame, comfort seat, left | 1 | 52105A48581 | Shop at ECS Tuning | ||||||
| 01 | Seat frame comfort seat right | 1 | 52105A48582 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and M multifunction seat |
S456A=Yes S4MAA=No |
|||||||||
| 01 | Seat frame, comfort seat, left | 1 | 52105A48581 | Shop at ECS Tuning | ||||||
| 01 | Seat frame comfort seat right | 1 | 52105A48582 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and M multifunction seat |
S456A=No S4MAA=Yes |
|||||||||
| 01 | Seat frame, comfort seat, left | 1 | 52105A48581 | NoS | Shop at ECS Tuning | |||||
| 01 | Seat frame comfort seat right | 1 | 52105A48582 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=No S459A=No S4MAA=No |
|||||||||
| 01 | Seat frame, left | 1 | 52109891033 | NoS | Shop at ECS Tuning | |||||
| 01 | Seat frame right | 1 | 52109891034 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S453A=No S456A=No S459A=Yes S4MAA=No |
|||||||||
| 01 | Seat frame, electrical, right | 1 | 52105A48574 | Shop at ECS Tuning | ||||||
| 01 | Seat frame, electrical, left | 1 | 52109891035 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S453A=Yes S456A=No S459A=Yes S4MAA=No |
|||||||||
| 01 | Seat frame, electrical, left | 1 | 52105A48573 | NoS | Shop at ECS Tuning | |||||
| 01 | Seat frame, electrical, right | 1 | 52105A48574 | NoS | Shop at ECS Tuning | |||||
| 02 | Carrier thigh support | 2 | 52109891059 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and M multifunction seat |
S456A=No S4MAA=No |
|||||||||
| 03 | Mechanism, thigh bolster, lower | 2 | 52109891044 | NoS | Shop at ECS Tuning | |||||
| 04 | Mechanism, thigh bolster, upper | 2 | 52109891043 | NoS | Shop at ECS Tuning | |||||
| 05 | Suspension panel | 2 | 52109891032 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and M multifunction seat |
S456A=No S4MAA=No |
|||||||||
| 06 | Handle for thigh bolster | 2 | 52105A17900 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=No S459A=No S4MAA=No |
|||||||||
| 07 | Lever, frw/back seat adjust | 2 | 52105A178F2 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fire extinguisher |
S421A=Yes |
|||||||||
| 08 | Holder fire extinguisher left | 1 | 52109891063 | NoS | Shop at ECS Tuning | |||||
| 08 | Holder fire extinguisher right | 1 | 52109891064 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fire extinguisher and Country control Indonesia |
S421A=Yes S8LKA=Yes |
|||||||||
| 09 | Holder fire extinguisher | 1 | 52105A4FC69 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fire extinguisher and Country control Indonesia |
S421A=Yes S8LKA=No |
|||||||||
| 10 | Fire extinguisher | 1 | 52106927424 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fire extinguisher and Country control Indonesia |
S421A=Yes S8LKA=Yes |
|||||||||
| 10 | Fire extinguisher | 1 | 52105A4FC60 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fire extinguisher |
S421A=Yes |
|||||||||
| 11 | Screw kit, seat | 1 | 52105A4D066 | NoS | Shop at ECS Tuning | |||||
| 12 | Fillister-head screw | M10X28 | 8 | 07149321690 | Shop at ECS Tuning | |||||
| 13 | Stop seat rail | 30MM | 2 | 52105A36AF6 | NoS | Shop at ECS Tuning | ||||
| 13 | Stop seat rail | 10MM | 2 | 52105A37529 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fire extinguisher |
S421A=Yes |
|||||||||
| 14 | Hex bolt with washer | M8X18 | 2 | 07147279964 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
