Seat, front, seat trim covers, electric for BMW 4 Series G22 Coupé LCI 420d (2025)

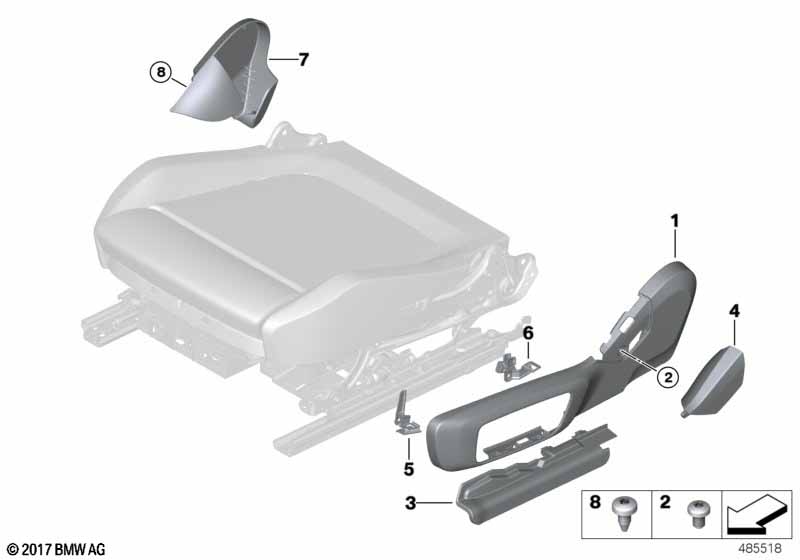

This Seat, front, seat trim covers, electric technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé LCI 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and Cloth Black M PerformTex with M piping or Sensatec perforated/Canberra beige or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca Black / Accent Red or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather Merino ivory white or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, tartufo |
S459A=Yes S4FHA=Yes EPMI=Yes KHFY=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAH7=Yes MAL3=Yes MAMU=Yes MANL=Yes MAOI=Yes VAEW=Yes VATQ=Yes VBEW=Yes VBTQ=Yes |
|||||||||
| 01 | Trim for seat outer electric left | SCHWARZ | 1 | 52109870707 | Shop at ECS Tuning | |||||
| 01 | Trim seat outer electric right | SCHWARZ | 1 | 52109870708 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and Cloth Black M PerformTex with M piping or Sensatec perforated/Canberra beige or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca Black / Accent Red or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather Merino ivory white or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, tartufo |
S459A=Yes S4FHA=No EPMI=Yes KHFY=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAH7=Yes MAL3=Yes MAMU=Yes MANL=Yes MAOI=Yes VAEW=Yes VATQ=Yes VBEW=Yes VBTQ=Yes |
|||||||||
| 01 | Trim for seat outer electric left | SCHWARZ | 1 | 52109870707 | Shop at ECS Tuning | |||||
| 01 | Trim seat outer electric right | SCHWARZ | 1 | 52109870708 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and Cloth Black M PerformTex with M piping or Sensatec perforated/Canberra beige or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca Black / Accent Red or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather Merino ivory white or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, tartufo |
S459A=No S4FHA=Yes EPMI=Yes KHFY=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAH7=Yes MAL3=Yes MAMU=Yes MANL=Yes MAOI=Yes VAEW=Yes VATQ=Yes VBEW=Yes VBTQ=Yes |
|||||||||
| 01 | Trim for seat outer electric left | SCHWARZ | 1 | 52109870707 | NoS | Shop at ECS Tuning | ||||
| 01 | Trim seat outer electric right | SCHWARZ | 1 | 52109870708 | NoS | Shop at ECS Tuning | ||||
| 02 | Fillister head screw | M6X10 | 2 | 07149156955 | Shop at ECS Tuning | |||||
| For vehicles with Cloth Black M PerformTex with M piping or Sensatec perforated/Canberra beige or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca Black / Accent Red or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather Merino ivory white or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, tartufo |
EPMI=Yes KHFY=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAH7=Yes MAL3=Yes MAMU=Yes MANL=Yes MAOI=Yes VAEW=Yes VATQ=Yes VBEW=Yes VBTQ=Yes |
|||||||||
| 03 | Finisher, upper rail, exterior, left | SCHWARZ | 1 | 52107493663 | Shop at ECS Tuning | |||||
| 03 | Finisher, upper rail, exterior, right | SCHWARZ | 1 | 52107493664 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and Cloth Black M PerformTex with M piping or Sensatec perforated/Canberra beige or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca Black / Accent Red or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather Merino ivory white or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, tartufo |
S459A=Yes S4FHA=Yes EPMI=Yes KHFY=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAH7=Yes MAL3=Yes MAMU=Yes MANL=Yes MAOI=Yes VAEW=Yes VATQ=Yes VBEW=Yes VBTQ=Yes |
|||||||||
| 04 | Cover, trim, seat, outer left | SCHWARZ | 1 | 52109870693 | Shop at ECS Tuning | |||||
| 04 | Cover, trim, seat, outer right | SCHWARZ | 1 | 52109870694 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and Cloth Black M PerformTex with M piping or Sensatec perforated/Canberra beige or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca Black / Accent Red or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather Merino ivory white or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, tartufo |
S459A=Yes S4FHA=No EPMI=Yes KHFY=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAH7=Yes MAL3=Yes MAMU=Yes MANL=Yes MAOI=Yes VAEW=Yes VATQ=Yes VBEW=Yes VBTQ=Yes |
|||||||||
| 04 | Cover, trim, seat, outer left | SCHWARZ | 1 | 52109870693 | Shop at ECS Tuning | |||||
| 04 | Cover, trim, seat, outer right | SCHWARZ | 1 | 52109870694 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation and Cloth Black M PerformTex with M piping or Sensatec perforated/Canberra beige or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca Black / Accent Red or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather Merino ivory white or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, tartufo |
S459A=No S4FHA=Yes EPMI=Yes KHFY=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAH7=Yes MAL3=Yes MAMU=Yes MANL=Yes MAOI=Yes VAEW=Yes VATQ=Yes VBEW=Yes VBTQ=Yes |
|||||||||
| 04 | Cover, trim, seat, outer left | SCHWARZ | 1 | 52109870693 | NoS | Shop at ECS Tuning | ||||
| 04 | Cover, trim, seat, outer right | SCHWARZ | 1 | 52109870694 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation |
S459A=Yes S4FHA=Yes |
|||||||||
| 05 | Support for trim cover, seat, front lft | 1 | 52107433525 | Shop at ECS Tuning | ||||||
| 05 | Support for trim cover, seat, front rgt | 1 | 52107433526 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation |
S459A=Yes S4FHA=No |
|||||||||
| 05 | Support for trim cover, seat, front lft | 1 | 52107433525 | Shop at ECS Tuning | ||||||
| 05 | Support for trim cover, seat, front rgt | 1 | 52107433526 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation |
S459A=No S4FHA=Yes |
|||||||||
| 05 | Support for trim cover, seat, front lft | 1 | 52107433525 | Shop at ECS Tuning | ||||||
| 05 | Support for trim cover, seat, front rgt | 1 | 52107433526 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation |
S459A=Yes S4FHA=Yes |
|||||||||
| 06 | Support for cov.pan.of seat center left | 1 | 52107432461 | Shop at ECS Tuning | ||||||
| 06 | Support for cov.pan.of seat center right | 1 | 52107432462 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation |
S459A=Yes S4FHA=No |
|||||||||
| 06 | Support for cov.pan.of seat center left | 1 | 52107432461 | Shop at ECS Tuning | ||||||
| 06 | Support for cov.pan.of seat center right | 1 | 52107432462 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat with active ventilation |
S459A=No S4FHA=Yes |
|||||||||
| 06 | Support for cov.pan.of seat center left | 1 | 52107432461 | Shop at ECS Tuning | ||||||
| 06 | Support for cov.pan.of seat center right | 1 | 52107432462 | Shop at ECS Tuning | ||||||
| For vehicles with Seat with active ventilation and M Sports seats and Cloth Black M PerformTex with M piping or Sensatec perforated/Canberra beige or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca Black / Accent Red or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather Merino ivory white or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, tartufo |
S4FHA=Yes S711A=Yes EPMI=Yes KHFY=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAH7=Yes MAL3=Yes MAMU=Yes MANL=Yes MAOI=Yes VAEW=Yes VATQ=Yes VBEW=Yes VBTQ=Yes |
|||||||||
| 07 | Seat trim, left inner | SCHWARZ | 1 | 52106993159 | Shop at ECS Tuning | |||||
| 07 | Seat trim right inside | SCHWARZ | 1 | 52106993160 | Shop at ECS Tuning | |||||
| For vehicles with Seat with active ventilation and M Sports seats and Cloth Black M PerformTex with M piping or Sensatec perforated/Canberra beige or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca Black / Accent Red or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather Merino ivory white or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, tartufo |
S4FHA=Yes S711A=No EPMI=Yes KHFY=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAH7=Yes MAL3=Yes MAMU=Yes MANL=Yes MAOI=Yes VAEW=Yes VATQ=Yes VBEW=Yes VBTQ=Yes |
|||||||||
| 07 | Seat trim, left inner | SCHWARZ | 1 | 52106993159 | Shop at ECS Tuning | |||||
| 07 | Seat trim right inside | SCHWARZ | 1 | 52106993160 | Shop at ECS Tuning | |||||
| For vehicles with Seat with active ventilation and M Sports seats and Cloth Black M PerformTex with M piping or Sensatec perforated/Canberra beige or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec perforated/black or Leather, Vernasca, black, gray stitching or Leather Vernasca Black / Accent Red or Leather Vernasca/mocca decor.stitching or Leather, Vernasca, black, blue stitching or Leather Vernasca/ oyster dec.stitching or Leather Merino ivory white or Leather Merino tartufo or Individual full leather, ivory white or Individual full leather, tartufo |
S4FHA=No S711A=Yes EPMI=Yes KHFY=Yes KHG7=Yes KHKC=Yes KHSW=Yes MAH7=Yes MAL3=Yes MAMU=Yes MANL=Yes MAOI=Yes VAEW=Yes VATQ=Yes VBEW=Yes VBTQ=Yes |
|||||||||
| 07 | Seat trim, left inner | SCHWARZ | 1 | 52106993159 | NoS | Shop at ECS Tuning | ||||
| 07 | Seat trim right inside | SCHWARZ | 1 | 52106993160 | NoS | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | M5X10-ZNNID SW | 2 | 07146777838 | $0.36 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
