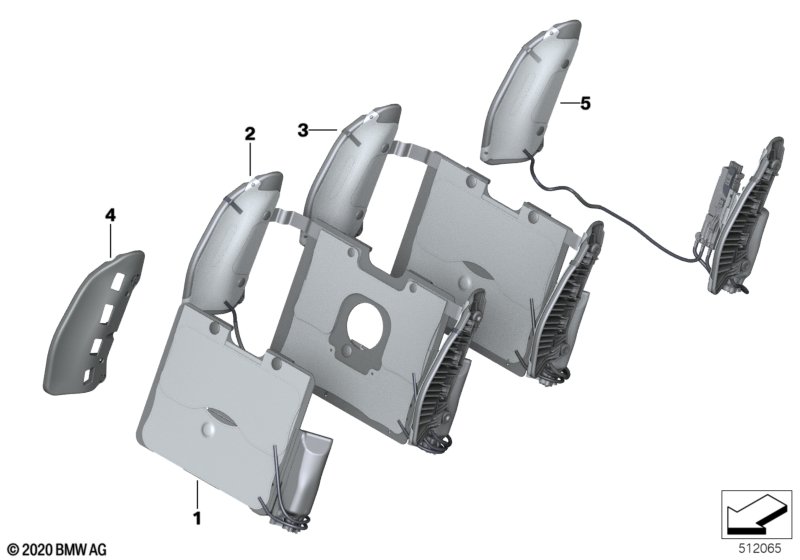

Seat, front, comfort functions for BMW 4 Series G22 Coupé LCI 420d (2025)
This Seat, front, comfort functions technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé LCI 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Lumbar support, driver and passenger and Seat with active ventilation and M Sports seats |
S488A=Yes S4FHA=Yes S711A=No |
|||||||||
| 01 | Lumbar support pad with pump | 2 | 52107463868 | Shop at ECS Tuning | ||||||
| For vehicles with Lumbar support, driver and passenger and Backrest width adjustment driver and Seat with active ventilation and M Sports seats |
S488A=Yes S491A=No S4FHA=No S711A=No |
|||||||||
| 01 | Lumbar support pad with pump | 2 | 52107418338 | Shop at ECS Tuning | ||||||
| For vehicles with Lumbar support, driver and passenger and Backrest width adjustment driver and Seat with active ventilation and M Sports seats |
S488A=Yes S491A=Yes S4FHA=No S711A=No |
|||||||||
| 01 | Lumbar support pad with pump | 1 | 52107418338 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports seats |
S711A=Yes |
|||||||||
| 02 | Backrest width adjustment | 2 | 52107468673 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Lumbar support, driver and passenger and Backrest width adjustment driver and Seat with active ventilation and M Sports seats |
S459A=No S488A=Yes S491A=Yes S4FHA=No S711A=No |
|||||||||
| 03 | Backrest width adjustment | 1 | 52107418340 | Shop at ECS Tuning | ||||||
| For vehicles with Backrest width adjustment driver and Seat with active ventilation |
S491A=No S4FHA=No |
|||||||||
| 04 | Supporting plate, left | 2 | 52107431796 | Shop at ECS Tuning | ||||||
| For vehicles with Backrest width adjustment driver and Seat with active ventilation and M Sports seats |
S491A=Yes S4FHA=No S711A=No |
|||||||||
| 04 | Supporting plate, left | 1 | 52107431796 | Shop at ECS Tuning | ||||||
| 04 | Supporting plate, right | 1 | 52107468674 | Shop at ECS Tuning | ||||||
| For vehicles with Backrest width adjustment driver and Seat with active ventilation and M Sports seats |
S491A=No S4FHA=No S711A=No |
|||||||||
| 04 | Supporting plate, left | 2 | 52107431796 | Shop at ECS Tuning | ||||||
| 04 | Supporting plate, right | 2 | 52107468674 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Lumbar support, driver and passenger and Backrest width adjustment driver and Seat with active ventilation and M Sports seats |
S459A=Yes S488A=No S491A=Yes S4FHA=No S711A=No |
|||||||||
| 05 | Backrest width adjuster with valve | 1 | 52109471691 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Lumbar support, driver and passenger and Backrest width adjustment driver and Seat with active ventilation and M Sports seats |
S459A=No S488A=No S491A=Yes S4FHA=No S711A=No |
|||||||||
| 05 | Backrest width adjuster with valve | 1 | 52107418339 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
